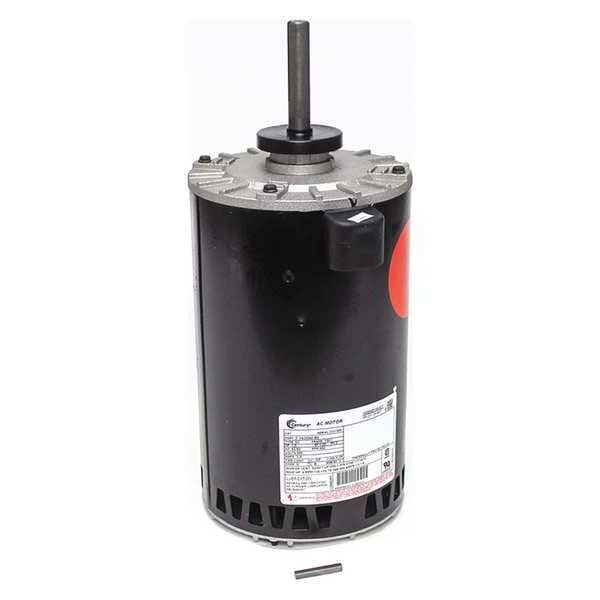

Motor, 1 HP, 460V, 850 rpm with Plug
| Voltage | 460V AC |
|---|---|
| Item | Motor, 1 HP, 460V, 850 rpm with Plug |
| Includes | Wire Harness Plug |
| HP | 1 hp |
| Motor Service Factor | 1 |
| Motor Mounting Type | Screw |
| Phase | Three |
| Overall Length | 14-7/8 in |
| Motor Shaft Rotation | CW |
| Shaft Dia. | 5/8 in |
| RPM Range | 0-1,000 |
| Full Load Amps | 2.4 |
| Ins. Class | B |
| Motor Enclosure Design | Open Drip Proof |
| Motor Bearings | Ball |
| Nameplate RPM | 850 |
| Voltage Compatibility | 460V AC |
| Motor Design | 3-Phase |
| Shaft Length | 3-1/2 in |
| Max. Ambient Temp. | 140 deg F |
| Full Load Amps @ 50Hz | 2.4 A |
| HP @ 50Hz | 1 hp |
| Voltage @ 50Hz | 460 |
| Service Factor @ 50Hz | 1 |
| Motor Mounting Position | Vertical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
