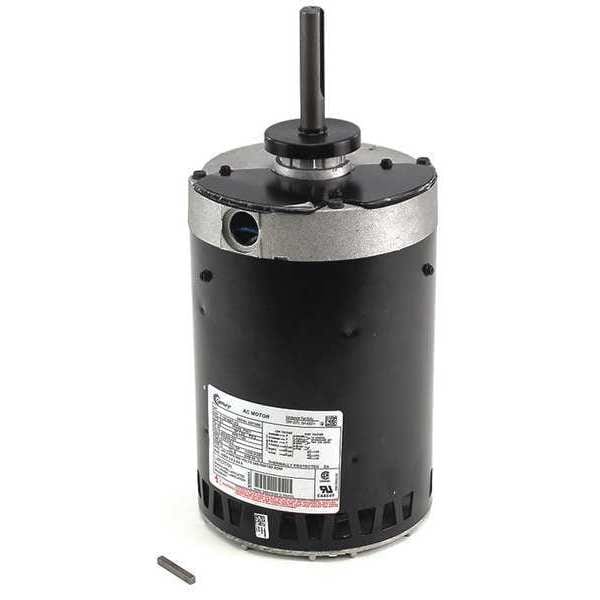

Motor, 1.5 HP, 200/460V, 1140 rpm
| Voltage | 200/460V AC |
|---|---|
| Item | Motor, 1.5 HP, 200/460V, 1140 rpm |
| Nameplate RPM | 1140 |
| HP | 1 1/2 hp |
| Shaft Dia. | 5/8 in |
| No. of Speeds | 1 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Bearings | Ball |
| Frame | 56 |
| Shaft Length | 3-1/2 in |
| RPM Range | 1,101-1,200 |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW, CCW |
| Motor Design | 3-Phase |
| Full Load Amps | 6 |
| Overall Length | 13-15/16 in |
| Voltage Compatibility | 200V AC, 460V AC |
| Ins. Class | B |
| Phase | Three |
| Usable @ 200V | Usable at 200V |
| Motor Mounting Position | Vertical |
| Full Load Amps @ 50Hz | 6 A |
| Weight | 30 lb |
| HP @ 50Hz | 1 1/2 hp |
| Service Factor @ 50Hz | 1 |
| Voltage @ 50Hz | 200 |
| Max. Ambient Temp. | 140 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
