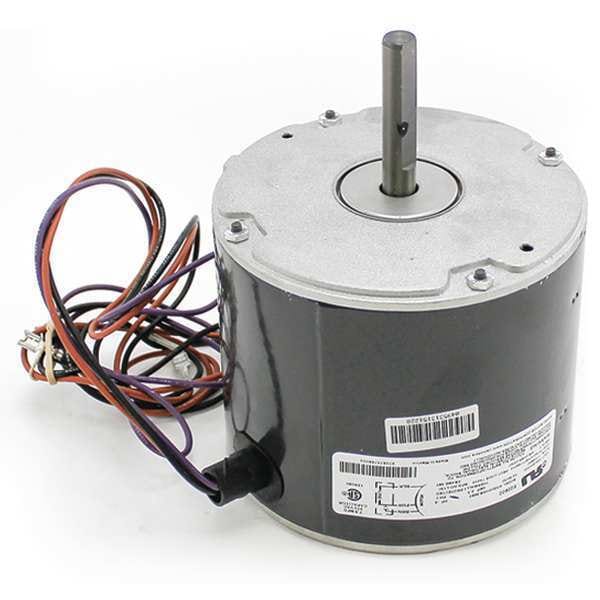

Motor, 2/5HP, 208-230V, 60/50Hz, 1115/950rpm
| Voltage | 200-230V AC |
|---|---|
| Item | Motor, 2/5 HP, 208-230V, 60/50 Hz, 1115/950 rpm |
| Shaft Dia. | 1/2 in |
| HP | 1/3 hp |
| Ins. Class | B, F |
| Motor Shaft Rotation | CCW |
| Shaft Length | 2-1/2 in |
| No. of Speeds | 2 |
| Motor Bearings | Sleeve |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Design | 1-Phase |
| Overall Length | 8-1/8 in |
| Phase | Single |
| Full Load Amps | 2.5 |
| Voltage Compatibility | 200V AC, 230V AC |
| Frame | 48 |
| Motor Service Factor | 1 |
| Nameplate RPM | 1120 |
| RPM Range | 1,101-1,200 |
| Motor Mounting Position | Vertical Shaft Down |
| Weight | 13.5 lb |
| Usable @ 200V | Usable at 200V |
| Max. Ambient Temp. | 149 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
