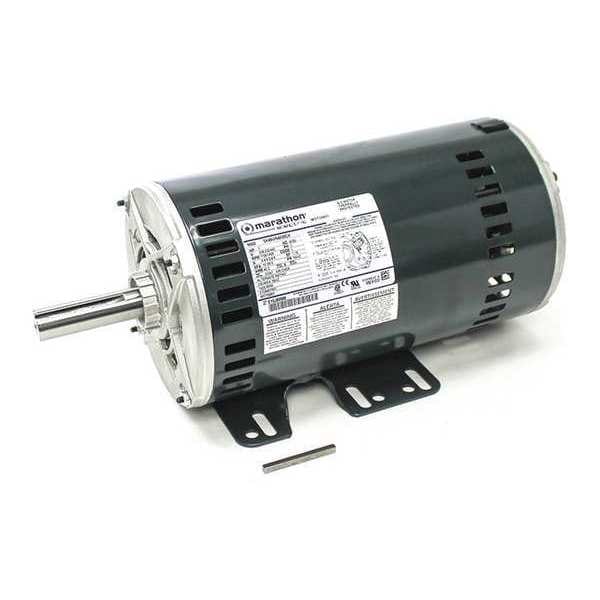

Motor, 3 HP, 208-230/460V, 1740 rpm
| Voltage | 208-230/460V AC |
|---|---|
| Item | Motor, 3 HP, 208-230/460V, 1740 rpm |
| RPM Range | 1,701-1,800 |
| Full Load Amps | 9.4 |
| Motor Shaft Rotation | CCW |
| Frame | 56HZ |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Drip Proof |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Motor Mounting Type | Base |
| Nameplate RPM | 1,740/1,450 |
| Phase | Three |
| HP | 3 hp |
| Overall Length | 15-13/16 in |
| Voltage Compatibility | 208V AC, 230V AC, 460V AC |
| Usable @ 208V | 208V, Usable |
| Max. Ambient Temp. | 140 deg F |
| Service Factor @ 50Hz | 1.15 |
| Weight | 45.3 lb |
| Duty Cycle | Continuous |
| Nominal Efficiency | 83.8% |
| Full Load Amps @ 50Hz | 9.4 A |
| HP @ 50Hz | 3 hp |
| Voltage @ 50Hz | 208-230 |
| Motor Mounting Position | Horizontal Shaft Down |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
