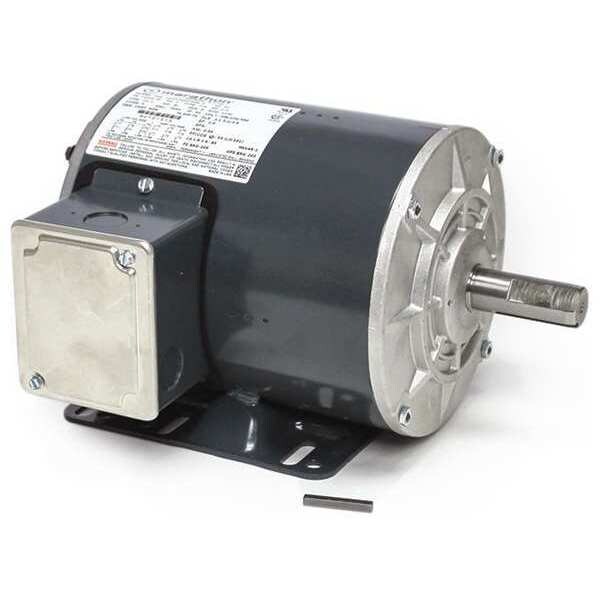

Motor, 3/4 HP, 230-460V, 3 Phase, 1200 rpm
| Voltage | 208-230/460V AC |
|---|---|
| Item | Motor, 3/4 HP, 230-460V, 3 Phase, 1200 rpm |
| Motor Mounting Type | Base |
| Shaft Dia. | 7/8 in |
| Nameplate RPM | 1200 |
| Phase | Three |
| Motor Shaft Rotation | Reversible |
| Voltage Compatibility | 208V AC, 230V AC, 460V AC |
| Full Load Amps | 3.2 |
| RPM Range | 1,101-1,200 |
| HP | 3/4 hp |
| Ins. Class | B |
| Overall Length | 12-9/16 in |
| Motor Service Factor | 1.15 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Design | 3-Phase |
| Motor Bearings | Ball |
| Duty Cycle | Continuous |
| Usable @ 208V | 208V, Usable |
| Conduit Box Position | F1 |
| Nominal Efficiency | 74% |
| Weight | 70 lb |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
