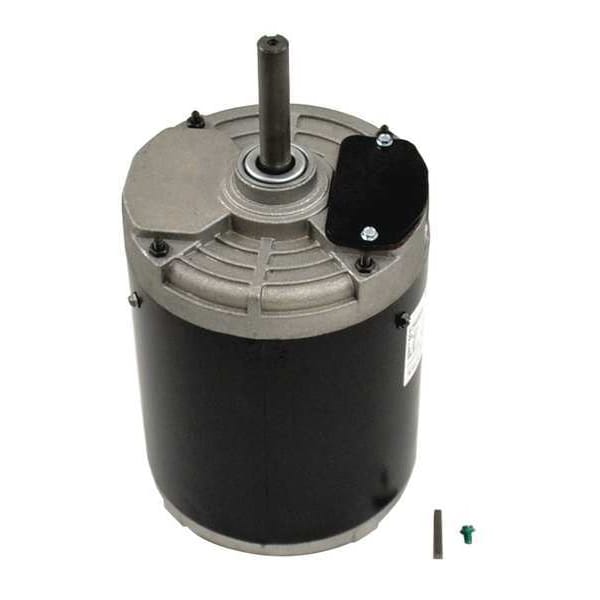

Motor, 460V, 1 HP, 1140 rpm
| Item | Motor |
|---|---|
| Voltage | 460V AC |
| Fits Brand | Trane |
| Motor Mounting Position | Vertical |
| Motor Shaft Rotation | CCW |
| Voltage Compatibility | 460V AC |
| Shaft Dia. | 5/8 in |
| Motor Design | 3-Phase |
| Nameplate RPM | 1140 |
| Motor Enclosure Design | Open Drip Proof |
| Motor Service Factor | 1 |
| Full Load Amps | 1.8 A |
| Ins. Class | B, F1 |
| Phase | Three |
| Nominal Efficiency | 75% |
| Motor Bearings | Ball |
| Compatible Brand | Trane |
| Max. Ambient Temp. | 158 deg F |
| RPM Range | 1,101 to 1,200 |
| HP | 1 hp |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
