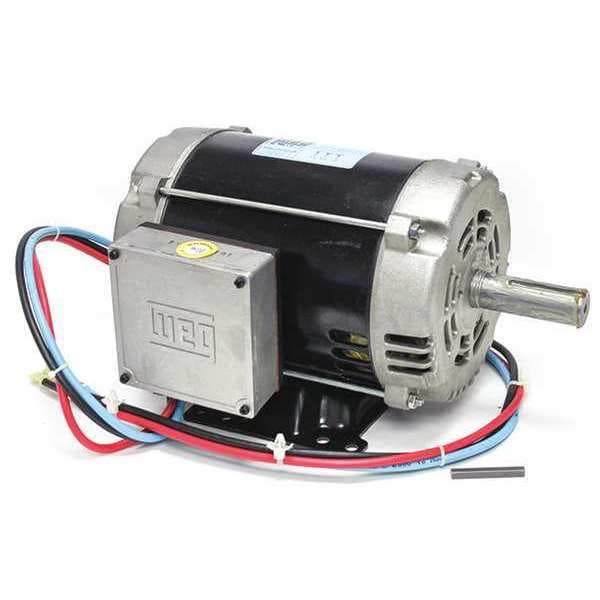

Motor, 7.5 HP, 208-230V, 3475 rpm
| Voltage | 208/230V AC |
|---|---|
| Item | Motor, 7.5 HP ,208-230V, 3475 rpm |
| Motor Design | 3-Phase |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW, CCW |
| Nameplate RPM | 3475 |
| Shaft Dia. | 1-1/8 in |
| Ins. Class | B |
| Motor Bearings | Ball |
| Overall Length | 16-3/4 in |
| Motor Enclosure Design | Open Drip Proof |
| RPM Range | 3,001-3,600 |
| Voltage Compatibility | 208V AC, 230V AC |
| HP | 7 1/2 hp |
| Phase | Three |
| Motor Mounting Type | Base |
| Usable @ 208V | 208V, Usable |
| Weight | 88 lb |
| Voltage @ 50Hz | 208-230 |
| Max. Ambient Temp. | 104 deg F |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Service Factor @ 50Hz | 1.15 |
| HP @ 50Hz | 7 3/4 hp |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
