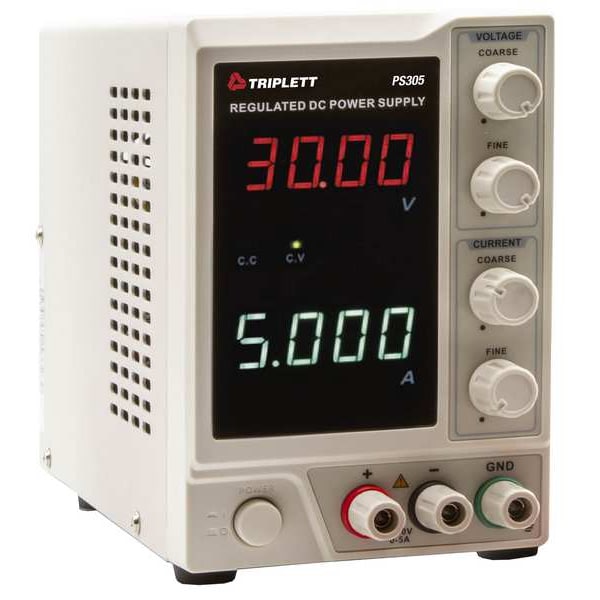

AC to DC Power Supply, 110/220V AC, 30V DC, 160W, 5A
| Item | AC to DC Power Supply |
|---|---|
| Input Voltage | 110/220V AC |
| Output Voltage | 30V DC |
| Power Rating | 160 W |
| Output Amps | 5 A |
| Height | 8.3 in |
| Width | 4.1 in |
| Depth | 6.1 in |
| Hz | 50/60 Hz |
| Display | 4 Digit LED |
| Line Regulation | Less Than 0.1% 3mA |
| Meter Type | Digital |
| Calibration Certificate | Available Separately |
| Standards | CE, RoHS |
| Manufacturers Warranty Length | 1 yr |
| Line Volts Regulation | Less Than 0.01% 3mV |
| Connection | Banana Plug |
| Ripple Volts Regulation | Less Than or Equal 2mVrms |
| Current Limits | Constant Current Operation |
| Protection | Fused Temperature, Short Circuit and Overload |
| Includes | AC Power Cord, Alligator Test Leads |
| Load Regulation | Less Than 0.01% 5mV; Less Than 0.1% 10mA |
| Number of Display Digits | 4 |
| Calibration Certificate Type | Not Certified |
| Ripple Voltage Regulation | 2 mVrms |
| Current Output - Maximum | 5 A |
| Load Regulation Current | Less Than 0.1% + 10mA |
| Line Regulation Current | Less Than 0.1% + 3 mA |
| Line Regulation Voltage | Less Than 0.01% + 3mV |
| Number of Displays | 2 |
| Current Output - Minimum | 0 A |
| Load Regulation Voltage | Less Than 0.01% + 5 mV |
| Interface | Not Applicable |
| Package Quantity | 1 |
