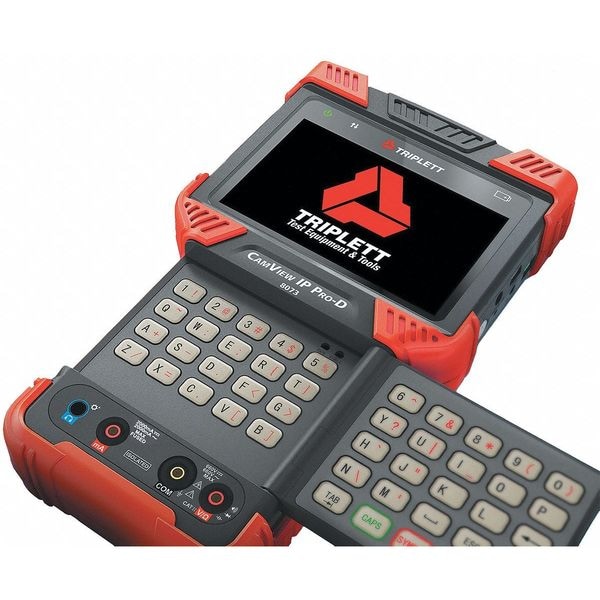

Camera Tester, 7-1/2" H, TFT Color Display
| Item | IP and HD Camera Tester |
|---|---|
| Camera Inputs | 1 |
| Color | Black, Red |
| Input Type | BNC, RJ45, RS485 |
| Width | 4-1/4 in |
| Depth | 1-3/8 in |
| Characteristics | Multi-Purpose Security Camera Tester |
| Features | Generate Video Test Patterns for Monitor Checking |
| Body Material | Plastic |

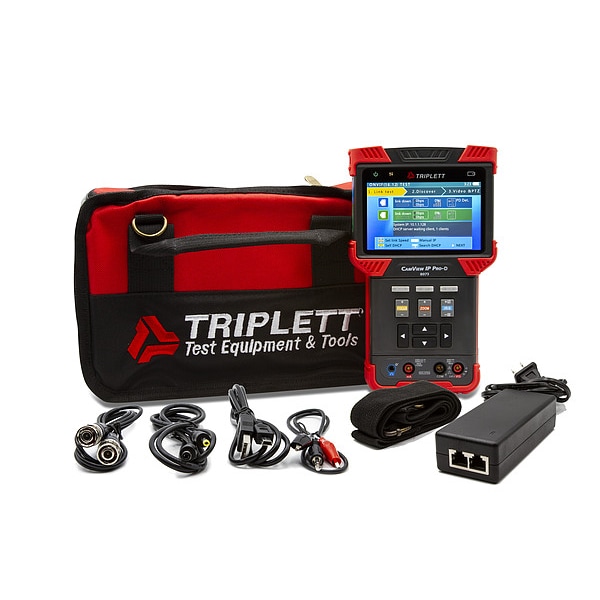

| Includes | 12V Power Output Cable, Audio Cable, BNC Cable, Lanyard, Network Cable, POE Power Injector, RS485 Cable, Tool Bag with Shoulder Strap, USB Cable |
| Height | 7-1/2 in |
| Function | On Site Installation and Maintenance of Video Monitoring Systems |
| Connector Type | 2.5mm Barrel, 3.5mm Stereo, BNC, Mini USB, RJ45, RS485 |
| Display Type | TFT |
| Power Supply | 12V DC @ 2 A |
| Power Source | Lithium Battery Pack |
| Length | 7-1/2 in |
| Displays | 800 x 480 Resolution, Backlit 4" Screen 16.7M, Color |
| For Use With | DHCP, PoE |
| Standards | CE |
| Product Type | Camera Tester |
| Compatible Camera Systems | AHD, CVI, TVI |
| Number of Batteries Required | 1 |
| Battery Chemistry | Lithium |
| Testing Functions | Ethernet Service Detection, PTZ Control Test, Video Transmission |
| Display Screen Type | LCD |
| Backlit Digital Display | Yes |
| Pixels | 800 x 480 |
| Communication Protocol | USB |
| Display Size | 4.3 in |
| Maximum Input Voltage | 12V DC |
| Includes Batteries | Yes |
| Package Quantity | 1 |
