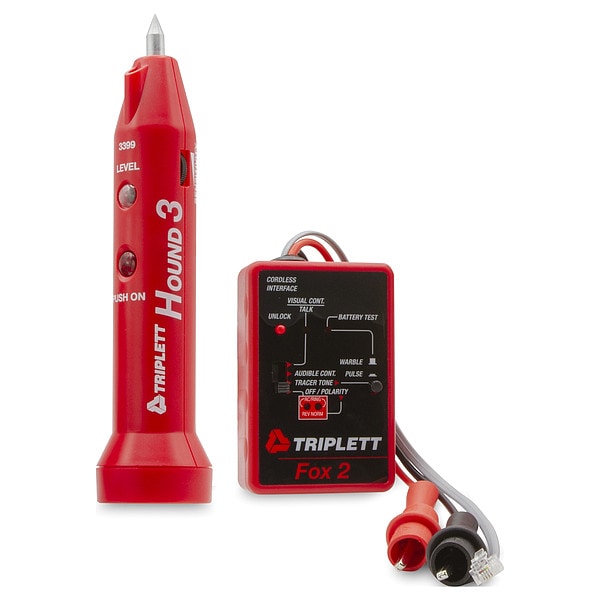

Kit de Rastreador de Circuitos, de 0 a 120V AC, Estuche
| Item | Circuit Tracer Kit |
|---|---|
| Voltage | 0 to 120V AC |
| Includes | Carrying Case, Headphones |
| Traces Wires in Non-Metalic Conduit | Yes |
| Voltage Protection | 120V |
| Features | An Earphone Jack for Noisy or Quiet Work Areas and an Easy Access Battery Cover, The Fox 2 is a Battery Operated Handheld Multi-Function Toner that Generates Multiple Tones (Pulse or Warble), Performs some Basic Telephone Line Tests (Loop Ma, Line Polarity and Ringing Voltage), The Fox and Hound Wire Tracing Kit Consists of a Versatile Fox 2 Tone Generator (Toner) and a High Performance Hound 3 Inductive Amplifier (Probe)., The Hound 3 is a Battery Operated Handheld Lightweight Probe, with a Thumbwheel Sensitivity Control and Signal Strength Indicator LED., this Kit Includes Fox 2, Hound 3, RJ-11 to RJ-45 Adapter, Plastic Duck Bill, Metal Duck Bill, Headphones and a Sturdy Weatherproof Carry Case |
| For Use On | Unenergized Lines |
| Audible Indicator | Yes |
| Battery Type | 9V |
| Maximum Depth | 1 ft |
| Coupling | AC |
| Traces Wires in Conduit | No |
| Breaker/Fuse Identification | Yes |
| Receiver to Transmitter Distance | 1,000 ft |
| Locate Shorts | No |
| Voltage Range | 0 to 120 V AC |
| Traces Wires in Floors | Yes |
| Safety Rating | CAT II 250V |
| Traces Wires in Walls | Yes |
| Manufacturers Warranty Length | 3 yr |
| Display | LED |
| Tracer Type | Circuit Breaker Finders |
| Tracing Locations | Ceilings, Floors, Non-Metallic Conduit, Walls |
| Tone Types | High or Low Pitch, Warble or Pulsed |
| For Voltage Range | 0 to 120 V AC |
| Power Source | Battery |
| Energized Line Overload Protection | 120 V AC |
| Alert Type | Audible, Visual |
| Display Screen Type | No Display |
| Battery Size | 9V |
| Manufacturer Warranty Length | 3 yr |
| Maximum Locating Depth | 1 ft |
| For Circuit Type | Non-Energized |
| CAT Safety Rating | CAT II 250V |
| Includes Batteries | Yes |
| Testing Functions | Circuit Breaker Identification |
| Operating Frequency | 400 to 500 kHz |
| Display Type | No Display |
| Number of Batteries Required | 2 |
| Maximum Resistance | Not Applicable |
| Package Quantity | 1 |
