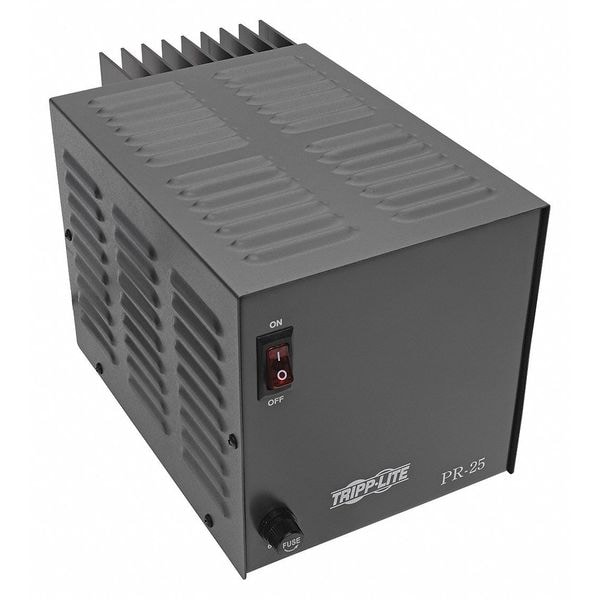

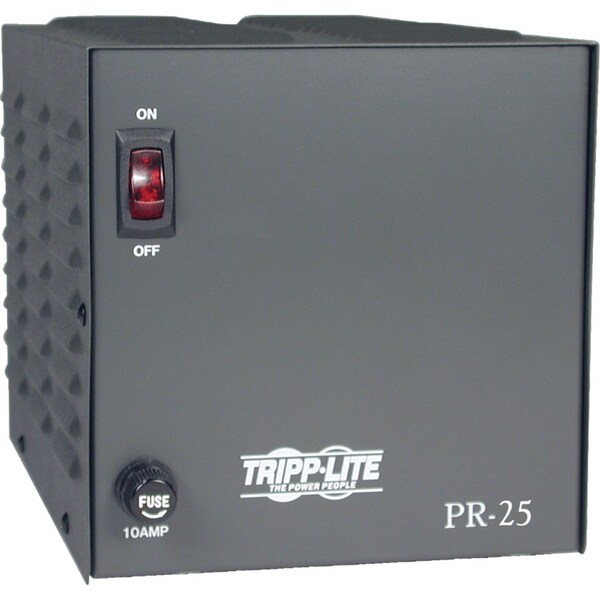

AC to DC Converter, 120V AC to 13.8V DC, 60 Hz
| Item | AC to DC Converter |
|---|---|
| Converts | 120V AC to 13.8V DC |
| Frequency | 60 Hz |
| Height | 6-3/4 in |
| Width | 6-3/4 in |
| Depth | 10-1/4 in |
| Input Voltage | 120 V AC |
| Type | Precision Regulated, 50% Duty Cycle |
| Output Current (Amps) | 20 |
| Input Frequency (Hz) | 60 Hz |
| Peak Amps | 25 A |
| Standards | Trade Agreements Act (TAA) |
| Output Voltage | 13.8 V DC |
| Manufacturers Warranty Length | 1 yr |
| TAA Compliant | Yes |
| Input Voltage Type | DC |
| Compatibility | 75/100 watt transmitters, VHF/UHF ham radios, Commercial/land-mobile radios, Low power linear amplifiers, Test bench equipment, Point-of-sale displays, Aquariums |
| Package Contents | PR25 DC POWER SUPPLY |
| Additional Information | Illuminated on/off switchSmaller footprint Maximizes operating spaceCrowbar overvoltage protection Prevents damage to connected equipment due to overvoltages (15 amp and larger models)Current-limiting electronic foldback Enables automatic overcurrent protection in case of overload; time controlled on 7 amp and larger modelsSolid state, integrated circuit Maintains excellent regulation of output voltageRegulated output voltage Maintains up to 95% of no load valueHigh quality filtering Creates very low ripple/low noise operationHeavy-duty power transformer Provides complete isolation from noise on incoming AC powerLarge heat sinks and vented cabinets Supply cool operation for continuous use and long life of the unit |
| Current Output - Maximum | 25 A |
| Digital Display Screen Type | LED |
| Input Voltage - Maximum | 120 V AC |
| Voltage Output - Maximum | 13.8 V |
| Package Quantity | 1 |
