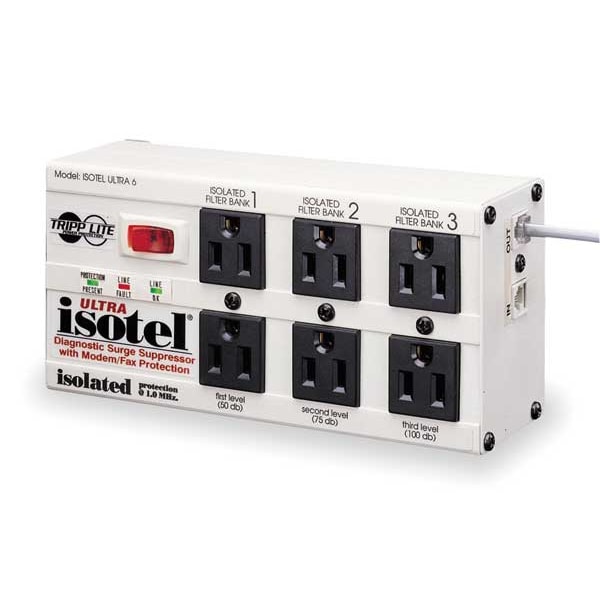

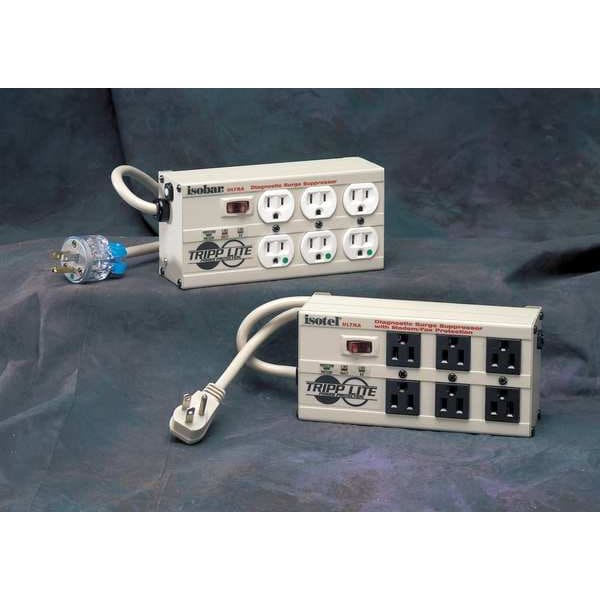

Datacom Surge Protector, 6 Outlet, Gray
| Item | Isobar Surge Protector |
|---|---|
| Number of Outlets | 6 |
| Voltage | 120VAC |
| Color | Light Gray |
| Cord Length | 1.83 m |
| Number of Conductors | 3 |
| Max. Amps | 12 |
| Mounting Style | Keyhole |
| Power Indicator | Yes |
| Housing Material | Metal |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Wire Size | 14 AWG |
| NEMA Plug Configuration | NEMA 5-15P |
| Max. Surge Current | 92 kA |
| Color - Ext. Cords and Outlet Strips | Gray |
| Footnotes | 2,13 |
| Number of Transformer Outlets | 4 |
| Telephone/Fax Surge Protection | Yes |
| Noise Attenuation | 40 to 80dB |
| Communication Port | RJ11 Telephone |
| Length | 7 in |
| Includes | (4) Safety Covers, RJ11 Telephone Cable |
| Max. Amps - Ext. Cords and Outlet Strips | 12 |
| Width | 3-1/2 in |
| Standards | Approvals RoHS, cUL / CSA (Canada), Exceeds IEEE 587 category A&B specifications, FCC Part 68 (Communications), Industry Canada (Communications), Tested to UL1449 3rd Edition by ETL, UL1449 3rd Edition (AC Suppression), UL497A (Communications) |
| Coax Surge Protection | No |
| For Use With | Premium Ac and Phone Line Protection For Personal Computers With Peripherals, Network and Cad/Cam/Cae Workstations, Internetworking Accessories, Telecommunications Systems, Point Of Sale Equipment, Audio/Video and Home Theater Systems In Any Home, Office |
| Outlet Center Distance | 39.45mm Horizontal and 38.89mm Vertical |
| Circuit Breaker | 1 |
| NEMA Plug Configuration - Ext. Cords and Outlet Strips | 5-15P |
| Depth | 2-1/2 in |
| Cord Length - Ext. Cords and Outlet Strips | 6 ft |
| Rated Joules | 3,330 |
| Hz | 50/60 Hz |
| Medical Grade | No |
| Number of Total Outlets - Ext. Cords and Outlet Strips | 6 |
| Outlet Surge Protection | Yes |
| Medical Facility Use | Outside Patient Care Areas (UL 1449) |
| Height | 2-1/2 in |
| USB Charging Port | 0 |
| Application | Commercial and Industrial |
| Plug Configuration | NEMA 5-15P |
| Total Number of Outlets | 6 |
| Receptacle Configuration | NEMA 5-15R |
| Plug Style | Right-Angle Plug |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 7 in |
| Features | Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots, Safe Thermal Fusing |
| Outlet Configuration | Right-Angle Plug |
| Watts | 1440W |
| Certifications & Standards | UL1449 (let through rating 330V), UL1283, UL1363, UL497A, FCC Part 68, cUL, IEEE 587 category A and B |
| Input Voltage | 120 V AC |
| Compatibility | Ideal for premium AC and phone line protection for personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio / video and home theater systems in any home, office or industrial application |
| Dataline Protection | Fax/Modem/Phone |
| Plug/Connector Type | NEMA 5-15P |
| Product Color | Gray |
| Product Name | Isobar 6 Outlets 120V Surge Suppressor |
| Maximum Line Current | 15 A |
| Maximum Surge Current | 61 kA |
| Status Indicators | Line OK, Line Fault, Protection Present |
| Receptacles | 6 x NEMA 5-15R |
| Surge Energy Rating | 3330 J |
| Additional Information | Metal end caps are fitted with keyhole mounting tabs for wallmount installation, Rugged all-metal corded strip format with high quality duplex receptacles, Supports up to 4 large transformer plug accessories without covering remaining outlets, Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment |
| Power Cord/Cable Length | 6 ft |
| Output Voltage | 120 V AC |
| Package Contents | Isobar 6 Outlets 120V Surge Suppressor, ISOTEL6ULTRA Surge Suppressor, RJ11 telephone cable, Set of 4 outlet safety covers, Instruction manual with warranty information |
| Power Handling | 1,440 VA |
| Protection Type | Surge |
| Package Quantity | 1 |
