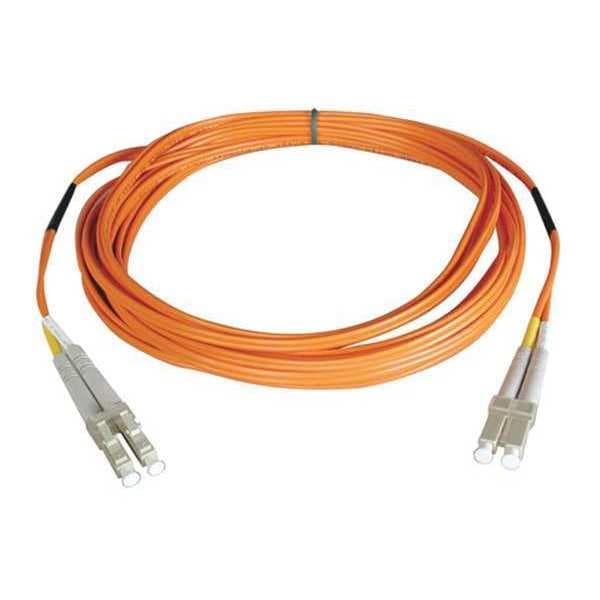

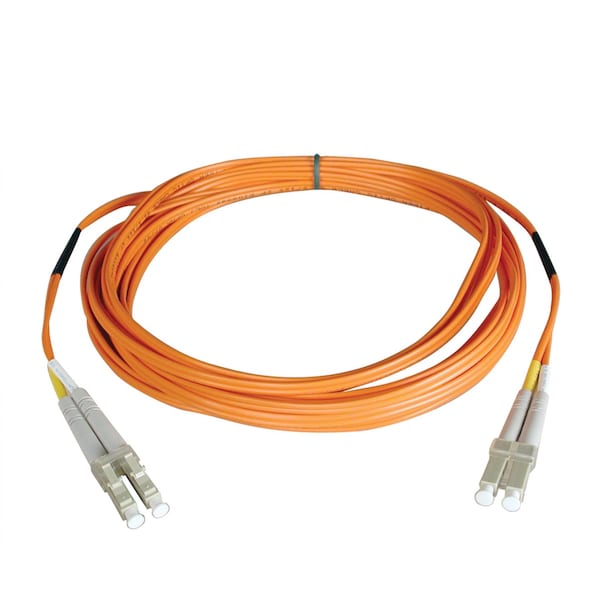

Fiber Optic Cable, Dplx, MMF, 50, LC/LC, 20m
| Item | Fiber Optic Cable,Dplx,MMF,50,LC/LC,20m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Orange |
| Features | Zip Cord |
| Cable Length | 20 ft |
| Core Diameter | 50 microns |
| Clad Diameter | 125 micron |
| Side B - Connector 1 | LC DUPLEX |
| Side A - Connector 1 | LC DUPLEX |
| Approvals | FDDI and OFNR rated |
| Network Speed | 1Gbps |
| Cable Length (in.) | 236.2 |
| Optical Mode | OM2 |
| Cable Length (ft.) | 19.7 |
| Technology | Multimode |
| Core/Cladding Diameter | 50/125 µm |
| Connector on First End Details | 2 x LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Certifications & Standards | FDDI-Rated |
| Connector on Second End Details | 2 x LC Network - Male |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Product Color | Orange |
| Product Name | FIber Optic Duplex Patch Cable |
| Cable Jacket Color | Orange |
| Cable Jacket Material | LSZH |
| Insertion Loss | ≤ 0.20 dB |
| Core Diameter (microns) | 50 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Rating | OFNR |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Connector Color | Gray |
| Attenuation @ 850NM | 3 dB/km |
| Endface Polish | PC |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Fiber Cable Length | 6 M |
| Clad Diameter (microns) | 125 |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Package Includes | This multimode duplex Fibre Channel optic LC/LC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 10, 15, 20, 25, 30 and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-". |
| Package Quantity | 1 |
