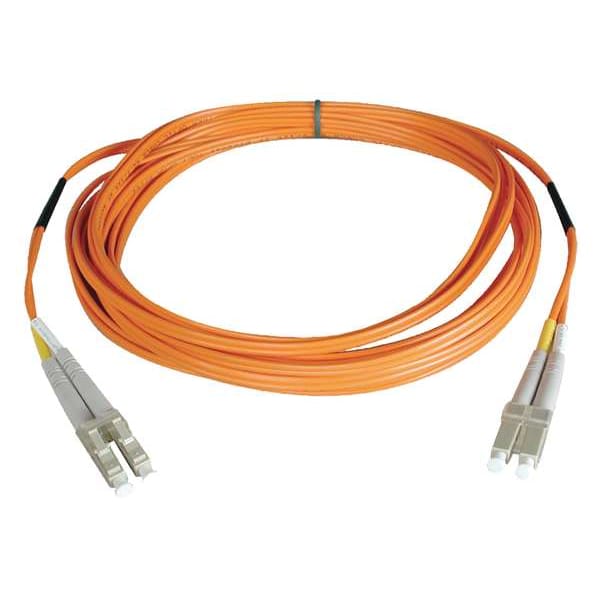

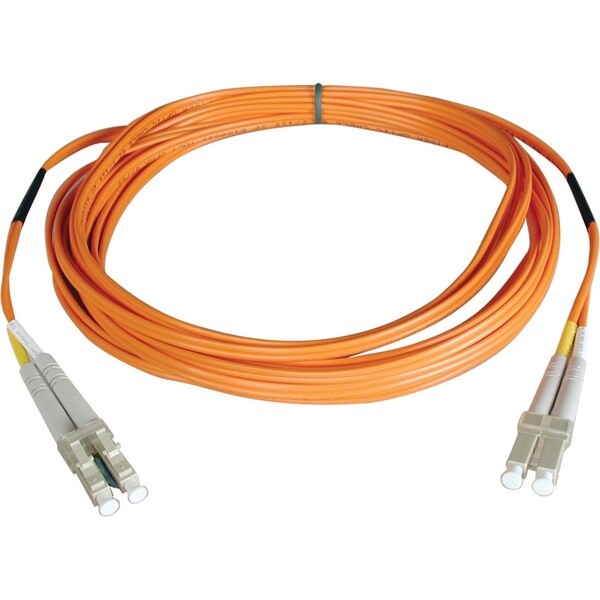

Fiber Optic Cable, Dplx, MMF, 50, LC/LC, 23m
| Item | Fiber Optic Cable,Dplx,MMF,50,LC/LC,23m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Orange |
| Cable Length | 23 ft |
| Optical Mode | OM2 |
| Clad Diameter | 125 micron |
| Attenuation @ 850NM | 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum |
| Side B - Connector 1 | LC DUPLEX |
| Primary Coating Diameter | 245+/-15 microns |
| Cable Length (ft.) | 23 |
| Technology | Multimode |
| Primary Coating Material | Acrylate |
| Side A - Connector 1 | LC DUPLEX |
| Cable Length (in.) | 275.6 |
| Approvals | FDDI and OFNR rated |
| Numerical Aperture | .275 nominal |
| Bandwidth @ 850NM | 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum |
| Core Diameter | 50 microns |
| Network Speed | 1Gbps |
| Secondary Coating Diameter | 900+/-50 microns |
| Secondary Coating Material | PVC |
| Proof Test Level | 100,000 PSI |
| Connector on Second End Details | 2 x LC - Male |
| Product Type | Network Cable |
| Package Contents | Fiber Optic Duplex Patch Cable, 7-meter duplex MMF cable LC/LC 50/125 fiber |
| Cable Type | Fiber Optic |
| Certifications & Standards | FDDI rated, OFNR rated |
| Cable Characteristic | Patch Cable |
| Connector on First End Details | 2 x LC - Male |
| Product Color | Orange |
| Additional Information | Fiber Type: All glass graded index, Core Diameter: Two 50+/-3 microns, Clad Diameter: 125+/-2 microns, Primary Coating Diameter: 245+/-15 microns, Primary Coating Material: Acrylate, Secondary Coating Diameter: 900+/-50 microns, Attenuation @ 850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @ 850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numerical Aperture: .275 nominal, Proof Test Level: 100,000 PSI |
| Core/Cladding Diameter | 50/125 µm |
| Product Name | Fiber Optic Duplex Patch Cable |
| Insertion Loss | ≤ 0.20 dB |
| Cable Jacket Color | Orange |
| Secondary Coating Diameter (microns) | 900 |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Connector Color | Gray |
| Fiber Cable Length | 7 M |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Primary Coating Diameter (microns) | 245 |
| Package Includes | 7-meter duplex MMF cable LC/LC 50/125 fiber |
| Endface Polish | PC |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Core Diameter (microns) | 50 |
| Clad Diameter (microns) | 125 |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Cable Jacket Rating | OFNR |
| Cable Jacket Material | LSZH |
| Package Quantity | 1 |
