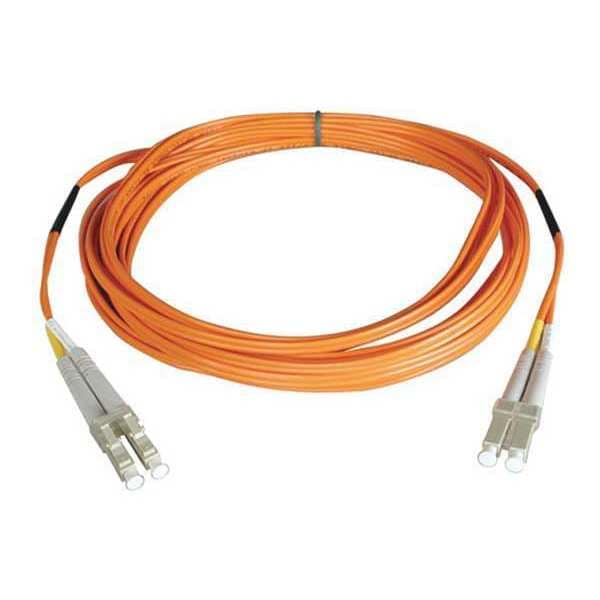

Fiber Optic Cable, Dplx, MMF, 50, LC/LC, 40m
| Item | Fiber Optic Cable,Dplx,MMF,50,LC/LC,40m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Orange |
| Network Speed | 1Gbps |
| Technology | Multimode |
| Cable Length (ft.) | 39.4 |
| Optical Mode | OM2 |
| Side B - Connector 1 | LC DUPLEX |
| Clad Diameter | 125 micron |
| Cable Length (in.) | 472.4 |
| Approvals | FDDI and OFNR rated |
| Core Diameter | 50 microns |
| Side A - Connector 1 | LC DUPLEX |
| Cable Length | 39.4 ft |
| Cable Type | Fiber Optic |
| Product Type | Network Cable |
| Cable Characteristic | Patch Cable |
| Connector on Second End Details | 2 x LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Certifications & Standards | OFNR Rated |
| Product Name | N520-12M Fiber Optic Duplex Patch Cable |
| Core/Cladding Diameter | 50/125 µm |
| Fiber Optic Mode | Multi-mode |
| Product Color | Orange |
| Core Diameter (microns) | 50 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | LSZH |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Connector Color | Gray |
| Endface Polish | PC |
| Package Includes | 12M Duplex MMF Cable LC/LC 50/125 Fiber Patch Cable |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Fiber Cable Length | 12 M |
| Cable Jacket Color | Orange |
| Insertion Loss | ≤ 0.20 dB |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Attenuation @ 850NM | 3 dB/km |
| Package Quantity | 1 |
