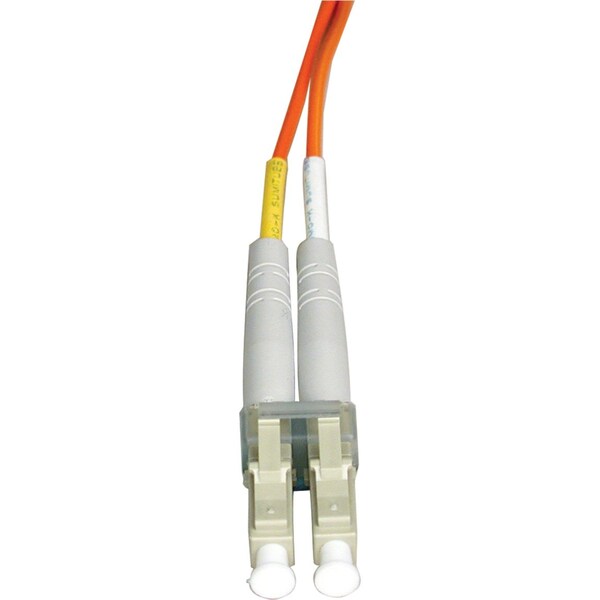

Cable de fibra óptica, Dplx, MMF, 50, LC/SC, 33m. Conexión de alto rendimiento para redes de datos y comunicaciones.
| Item | Fiber Optic Cable,Dplx,MMF,50,LC/SC,33m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Orange |
| Cable Length | 32.8 ft |
| Side B - Connector 1 | SC DUPLEX |
| Cable Length (in.) | 393.7 |
| Secondary Coating Diameter | 900 +/- 50 microns |
| Optical Mode | OM2 |
| Primary Coating Diameter | 245 +/- 15 microns |
| Attenuation @ 1300NM | 1.0 DB/KM maximum |
| Proof Test Level | 100,000 PSI |
| Numerical Aperture | .275 nominal |
| Cable Length (ft.) | 32.8 |
| Primary Coating Material | Acrylate |
| Core Diameter | 50 microns |
| Network Speed | 1Gbps |
| Attenuation @ 850NM | 3.5 DB/KM maximum |
| Bandwidth @ 850NM | 220 MHZ-KM minimum |
| Secondary Coating Material | PVC |
| Approvals | FDDI and OFNR rated |
| Side A - Connector 1 | LC DUPLEX |
| Technology | Multimode |
| Clad Diameter | 125 micron |
| Bandwidth @ 1300NM | 600 MHZ-KM minimum |
| Connector on Second End Details | 2 x SC Network - Male |
| Cable Type | Fiber Optic |
| Product Name | Duplex Fibre Channel Patch Cable |
| Certifications & Standards | OFNR(riser rated), FDDI |
| Product Type | Network Cable |
| Package Contents | Duplex Fibre Channel Patch Cable, 10M Duplex MMF Cable LC/SC 50/125 Fiber |
| Additional Information | Fiber type: all glass graded index, Core diameter: two 50+/-3 microns, CLAD diameter: 125+/-2 microns, Primary coating diameter: 245+/-15 microns, Primary coating material: acrylate, Secondary coating diameter: 900+/-50 microns, Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numeric apeture: .275 nominal, Proof test level: 100,000 PSI, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze |
| Cable Characteristic | Patch Cable |
| Connector on First End Details | 2 x LC - Male |
| Fiber Cable Length | 10 M |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Clad Diameter (microns) | 125 |
| Package Includes | 10M Duplex MMF Cable LC/SC 50/125 Fiber |
| Secondary Coating Diameter (microns) | 900 |
| Core Diameter (microns) | 50 |
| Connector Color | White, Beige |
| Cable Jacket Rating | OFNR |
| Cable Jacket Color | Orange |
| Endface Polish | PC |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Primary Coating Diameter (microns) | 245 |
| Cable Jacket Material | LSZH |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Package Quantity | 1 |
