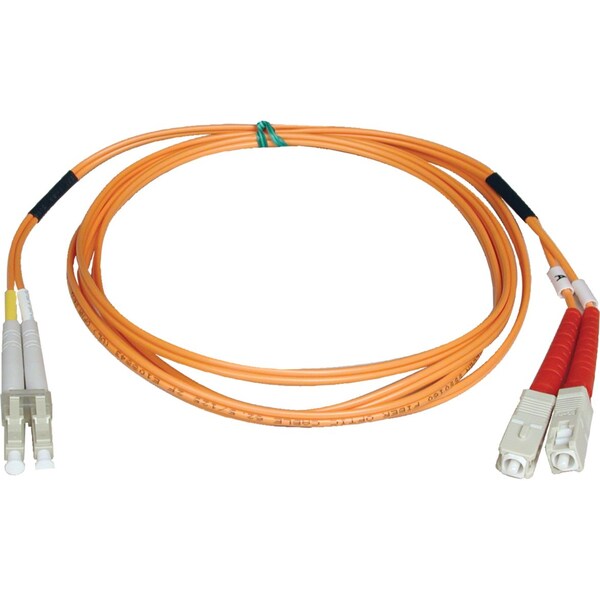

Cable de fibra óptica, Duplex, Multipmodo, 50, Conectores LC/SC, 50m de longitud. Ideal para redes de alta velocidad y largas distancias.
| Item | Fiber Optic Cable,Dplx,MMF,50,LC/SC,50m |
|---|---|
| Number of Fibers | 2 |
| Color | Orange |
| Jacket Type | Plenum |
| Cable Length | 49.2 ft |
| Side B - Connector 1 | SC DUPLEX |
| Optical Mode | OM2 |
| Core Diameter | 50 microns |
| Cable Length (ft.) | 49.2 |
| Technology | Multimode |
| Cable Length (in.) | 590.6 |
| Side A - Connector 1 | LC DUPLEX |
| Network Speed | 1Gbps |
| Approvals | FDDI and OFNR rated |
| Clad Diameter | 125 micron |
| Certifications & Standards | OFNR(riser rated), FDDI |
| Product Type | Network Cable |
| Connector on First End Details | 2 x LC - Male |
| Additional Information | Fiber type: all glass graded index, Core diameter: two 50+/-3 microns, CLAD diameter: 125+/-2 microns, Primary coating diameter: 245+/-15 microns, Primary coating material: acrylate, Secondary coating diameter: 900+/-50 microns, Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numeric apeture: .275 nominal, Proof test level: 100,000 PSI, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze |
| Product Name | Duplex Fibre Channel Patch Cable |
| Cable Type | Fiber Optic |
| Package Contents | Duplex Fibre Channel Patch Cable, 15M duplex MMF cable LC/SC 50/125 fiber |
| Cable Characteristic | Patch Cable |
| Connector on Second End Details | 2 x SC Network - Male |
| Cable Jacket Material | LSZH |
| Cable Jacket Color | Orange |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 850NM | 3 dB/km |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Clad Diameter (microns) | 125 |
| Cable Jacket Rating | OFNR |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Core Diameter (microns) | 50 |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Fiber Cable Length | 15 M |
| Package Includes | 15M duplex MMF cable LC/SC 50/125 fiber |
| Connector Color | White, Beige |
| Endface Polish | PC |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Package Quantity | 1 |
