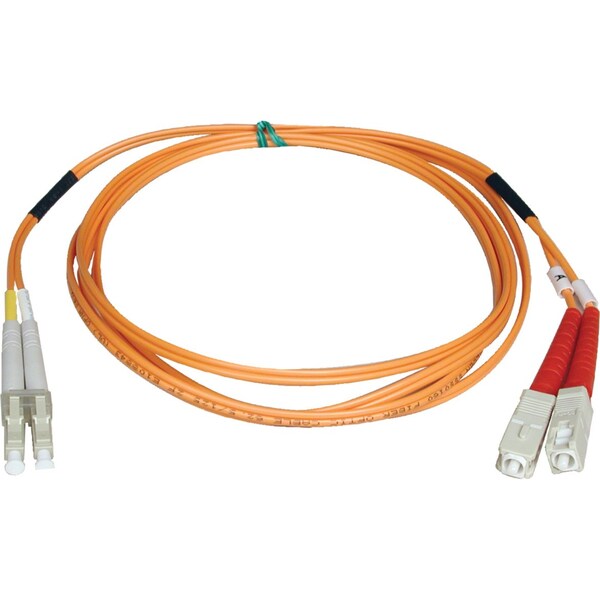

Fiber Optic Cable, Dplx, MMF, 50, LC/SC, 6m
| Item | Fiber Optic Cable,Dplx,MMF,50,LC/SC,6m |
|---|---|
| Number of Fibers | 2 |
| Jacket Type | Plenum |
| Color | Orange |
| Cable Length | 6.6 ft |
| Cable Length (ft.) | 6.6 |
| Side A - Connector 1 | LC DUPLEX |
| Clad Diameter | 125 micron |
| Technology | Multimode |
| Optical Mode | OM2 |
| Cable Length (in.) | 78.7 |
| Core Diameter | 50 microns |
| Side B - Connector 1 | SC DUPLEX |
| Approvals | FDDI and OFNR rated |
| Network Speed | 1Gbps |
| Cable Characteristic | Patch Cable |
| Package Contents | Duplex Fiber Optic Patch Cable, 2M duplex MMF cable LC/SC 50/125 fiber |
| Connector on First End Details | 2 x LC - Male |
| Certifications & Standards | FDDI |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Additional Information | Fiber type: all glass graded index, Core diameter: two 50+/-3 microns, CLAD diameter: 125+/-2 microns, Primary coating diameter: 245+/-15 microns, Primary coating material: acrylate, Secondary coating diameter: 900+/-50 microns, Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum, Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum, Numeric apeture: .275 nominal, Proof test level: 100,000 PSI, Insertion loss testing performed on every connector (0.2db typical) and provided with cable |
| Connector on Second End Details | 2 x SC Network - Male |
| Product Name | Duplex Fiber Optic Patch Cable |
| Attenuation @ 850NM | 3 dB/km |
| Clad Diameter (microns) | 125 |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Includes | 2M duplex MMF cable LC/SC 50/125 fiber |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Endface Polish | PC |
| Cable Jacket Material | LSZH |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Cable Jacket Color | Orange |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Fiber Cable Length | 2 M |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Connector Color | White, Beige |
| Core Diameter (microns) | 50 |
| Cable Jacket Rating | OFNR |
| Package Quantity | 1 |
