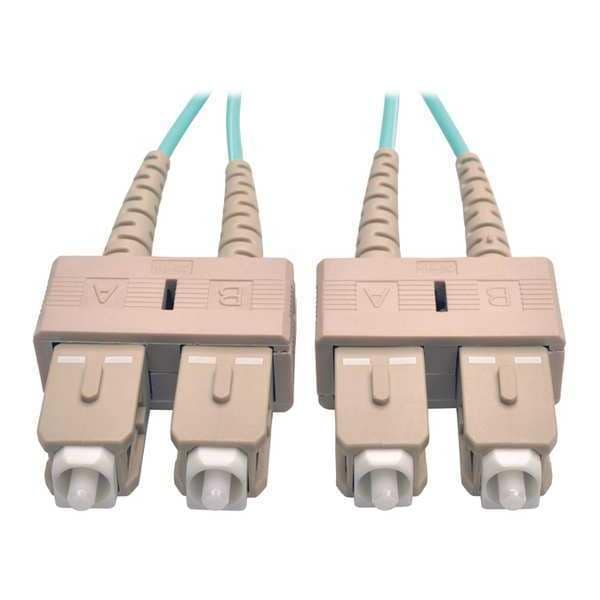

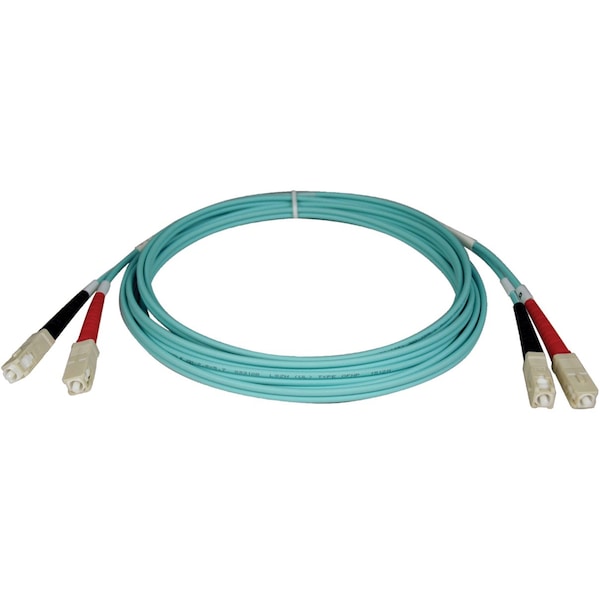

Este cable de fibra óptica de Tripp Lite es compatible con la transmisión de datos en alta velocidad a través de su diseño dúplex multimodo de 50 micras. Con una longitud de 10 metros, está diseñado para redes de área local, aplicaciones de fibra canalizada y enlaces ascendentes a redes. Cumple con los estándares OM3 para garantizar un rendimiento óptimo.
| Item | Fiber Optic Cable,Dplx,MMF,50,OM3,10m |
|---|---|
| Number of Fibers | 2 |
| Color | Aqua |
| Cable Length (in.) | 393.7 |
| Technology | Multimode |
| Side A - Connector 1 | SC DUPLEX |
| Cable Length (ft.) | 32.8 |
| Clad Diameter | 125 micron |
| Side B - Connector 1 | SC DUPLEX |
| Cable Jacket Rating | LSZH |
| Optical Mode | OM3 |
| Core Diameter | 50 microns |
| Network Speed | 100Gbps, 10Gbps / 40Gbps |
| Cable Length | 32.8 ft |
| Connector on First End Details | 4 x SC |
| Core/Cladding Diameter | 50/125 µm |
| Compatibility | TYIPICAL APPLICATIONS: For use with 10-Gigabit Ethernet equipment |
| Product Type | Network Cable |
| Product Name | 10Gb Aqua Duplex Multimode 50/125 Fiber Patch Cable |
| Additional Information | 10gb Ethernet speed to 300 meters @850nm, Use with VCSEL and LED laser light sources, High-Speed, High-Bandwidth, Low-Cost, Backward compatible with legacy LAN's, Ideal for Fibre Channel (SAN) applications, IEEE 802.3ae and TIA LOMMF compliant |
| Package Contents | 10 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, SC/SC |
| Package Includes | 10 meter Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, SC/SC |
| Insertion Loss | ≤ 0.20 dB |
| Clad Diameter (microns) | 125 |
| Endface Polish | PC |
| Fiber Cable Length | 10 M |
| Core Diameter (microns) | 50 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 850NM | 3 dB/km |
| Network Compatibility | 1 Gbps, 10 Gbps |
| Connector Color | Beige |
| Cable Jacket Material | LSZH |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Cable Jacket Color | Aqua |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Package Quantity | 1 |
