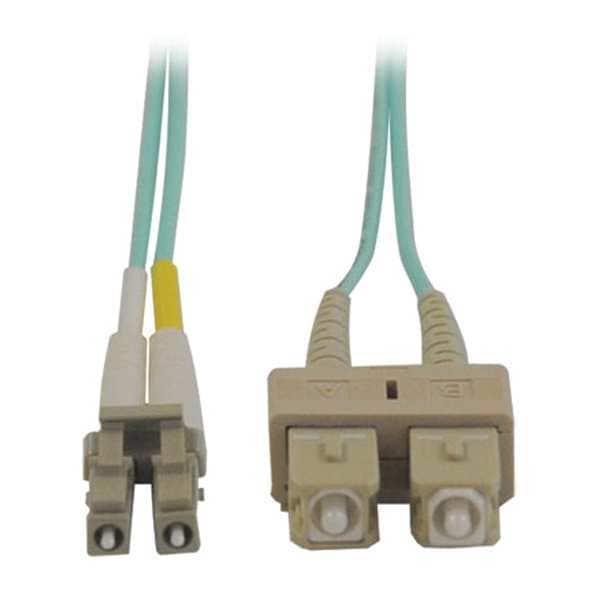

El Cable de fibra óptica Tripp Lite es una solución eficiente y confiable para redes de alta velocidad. Con dobleplex, multimodo, 50, OM3 y 1 metro de longitud, este cable garantiza un rendimiento óptimo en aplicaciones de fibra óptica.
| Item | Fiber Optic Cable,Dplx,MMF,50,OM3,1m |
|---|---|
| Number of Fibers | 2 |
| Color | Aqua |
| Side A - Connector 1 | SC DUPLEX |
| Cable Length (in.) | 39.4 |
| Clad Diameter | 125 micron |
| Network Speed | 100Gbps, 10Gbps / 40Gbps |
| Cable Length (ft.) | 3.3 |
| Core Diameter | 50 microns |
| Cable Jacket Rating | LSZH |
| Side B - Connector 1 | LC DUPLEX |
| Technology | Multimode |
| Optical Mode | OM3 |
| Cable Length | 3.3 ft |
| Core/Cladding Diameter | 50/125 µm |
| Additional Information | Designed for 10-Gig Ethernet applications, High-Speed, High-Bandwidth, Low-Cost, Backward compatible with legacy LAN's |
| Product Color | Blue |
| Connector on Second End Details | 2 x LC - Male |
| Cable Type | Fiber Optic |
| Product Type | Network Cable |
| Product Name | Fiber Optic Duplex Patch Cable |
| Certifications & Standards | IEEE 802.3ae |
| Cable Characteristic | Patch Cable |
| Package Contents | Fiber Optic Duplex Patch Cable, 1 meter ( 3ft ) Duplex Multimode 50/125 Aqua Fiber Patch Cable, SC/LC |
| Connector on First End Details | 2 x SC Network - Male |
| Cable Jacket Color | Aqua |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps |
| Endface Polish | PC |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Includes | 1 meter ( 3ft ) Duplex Multimode 50/125 OM3 Aqua Fiber Patch Cable, SC/LC |
| Fiber Cable Length | 1 M |
| Connector Color | White, Beige |
| Core Diameter (microns) | 50 |
| Attenuation @ 850NM | 3 dB/km |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Clad Diameter (microns) | 125 |
| Cable Jacket Material | LSZH |
| Package Quantity | 1 |
