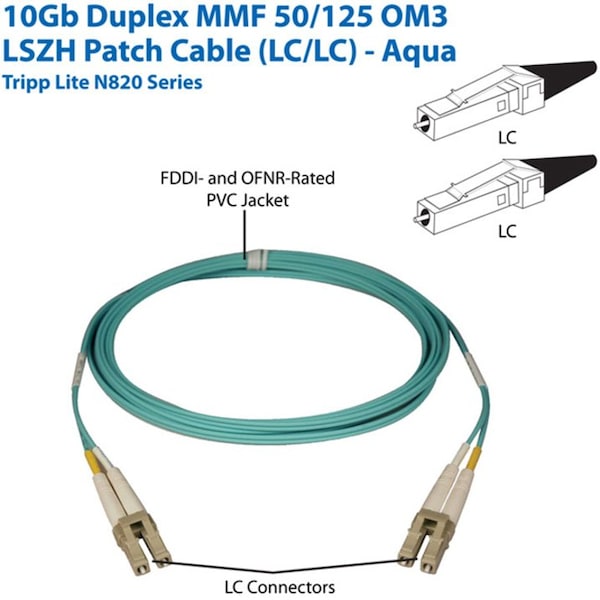

Fiber Optic Cable, Dplx, MMF, 50, OM3, 20m
| Item | Fiber Optic Cable,Dplx,MMF,50,OM3,20m |
|---|---|
| Number of Fibers | 2 |
| Jacket Type | LSZH |
| Color | Aqua |
| Technology | Multimode |
| Optical Mode | OM3 |
| Core Diameter | 50 microns |
| Cable Length (in.) | 787.4 |
| Clad Diameter | 125 micron |
| Side B - Connector 1 | LC DUPLEX |
| Network Speed | 100Gbps, 10Gbps / 40Gbps |
| Side A - Connector 1 | LC DUPLEX |
| Cable Length (ft.) | 65.6 |
| Cable Length | 65.6 ft |
| Core/Cladding Diameter | 50/125 µm |
| Connector on Second End Details | 2 x LC Network |
| Cable Characteristic | Patch Cable |
| Product Name | Aqua Duplex Fiber Patch Cable |
| Product Color | Blue |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 2 x LC Network |
| Certifications & Standards | TIA LOMMF, IEEE 802.3ae |
| Product Type | Network Cable |
| Additional Information | 10gb Ethernet speed to 300 meters at 850nm |
| Package Includes | OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables are for use with 10 Gb Ethernet applications. These 50/125um LC/LC Fiber Optic cables provide nearly four times the bandwidth over conventional 62.5um multimode fiber with performance rivaling that of singlemode cable. LOMMF cable allows 10 Gb serial transmission over extended distances in the 850 nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. |
| Attenuation @ 850NM | 3 dB/km |
| Cable Jacket Color | Aqua |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Endface Polish | PC |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | LSZH |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps |
| Insertion Loss | ≤ 0.20 dB |
| Core Diameter (microns) | 50 |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Connector Color | White |
| Fiber Cable Length | 20 M |
| Package Quantity | 1 |
