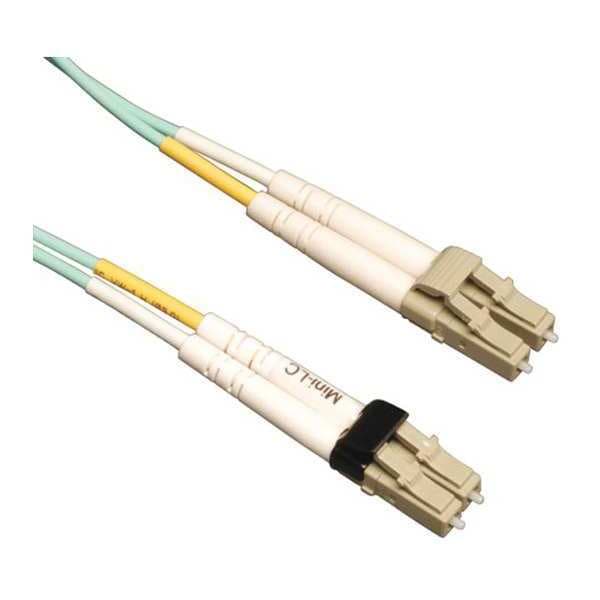

Fiber Optic Cable, Dplx, MMF, 50, OM3, 3m
| Item | Fiber Optic Cable,Dplx,MMF,50,OM3,3m |
|---|---|
| Number of Fibers | 2 |
| Jacket Type | LSZH |
| Color | Aqua |
| Cable Length | 10 ft |
| Cable Length (ft.) | 9.8 |
| Side A - Connector 1 | LC DUPLEX |
| Side B - Connector 1 | MINI LC DUPLEX |
| Cable Length (in.) | 118.1 |
| Network Speed | 100Gbps, 10Gbps / 40Gbps |
| Optical Mode | OM3 |
| Technology | Multimode |
| Core Diameter | 50 microns |
| Clad Diameter | 125 micron |
| Connector on First End Details | 2 x LC Network - Male |
| Cable Characteristic | Patch Cable |
| Core/Cladding Diameter | 50/125 µm |
| Device Supported | Network Device |
| Compatibility | Brocade FC8-64 Blade |
| Fiber Optic Mode | Multi-mode |
| Connector on Second End Details | 2 x Mini-LC Network - Male |
| Product Color | Aqua |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Product Name | N836-03M Fiber Optic Duplex Patch Cable |
| Endface Polish | PC |
| Cable Jacket Color | Aqua |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Insertion Loss | ≤ 0.20 dB |
| Clad Diameter (microns) | 125 |
| Connector Color | White, Beige |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps |
| Fiber Cable Length | 3 M |
| Cable Jacket Material | LSZH |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Core Diameter (microns) | 50 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 850NM | 3 dB/km |
| Package Includes | 3M (10-ft.) 10Gb Duplex MMF 50/125 OM3 LSZH Patch Cable ( Mini-LC / LC) - Aqua |
| Cable Jacket Rating | OFNR |
| Package Quantity | 1 |
