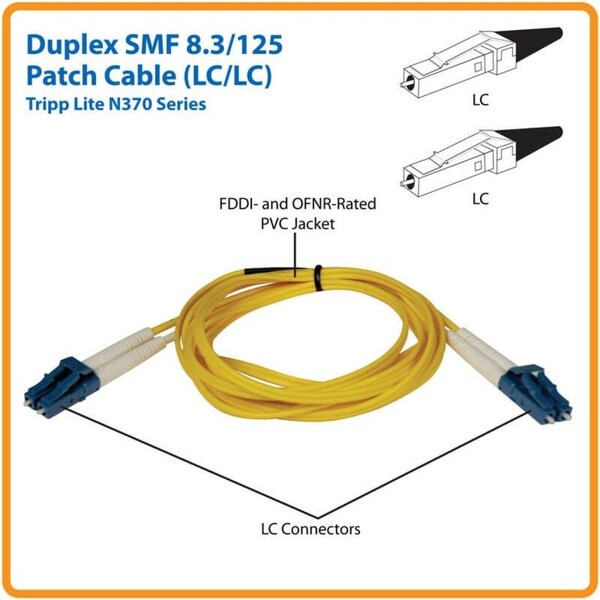

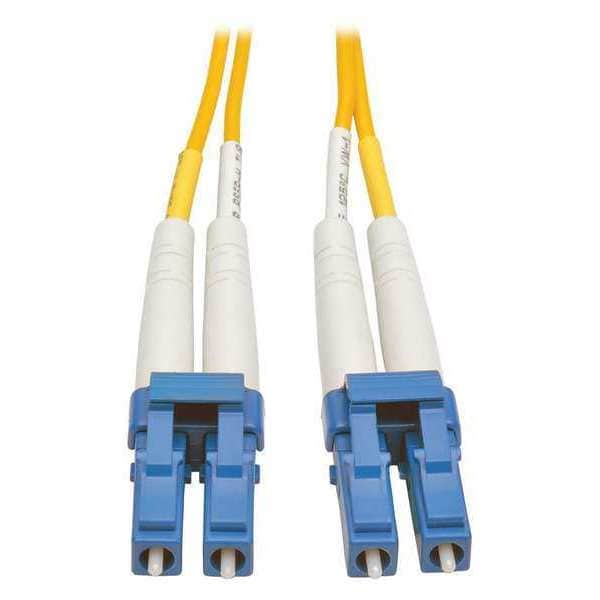

Fiber Optic Cable, Dplx, SMF, 8.3, LC/LC, 10m
| Item | Fiber Optic Cable,Dplx,SMF,8.3,LC/LC,10m |
|---|---|
| Color | Yellow |
| Number of Fibers | 2 |
| Technology | Singlemode |
| Side B - Connector 1 | LC DUPLEX |
| Approvals | FDDI and OFNR rated |
| Side A - Connector 1 | LC DUPLEX |
| Cable Jacket Rating | LSZH |
| Clad Diameter | 125 micron |
| Cable Length (ft.) | 32.8 |
| Cable Length (in.) | 393.7 |
| Core Diameter | 8.3 microns |
| Network Speed | 10Gbps |
| Optical Mode | OS2 |
| Cable Length | 32.8 ft |
| Product Name | Fiber Optic Duplex Patch Cable |
| Core/Cladding Diameter | 9/125 µm |
| Cable Type | Fiber Optic |
| Certifications & Standards | FDDI, OFNR |
| Connector on Second End Details | 2 x LC - Male |
| Jacket Material | Polyvinyl Chloride |
| Additional Information | Duplex singlemode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive |
| Package Contents | Fiber Optic Duplex Patch Cable, 10-meter ( 30-33ft ) Duplex Singlemode Fiber Patch Cable, LC/LC |
| Connector on First End Details | 2 x LC - Male |
| Product Color | Yellow |
| Cable Characteristic | Patch Cable |
| Product Type | Network Cable |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | LSZH |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Insertion Loss | ≤ 0.30 dB |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Package Includes | 10-meter ( 30-33ft ) Duplex Singlemode Fiber Patch Cable, LC/LC |
| Clad Diameter (microns) | 125 |
| Connector Color | White, Blue |
| Endface Polish | UPC |
| Fiber Cable Length | 10 M |
| Cable Jacket Color | Yellow |
| Attenuation @ 1310NM | 0.36 dB/km |
| Core Diameter (microns) | 9 |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, 400 Gbps |
| Attenuation @ 1550NM | 0.22 dB/km |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Package Quantity | 1 |
