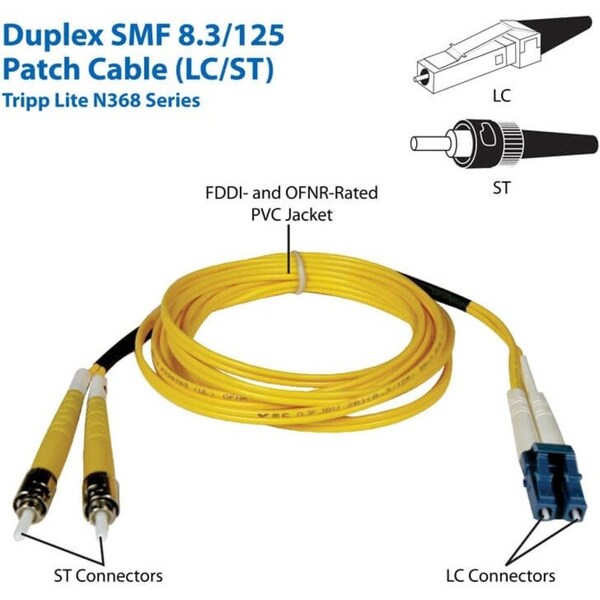

Fiber Optic Cable, Dplx, SMF, 8.3, LC/ST, 10m
| Item | Fiber Optic Cable,Dplx,SMF,8.3,LC/ST,10m |
|---|---|
| Color | Yellow |
| Cable Length | 33 ft |
| Cable Length (ft.) | 32.8 |
| Optical Mode | OS2 |
| Side B - Connector 1 | ST DUPLEX |
| Approvals | FDDI and OFNR rated |
| Clad Diameter | 125 micron |
| Number of Fibers | 2 |
| Technology | Singlemode |
| Side A - Connector 1 | LC DUPLEX |
| Cable Length (in.) | 393.7 |
| Core Diameter | 8.3 microns |
| Product Color | Yellow |
| Cable Characteristic | Patch Cable |
| Core/Cladding Diameter | 9/125 µm |
| Cable Type | Fiber Optic |

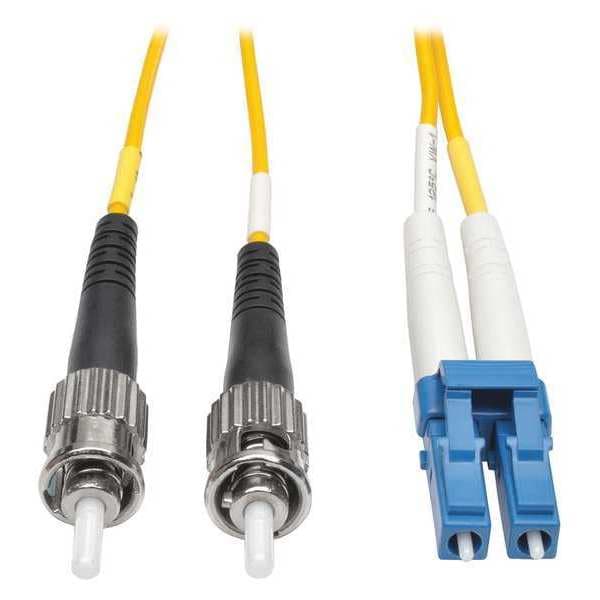

| Connector on First End Details | 2 x LC - Male |
| Connector on Second End Details | 2 x ST - Male |
| Product Type | Network Cable |
| Product Name | Fiber Optic Duplex Patch Cable |
| Jacket Material | Polyvinyl Chloride |
| Package Contents | Fiber Optic Duplex Patch Cable, 10-meter ( 33ft ) Duplex Singlemode Fiber Patch Cable, LC/ST |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Endface Polish | UPC |
| Insertion Loss | ≤ 0.30 dB |
| Attenuation @ 1550NM | 0.22 dB/km |
| Cable Jacket Color | Yellow |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Core Diameter (microns) | 9 |
| Fiber Cable Length | 10 M |
| Cable Jacket Rating | OFNR |
| Attenuation @ 1310NM | 0.36 dB/km |
| Clad Diameter (microns) | 125 |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, 400 Gbps |
| Cable Jacket Material | LSZH |
| Connector Color | White, Black, Blue |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Package Includes | 10-meter ( 33ft ) Duplex Singlemode Fiber Patch Cable, LC/ST |
| Package Quantity | 1 |
