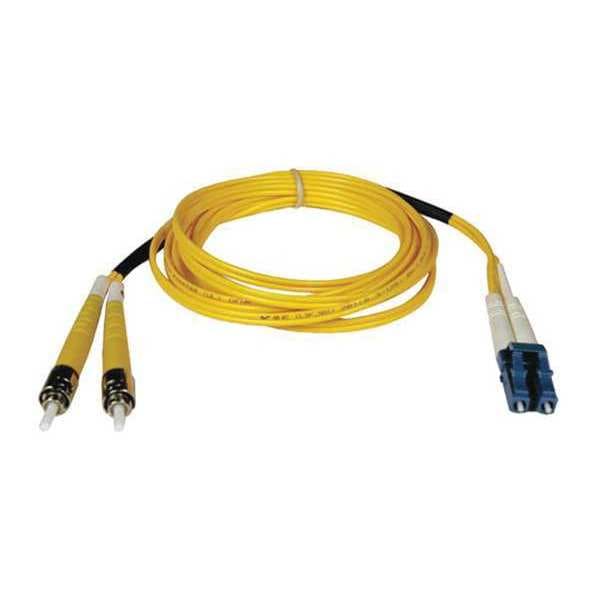

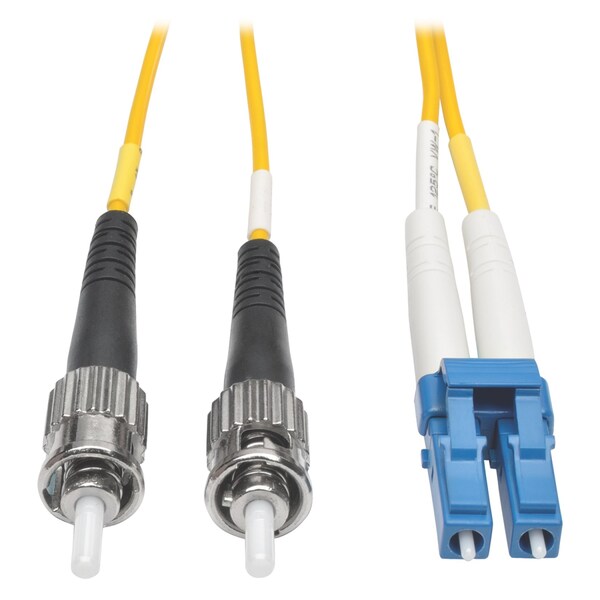

Fiber Optic Cable, Dplx, SMF, 8.3, LC/ST, 15m
| Item | Fiber Optic Cable,Dplx,SMF,8.3,LC/ST,15m |
|---|---|
| Color | Yellow |
| Jacket Type | LSZH, OFNR |
| Cable Length | 49.2 ft |
| Cable Length (ft.) | 49.2 |
| Technology | Singlemode |
| Core Diameter | 8.3 microns |
| Clad Diameter | 125 micron |
| Approvals | FDDI and OFNR rated |
| Side A - Connector 1 | LC DUPLEX |
| Number of Fibers | 2 |
| Side B - Connector 1 | ST DUPLEX |
| Cable Length (in.) | 590.6 |
| Optical Mode | OS2 |
| Core/Cladding Diameter | 9/125 µm |
| Data Transfer Rate | 400 Gbit/s |
| Connector on Second End Details | 2 x ST Network - Male |
| Cable Characteristic | Patch Cable |
| Jacket Material | Polyvinyl Chloride |
| Product Name | Fiber Optic Duplex Patch Cable |
| Connector on First End Details | 2 x LC Network - Male |
| Certifications & Standards | FDDI Rated |
| Cable Type | Fiber Optic |
| Device Supported | Network Device |
| Product Type | Network Cable |
| Connector Color | White, Black, Blue |
| Fiber Optic Mode | Single-mode |
| Product Color | Yellow |
| Core Diameter (microns) | 9 |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Package Includes | 15-meter ( 50ft ) Duplex Singlemode Fiber Patch Cable, LC/ST |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Fiber Cable Length | 15 M |
| Attenuation @ 1310NM | 0.36 dB/km |
| Attenuation @ 1550NM | 0.22 dB/km |
| Cable Jacket Color | Yellow |
| Insertion Loss | ≤ 0.30 dB |
| Endface Polish | UPC |
| Cable Jacket Material | LSZH |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, 400 Gbps |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Rating | OFNR |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Clad Diameter (microns) | 125 |
| Package Quantity | 1 |
