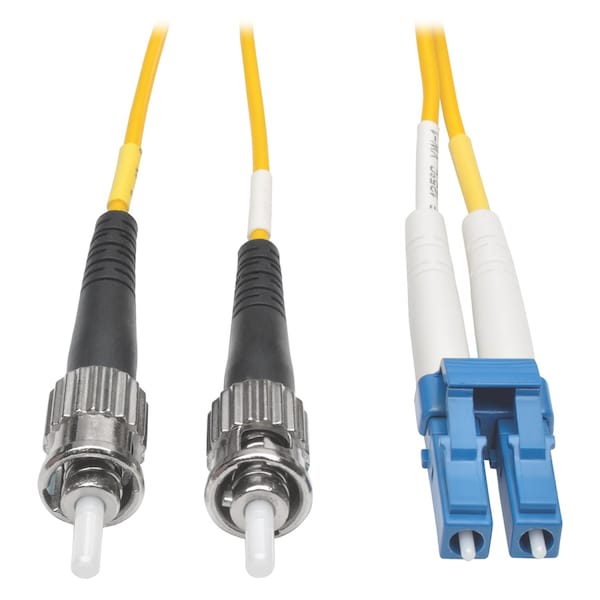

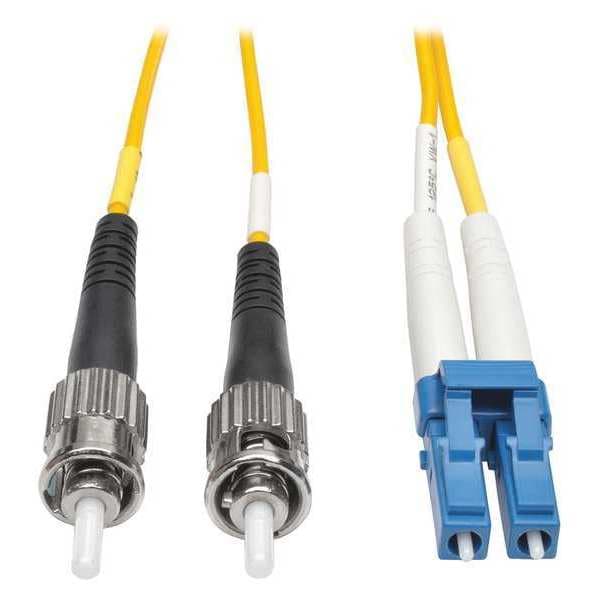

El cable de fibra óptica Tripp Lite Duplex Monomodo es ideal para redes de alta velocidad y larga distancia. Con conectores LC/ST y una longitud de 5 metros, es perfecto para aplicaciones profesionales.
| Item | Fiber Optic Cable,Dplx,SMF,8.3,LC/ST,5m |
|---|---|
| Color | Yellow |
| Cable Length | 16.4 ft |
| Core Diameter | 8.3 microns |
| Technology | Singlemode |
| Side A - Connector 1 | LC DUPLEX |
| Optical Mode | OS2 |
| Side B - Connector 1 | ST DUPLEX |
| Approvals | FDDI and OFNR rated |
| Clad Diameter | 125 micron |
| Cable Length (in.) | 196.9 |
| Cable Length (ft.) | 16.4 |
| Number of Fibers | 2 |
| Cable Jacket Rating | LSZH |
| Core/Cladding Diameter | 9/125 µm |
| Jacket Material | Polyvinyl Chloride |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Certifications & Standards | FDDI, OFNR |
| Connector on First End Details | 2 x LC - Male |
| Product Color | Yellow |
| Cable Characteristic | Patch Cable |
| Additional Information | Duplex singlemode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive |
| Package Contents | Fiber Optic Duplex Patch Cable, 5-meter ( 15ft ) Duplex Singlemode Fiber Patch Cable, LC/ST |
| Product Name | Fiber Optic Duplex Patch Cable |
| Connector on Second End Details | 2 x ST - Male |
| Package Includes | 5M (16.4-ft.) Duplex Singlemode Fiber Patch Cable, LC/ST |
| Clad Diameter (microns) | 125 |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | LSZH |
| Insertion Loss | ≤ 0.30 dB |
| Core Diameter (microns) | 9 |
| Endface Polish | UPC |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Network Compatibility | 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps, 400 Gbps |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Connector Color | White, Black, Blue |
| Attenuation @ 1310NM | 0.36 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 1550NM | 0.22 dB/km |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Fiber Cable Length | 5 M |
| Package Quantity | 1 |
