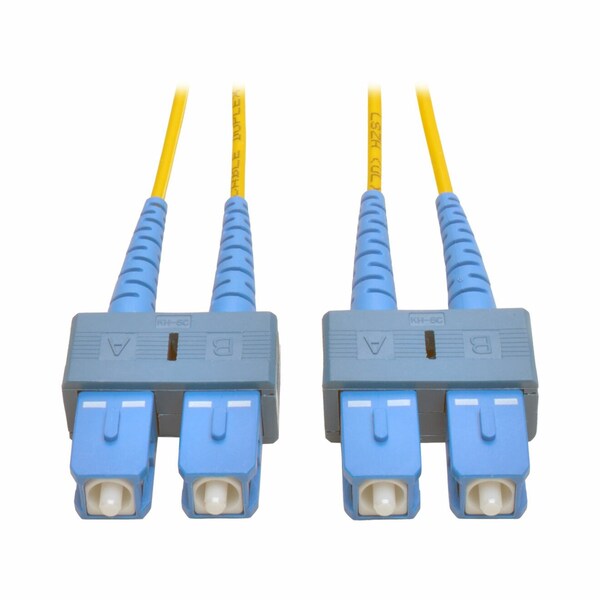

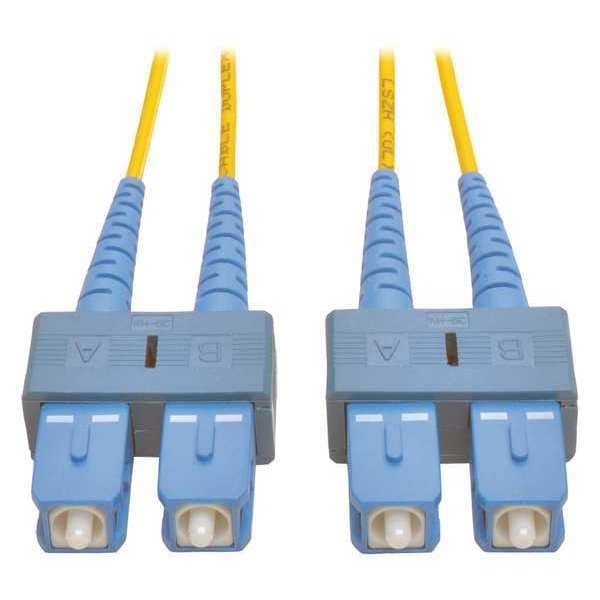

Fiber Optic Cable, Dplx, SMF, 8.3, SC/SC, 5m
| Item | Fiber Optic Cable,Dplx,SMF,8.3,SC/SC,5m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Yellow |
| Cable Length | 16.4 ft |
| Side B - Connector 1 | SC DUPLEX |
| Side A - Connector 1 | SC DUPLEX |
| Technology | Singlemode |
| Optical Mode | OS2 |
| Cable Jacket Rating | LSZH |
| Core Diameter | 8.3 microns |
| Cable Length (in.) | 196.9 |
| Approvals | FDDI and OFNR rated |
| Cable Length (ft.) | 16.4 |
| Clad Diameter | 125 micron |
| Product Color | Yellow |
| Certifications & Standards | FDDI |
| Package Contents | Fiber Optic Duplex Patch Cable, 5-meter ( 15ft ) Duplex Singlemode Fiber Patch Cable, SC/SC |
| Cable Type | Fiber Optic |
| Connector on Second End Details | 2 x SC Network - Male |
| Additional Information | Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Duplex singlemode fiber is most commonly used in LAN applications |
| Connector on First End Details | 2 x SC Network - Male |
| Core/Cladding Diameter | 9/125 µm |
| Product Name | Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Cable Characteristic | Patch Cable |
| Cable Jacket Material | LSZH |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 1550NM | 0.22 dB/km |
| Cable Jacket Color | Yellow |
| Core Diameter (microns) | 9 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Network Compatibility | 1 Gbps, 10 Gbps, 40 Gbps, 100 Gbps |
| Connector Color | Blue |
| Insertion Loss | ≤ 0.30 dB |
| Endface Polish | UPC |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Attenuation @ 1310NM | 0.36 dB/km |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Clad Diameter (microns) | 125 |
| Package Includes | 5M (16.4-ft.) Duplex Singlemode Fiber Patch Cable, SC/SC |
| Fiber Cable Length | 5 M |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Package Quantity | 1 |
