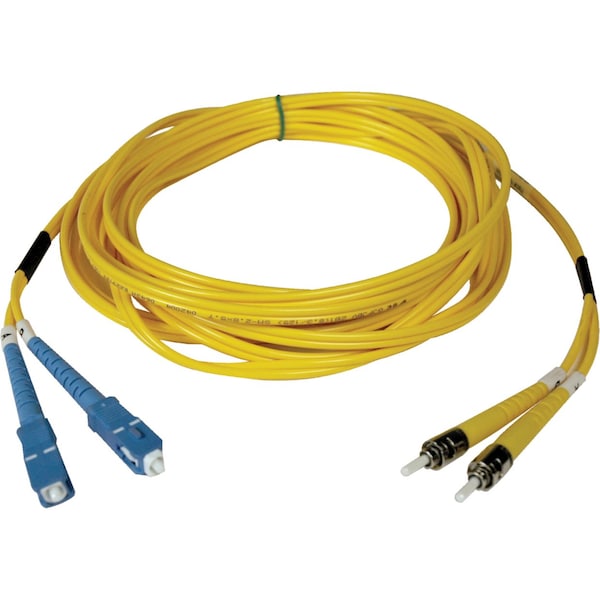

Fiber Optic Cable, Dplx, SMF, 8.3, SC/ST, 15m
| Item | Fiber Optic Cable,Dplx,SMF,8.3,SC/ST,15m |
|---|---|
| Color | Yellow |
| Cable Length | 49.2 ft |
| Side A - Connector 1 | SC DUPLEX |
| Cable Length (in.) | 590.6 |
| Technology | Singlemode |
| Clad Diameter | 125 micron |
| Side B - Connector 1 | ST DUPLEX |
| Cable Length (ft.) | 49.2 |
| Core Diameter | 8.3 microns |
| Optical Mode | OS2 |
| Number of Fibers | 2 |
| Approvals | FDDI and OFNR rated |
| Additional Information | Duplex singlemode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Core/Cladding Diameter | 9/125 µm |
| Connector on Second End Details | 2 x ST - Male |
| Product Name | Fiber Optic Duplex Patch Cable |
| Package Contents | Fiber Optic Duplex Patch Cable, 15-meter ( 50ft ) Duplex Singlemode Fiber Patch Cable, SC/ST |
| Product Color | Yellow |
| Certifications & Standards | FDDI, OFNR |
| Jacket Material | Polyvinyl Chloride |
| Product Type | Network Cable |
| Connector on First End Details | 2 x SC Network - Male |
| Fiber Cable Length | 15 M |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | LSZH |
| Attenuation @ 1550NM | 0.22 dB/km |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Connector Color | Black, Blue |
| Endface Polish | UPC |
| Insertion Loss | ≤ 0.30 dB |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Core Diameter (microns) | 9 |
| Package Includes | 15-meter ( 50ft ) Duplex Singlemode Fiber Patch Cable, SC/ST |
| Clad Diameter (microns) | 125 |
| Cable Jacket Rating | OFNR |
| Network Compatibility | 1 Gbps, 10 Gbps, 40 Gbps, 100 Gbps |
| Attenuation @ 1310NM | 0.36 dB/km |
| Package Quantity | 1 |
