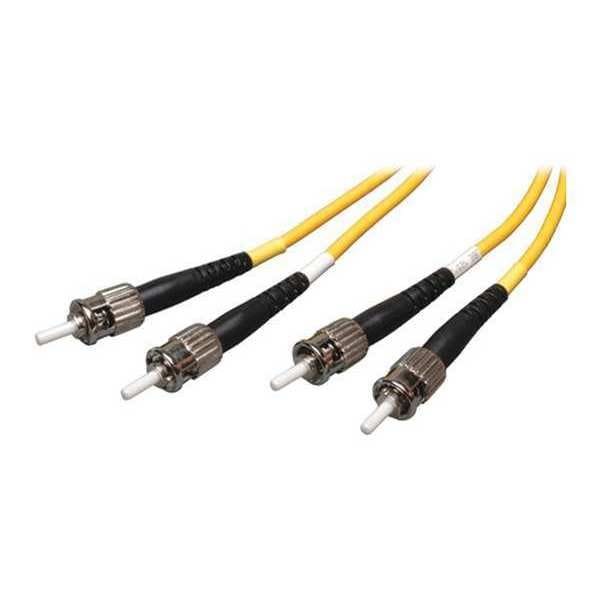

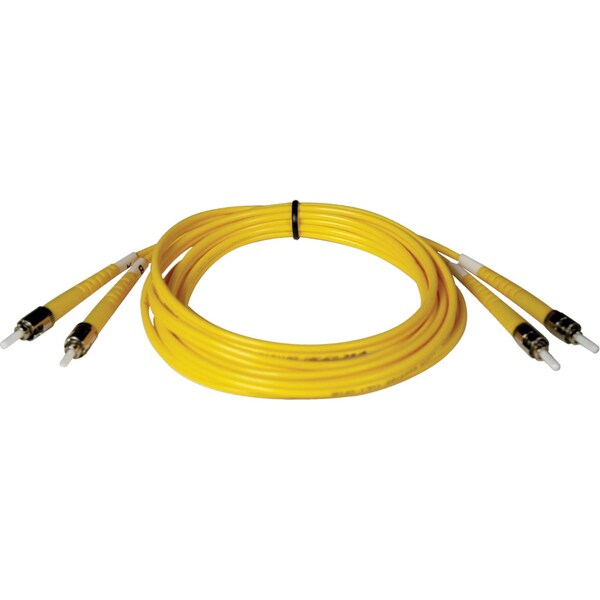

Este cable de fibra óptica Duplex de Tripp Lite es ideal para conexiones de larga distancia de alta velocidad. Con conectores ST/ST y una longitud de 1 metro, es perfecto para aplicaciones profesionales.
| Item | Fiber Optic Cable,Dplx,SMF,8.3,ST/ST,1m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Yellow |
| Cable Length | 3.3 ft |
| Technology | Singlemode |
| Clad Diameter | 125 micron |
| Optical Mode | OS2 |
| Cable Jacket Rating | LSZH |
| Cable Length (in.) | 39.4 |
| Side A - Connector 1 | ST DUPLEX |
| Core Diameter | 8.3 microns |
| Approvals | FDDI and OFNR rated |
| Cable Length (ft.) | 3.3 |
| Side B - Connector 1 | ST DUPLEX |
| Certifications & Standards | FDDI, OFNR |
| Product Color | Yellow |
| Core/Cladding Diameter | 9/125 µm |
| Cable Type | Fiber Optic |
| Connector on First End Details | 2 x ST - Male |
| Connector on Second End Details | 2 x ST - Male |
| Additional Information | Duplex singlemode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive |
| Product Name | Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Package Contents | Fiber Optic Duplex Patch Cable, 1-meter ( 3ft ) Duplex Singlemode Fiber Patch Cable, ST/ST |
| Cable Characteristic | Patch Cable |
| Attenuation @ 1310NM | 0.36 dB/km |
| Package Includes | 1-meter ( 3ft ) Duplex Singlemode Fiber Patch Cable, ST/ST |
| Insertion Loss | ≤ 0.30 dB |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Endface Polish | UPC |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Fiber Cable Length | 1 M |
| Attenuation @ 1550NM | 0.22 dB/km |
| Cable Jacket Material | LSZH |
| Connector Color | Black |
| Core Diameter (microns) | 9 |
| Cable Jacket Color | Yellow |
| Clad Diameter (microns) | 125 |
| Package Quantity | 1 |
