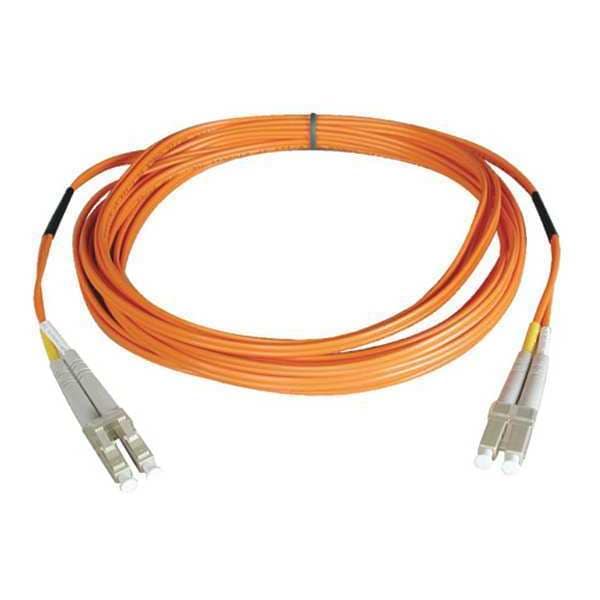

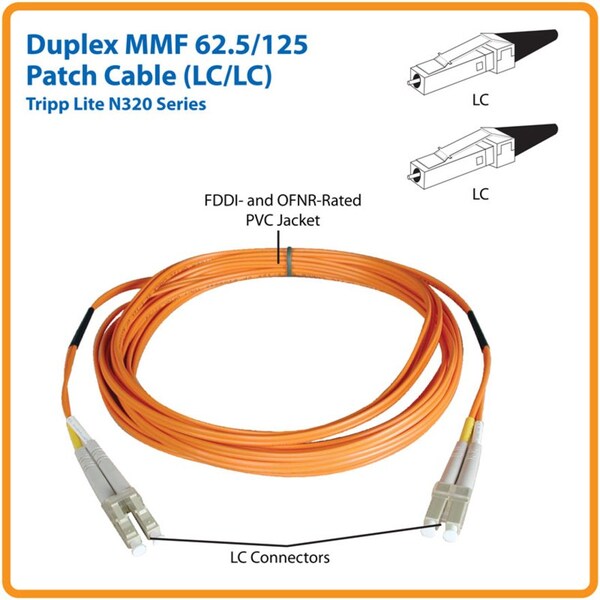

Fiber Optic Cable, MMF, 62.5, LC/LC, 61m
| Item | Fiber Optic Cable,MMF,62.5,LC/LC,61m |
|---|---|
| Color | Orange |
| Cable Length | 200 ft |
| Technology | Multimode |
| Optical Mode | OM1 |
| Clad Diameter | 125 micron |
| Approvals | FDDI and OFNR rated |
| Side B - Connector 1 | LC DUPLEX |
| Number of Fibers | 2 |
| Core Diameter | 62.5 microns |
| Network Speed | 1Gbps |
| Cable Length (ft.) | 200 |
| Side A - Connector 1 | LC DUPLEX |
| Cable Length (in.) | 2,401.6 |
| Cable Jacket Rating | LSZH |
| Connector on Second End Details | 2 x LC Network - Male |
| Cable Type | Fiber Optic |
| Connector on First End Details | 2 x LC Network - Male |
| Device Supported | Network Device |
| Core/Cladding Diameter | 62.5/125 µm |
| Product Type | Network Cable |
| Product Name | N320-61M Fiber Optic Duplex Cable |
| Fiber Optic Mode | Multi-mode |
| Insertion Loss | ≤ 0.20 dB |
| Core Diameter (microns) | 62.5 |
| Connector Color | Gray |
| Cable Jacket Color | Orange |
| Fiber Cable Length | 61 M |
| Network Compatibility | 1 Gbps, 10 Gbps |
| Attenuation @ 850NM | 3 dB/km |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Cable Jacket Material | LSZH |
| Endface Polish | PC |
| Package Includes | This 200-foot (61-meter) multimode duplex micron fiber optic LC/LC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has LC connectors on each end, a PVC jacket, and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications where links are 10 feet or less. |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Clad Diameter (microns) | 125 |
| Package Quantity | 1 |
