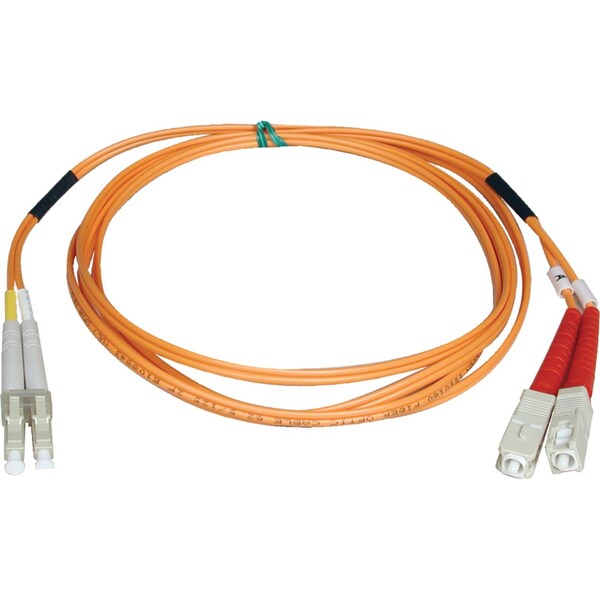

Fiber Optic Cable, MMF, 62.5, LC/SC, 13m
| Item | Fiber Optic Cable,MMF,62.5,LC/SC,13m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Orange |
| Cable Length | 42.7 ft |
| Optical Mode | OM1 |
| Cable Length (in.) | 511.8 |
| Cable Length (ft.) | 42.7 |
| Clad Diameter | 125 micron |
| Core Diameter | 62.5 microns |
| Side A - Connector 1 | LC DUPLEX |
| Approvals | FDDI and OFNR rated |
| Technology | Multimode |
| Side B - Connector 1 | SC DUPLEX |
| Network Speed | 1Gbps |
| Additional Information | Color coded shrouds identify transmit and receive, Insertion loss testing performed on every connector (0.2db typical) and provided with cable |
| Connector on First End Details | 2 x SC Network - Male |
| Connector on Second End Details | 2 x LC - Male |
| Product Type | Network Cable |
| Product Name | Fiber Optic Duplex Patch Cable |
| Cable Characteristic | Patch Cable |
| Certifications & Standards | FDDI, OFNR |
| Cable Type | Fiber Optic |
| Package Contents | Fiber Optic Duplex Patch Cable, 13 meter ( 40ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber |
| Core/Cladding Diameter | 62.5/125 µm |
| Product Color | Orange |
| Fiber Cable Length | 13 M |
| Clad Diameter (microns) | 125 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | LSZH |
| Endface Polish | PC |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Connector Color | White, Beige |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Core Diameter (microns) | 62.5 |
| Network Compatibility | 1 Gbps, 10 Gbps |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Cable Jacket Color | Orange |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 850NM | 3 dB/km |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Cable Jacket Rating | OFNR |
| Package Includes | 13 meter ( 40ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber |
| Package Quantity | 1 |
