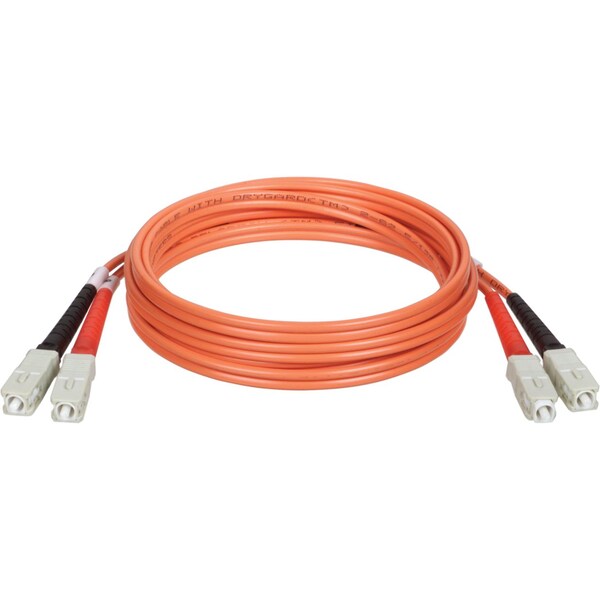

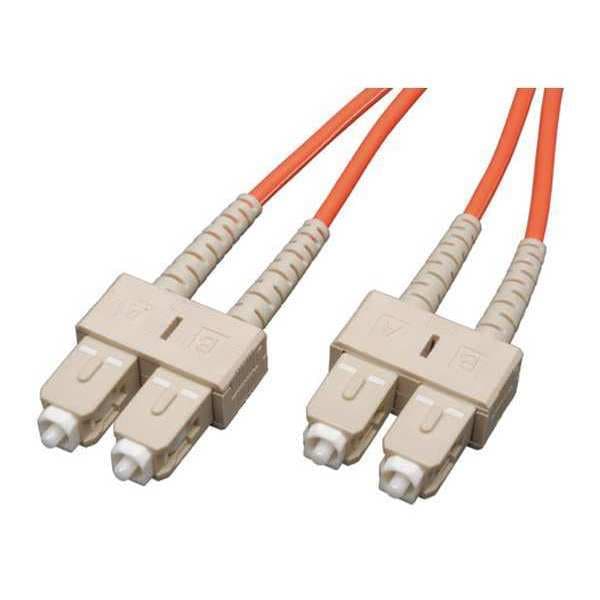

Fiber Optic Cable, MMF, 62.5, SC/SC, 15m
| Item | Fiber Optic Cable,MMF,62.5,SC/SC,15m |
|---|---|
| Jacket Material | Polyvinyl Chloride |
| Number of Fibers | 2 |
| Color | Orange |
| Cable Length | 49.2 ft |
| Network Speed | 1Gbps |
| Cable Length (ft.) | 49.2 |
| Core Diameter | 62.5 microns |
| Side A - Connector 1 | SC DUPLEX |
| Technology | Multimode |
| Cable Length (in.) | 590.6 |
| Approvals | FDDI and OFNR rated |
| Optical Mode | OM1 |
| Clad Diameter | 125 micron |
| Side B - Connector 1 | SC DUPLEX |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Connector on Second End Details | 2 x SC Network - Male |
| Package Contents | Fiber Optic Duplex Patch Cable, 15Meter (50ft) duplex MMF cable SC/SC 62.5/125 fiber |
| Additional Information | Duplex multimode fiber is most commonly used in LAN applications, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive |
| Cable Characteristic | Patch Cable |
| Product Name | Fiber Optic Duplex Patch Cable |
| Connector on First End Details | 2 x SC Network - Male |
| Core/Cladding Diameter | 62.5/125 µm |
| Product Color | Orange |
| Certifications & Standards | FDDI, OFNR |
| Connector Color | White |
| Fiber Cable Length | 15 M |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Network Compatibility | 1 Gbps, 10 Gbps |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Core Diameter (microns) | 62.5 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 850NM | 3 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Includes | 15Meter (50ft) duplex MMF cable SC/SC 62.5/125 fiber |
| Cable Jacket Material | LSZH |
| Cable Jacket Color | Orange |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Insertion Loss | ≤ 0.20 dB |
| Endface Polish | PC |
| Package Quantity | 1 |
