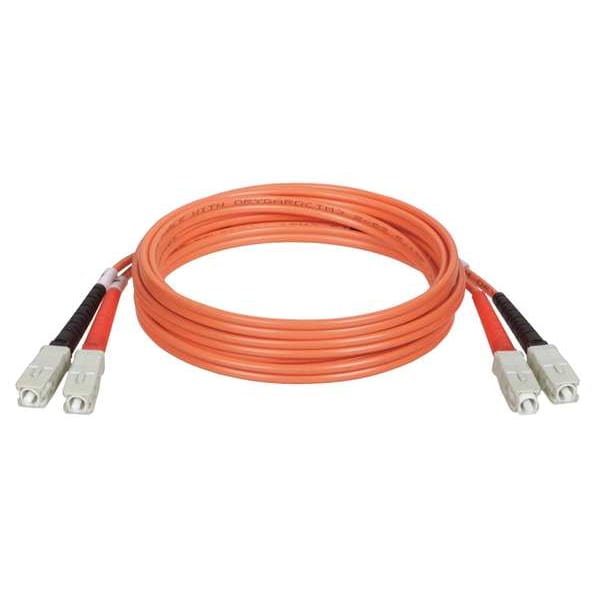

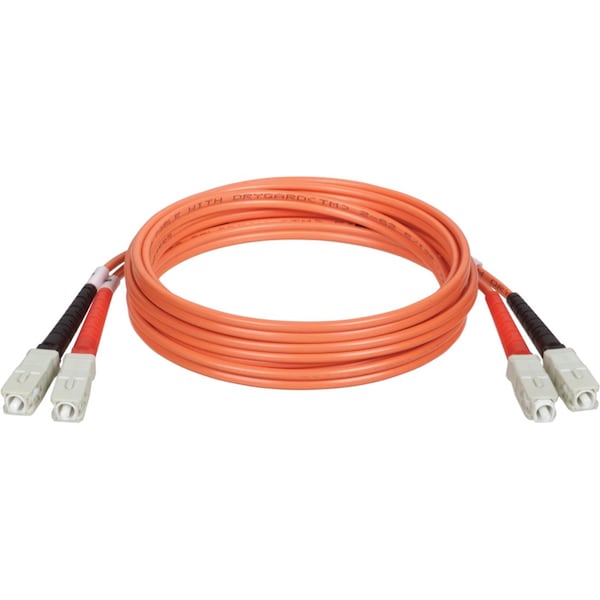

Fiber Optic Patch Cord, SC/SC, 1m, Orange
| Item - Data Cable | Fiber Optic Patch Cord |
|---|---|
| Fiber Optic Connector Type | SC |
| Simplex/Duplex/Multifiber | Duplex |
| Attenuation | 3.0 dB/km @ 850 Nanometers |
| Core Dimension - Fiber Optic Cable | 62.5 Micrometer |
| Fire Rating - Data Cable | Riser |
| Length - Patch Cord | 1 m |
| Jacket Color | Orange |
| Fiber Count - Fiber Optic Cable | 2 |
| Item | Fiber Optic Patch Cord |
| Single Mode/Multi-Mode | Multi-Mode |
| Connector Type - Patch Cord | SC |
| Color | Orange |
| Fiber Count | 2 |
| Jacket Type | PVC |
| Jacket Material - Wire and Cable | PVC |
| Length | 1 m |
| Standards | FDDI, REACH, RoHS Compliant |
| Core Dimension | 62.5 Micrometer |
| NEC Article and Type | OFNR |
| Clad Dimension | 125 micron |
| Bandwidth | 1 GBps, 10 GBps |
| Overall Length | 3 ft |
| Cable Length | 3 ft |
| Clad Diameter | 125 micron |
| Network Speed | 1Gbps |
| Approvals | FDDI and OFNR rated |
| Number of Fibers | Duplex |
| Cable Length (in.) | 36 |
| Optical Mode | OM1 |
| Cable Length (ft.) | 3 |
| Side B - Connector 1 | SC DUPLEX |
| Side A - Connector 1 | SC DUPLEX |
| Core Diameter | 62.5 microns |
| Technology | Multimode |
| Compatibility | Network Interface Card Fiber optic card requiring multimode duplex cable with SC/SC connectors |
| Certifications & Standards | FDDI, OFNR |
| Jacket Material | PVC |
| Package Contents | Fiber Optic Duplex Patch Cable, 3-ft. duplex MMF cable SC/SC 62.5/125 fiber |
| Connector on Second End Details | 2 x SC Network - Male |
| Additional Information | Applications: LAN, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer), Color coded shrouds identify transmit and receive |
| Product Color | Orange |
| Cable Type | Fiber Optic |
| Core/Cladding Diameter | 62.5/125 µm |
| Product Name | Fiber Optic Duplex Patch Cable |
| Connector on First End Details | 2 x SC Network - Male |
| Cable Characteristic | Patch Cable |
| Product Type | Network Cable |
| Maximum Distance | 3.0dB/km @ 800nm |
| Fire Rating | Riser |
| Fiber Material | Glass |
| End 2 Connection Type | SC |
| Mode | Multi-Mode |
| End 1 Connection Type | SC |
| Connector Color | White |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Minimum Bend Radius | 20 mm (Dynamic), 10 mm (Static) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Endface Polish | PC |
| Insertion Loss | ≤ 0.20 dB |
| Attenuation @ 850NM | 3 dB/km |
| Core Diameter (microns) | 62.5 |
| Cable Jacket Rating | OFNR |
| Package Includes | 3-ft. (0.91 m) duplex MMF cable SC/SC 62.5/125 fiber |
| Fiber Cable Length | 0.9 M |
| Network Compatibility | 1 Gbps, 10 Gbps |
| Cable Jacket Material | LSZH |
| Clad Diameter (microns) | 125 |
| Cable Jacket Color | Orange |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Package Quantity | 1 |
