Isolation Transformer, 1.8 kVA, Not Rated, 120V AC, 120V AC
| Item | Isolation Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Desk Top |
| Hz - Electrical | 60 |
| IP Rating | Not Rated |
| Outdoor Rated - Transformer | No |
| Color | White |
| NEMA Plug Configuration | 5-20P |
| NEMA Receptacle Configuration | 5-20R |
| Cord Length | 10 ft |
| Enclosure Type | Tower |
| Height | 7-3/4 in |
| Phase - Electrical | 1 |
| Includes | (6) Output Receptacles, Hospital-Grade Input Plug, Lighted Power Switch, Power Cord |
| Temp. Rise | Not Rated |
| Depth | 12.2 in |
| VA Rating - Transformer | 1.8 kVA |
| Output Voltage - Transformer | 120V AC |
| Standards | RoHS, TAA, UL 60601-1 |
| Width | 8-1/4 in |
| Number of Outlets | 6 |
| Let-through Voltage (Combination Wave) | 250V, L-N L-G: 250V N-G: 0.5V |
| Output Amp Capacity | 15 |
| Let-through Voltage (Ring Wave) | 20V L-G: 20V N-G: 0.5V, L-N |
| Protection Method | 1x thermal, 2 pole, 10 amp |
| Total Harmonic Distortion | Less than 1% |
| Leakage Current | Less than 100 microamps |
| Noise Suppression Rating | 35-65 DB |
| Cooling Method | Convection |
| Efficiency | 0.96 |
| Package Contents | Isolator IS1800HG 6 outlets Transformer, IS1800HG Isolation Transformer, NEMA5-15P replacement plug, User manual with warranty information |
| Additional Information | Hospital Grade Outlets and Plug, 20A circuit breaker, Total Harmonic Distortion: Less than 1%, Rugged all-metal unit housing, Cooling Method: Convection, Noise Suppression Rating: 35-65 DB, Suppression Joule Rating: 1190 (1020 input / 170 output), Efficiency: 96% |
| Output Receptacle Detail | 6 x NEMA 5-20R |
| TAA Compliant | Yes |
| Certifications & Standards | UL, cUL |
| Product Certifications | UL 60601-1 |
| Over Current Protection | 1 x Thermal, 2 Pole, 10 amp |
| Package Includes | IS1800HG Isolation Transformer;NEMA5-15P replacement plug;User manual with warranty information |

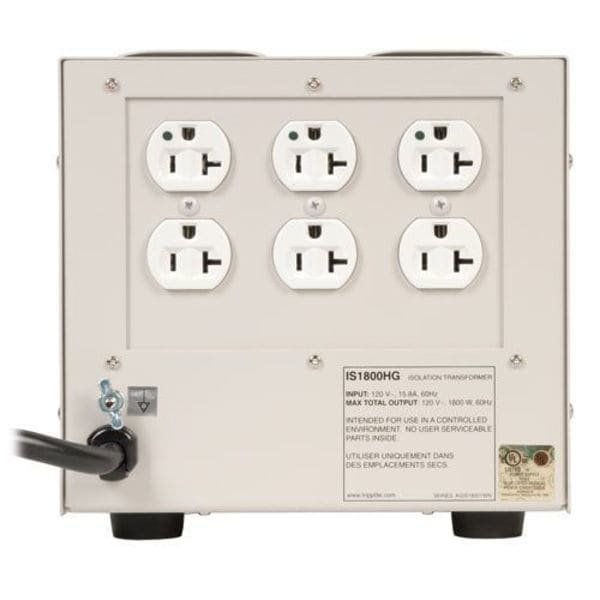

| Output Receptacles | (6) 5-20R-HG |
| Input Cord Length (ft.) | 10 |
| Product Compliance | Trade Agreements Act (TAA) |

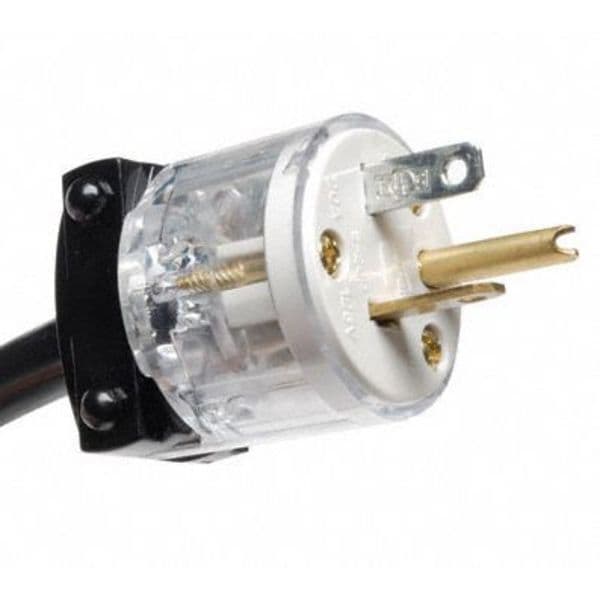

| Input Plug Type | NEMA 5-20P-HG |
| Hospital Grade Outlets | Hospital Grade |
| Includes Circuit Breaker | Circuit Breaker Included |
| Package Quantity | 1 |
