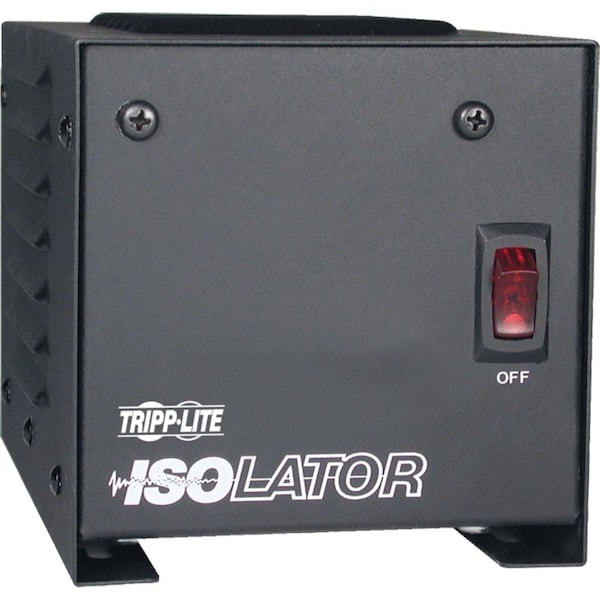

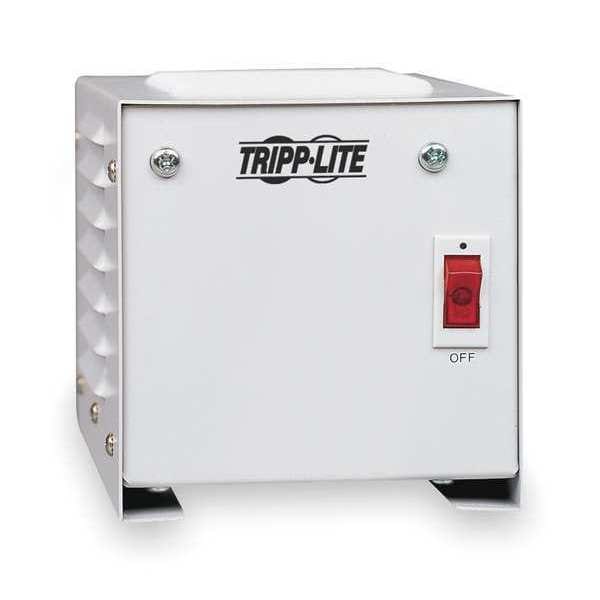

Isolation Transformer, 250 VA, Not Rated, 120V AC, 120V AC
| Item | Isolation Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Desk Top |
| Hz - Electrical | 60 |
| IP Rating | Not Rated |
| Outdoor Rated - Transformer | No |
| Color | Black |
| Temp. Rise | Not Rated |
| Phase - Electrical | 1 |
| Enclosure Type | Tower |
| Standards | CAN/CSA-C22.2 No. 107.1 (Canada), RoHS, TAA, UL 1021 |
| VA Rating - Transformer | 250 VA |
| Depth | 7-3/4 in |
| Height | 4-1/2 in |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration | 5-15P |
| Cord Length | 6 ft |
| Number of Outlets | 2 |
| Includes | (2) Output Receptacles, Lighted Power Switch, Power Cord |
| Output Voltage - Transformer | 120V AC |
| Width | 4-3/4 in |
| Input Circuit Breakers | One 3A thermal breaker |
| Total Harmonic Distortion | Less than 1% |
| Protection Method | Yes, 2A circuit breaker |
| Maximum Input Amps | 2.2 |
| Let-through Voltage (Combination Wave) | L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B |
| Receptacle Color | Black |
| Noise Suppression Rating | 33-65dB normal mode; >80dB common mode |
| Cooling Method | Convection |
| Let-through Voltage (Ring Wave) | L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A |
| Output Amp Capacity | 2.1 |
| Efficiency | 0.96 |
| Suppression Joule Rating | 680 |
| Compatibility | Point of Sale (POS) Equipment, Telecommunications Systems, Diagnostic Testing and Precise Measurement Devices, Sophisticated CAD/CAM Workstations, Computer Networking Equipment |
| Package Contents | IS250 Isolation Transformer System, Instruction Manual with Warranty Information |
| Power Handling | 250 VA |
| Circuit Breaker | Yes |

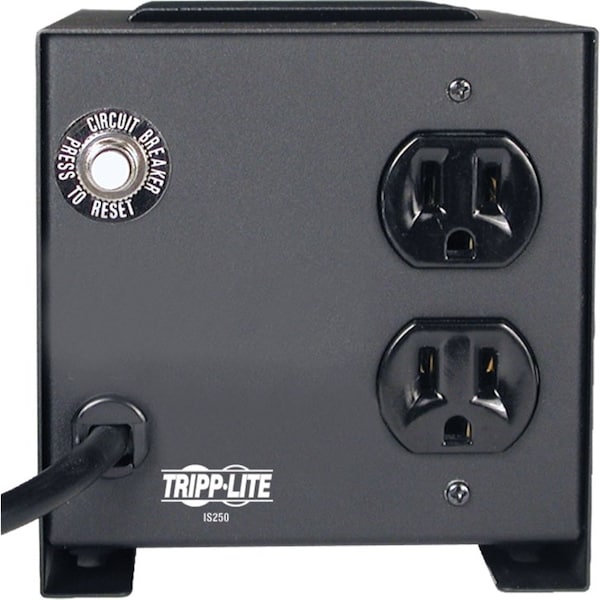

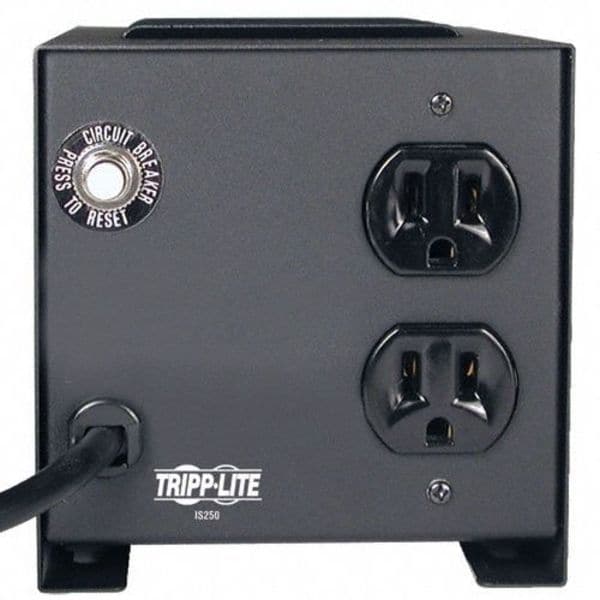

| Receptacles | 2 x NEMA 5-15R |
| Surge Energy Rating | 680 J |
| Certifications & Standards | UL, cUL |
| Protection Type | Surge |
| Power Cord/Cable Length | 6 ft |
| Plug/Connector Type | NEMA 5-15P |
| TAA Compliant | Yes |
| Additional Information | Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B, Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A, Noise Suppression Rating: 33-65dB normal mode; >80dB common mode, Surge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms, Total Harmonic Distortion: less than 1%, Transformer Type: Low impedence isolation transformer |
| Includes Circuit Breaker | Circuit Breaker Included |
| Package Quantity | 1 |
