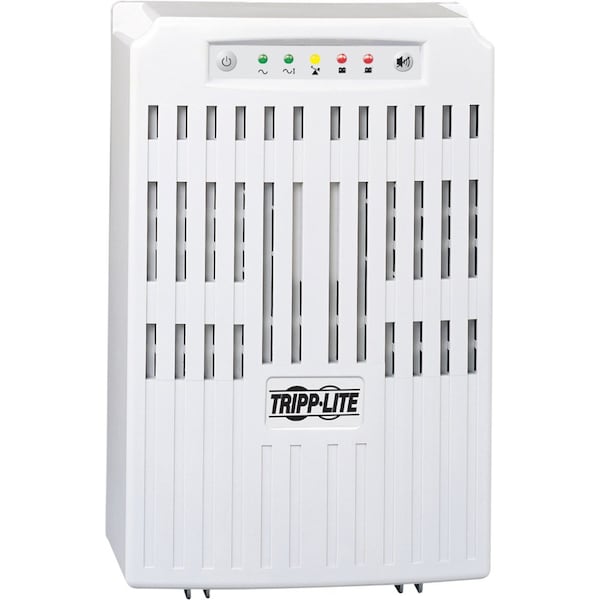

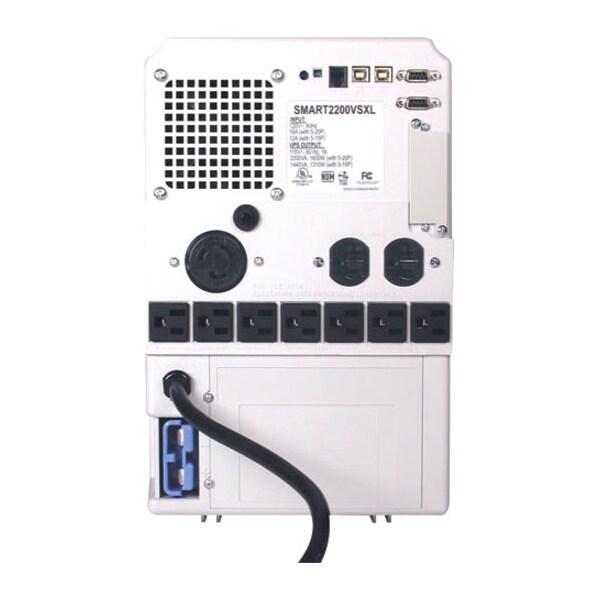

Line Interactive UPS, 2.2kVA, Line Interactive, Out: 110/115/120V AC In: 120V AC
| Item | Line Interactive UPS |
|---|---|
| VA Rating - UPS Systems | 2.2 kVA |
| UPS Type | Line Interactive |
| Power Rating | 2.2 kVA |
| Mounting | Tower |
| Wattage | 1.6 kW |
| Input Voltage | 120V AC |
| Output Voltage | 110/115/120V AC |
| Backup Time (Half/Full Load) | 19 min/7 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 10 |
| Ports | USB, DB9 Serial, and EPO |
| Phase | 1 |
| NEMA Plug Configuration | 5-20P |
| Cord Length | 8 ft. |
| Special Features | Extended Run |
| Width | 12 in |
| Depth | 12 in |
| Height | 14.2 in |
| Hz | 60 Hz |
| Transfer Time | 2 to 4 msec |
| NEMA Receptacle Configuration | L5-20R, 5-15R; 5-15/20R |
| Includes | PowerAlert Software and Cables |
| Input Current | 16 A |
| Automatic Volts Regulation | Yes |
| Standards | UL1778 (USA)cUL (Canada)NOM (Mexico)Emissions: FCC Class A |
| Display Type | LED |
| Fax/Modem Line Protection | No |
| Operating Temp. Range | 122°F (50°C) |
| Capacity - Batteries | 2200 VA/1600 W |
| Battery Type | Sealed Lead Acid |
| Housing Color | Gray |
| For Use with | Telecommunication, Network, Server |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature | 122°F |
| Hot Swappable | Yes |
| Circuit Breaker | Yes |
| USB | Yes |
| Application/Usage | Server, Network, Telecommunication |
| Serial Port | Yes |
| Load Capacity | 2200 VA/1600 W |
| Package Contents | SmartPro VS Expandable Tower 2200VA UPS, SMART 2200VSXL UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual |
| Surge Energy Rating | 1800 J |
| Battery Life | 6 yr |
| Status Indicators | Battery Charge Level, AC Line Power, Voltage Regulation, UPS Load Level, Low Battery / Replace Battery |
| Form Factor | Tower |
| Network Management | SNMP Manageable |
| Product Series | VS |
| Typical Battery Recharge Time | 4 hr |
| Alarm | Overload, Power Failure, Low Battery |
| Emergency Power OFF | Yes |
| Battery Characteristics | Maintenance-free |
| Total Number of Expansion Slots | 1 |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Additional Information | Supports extended runtime operation with optional BP48V18 battery packs, Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment, Thermal Dissipation: Line mode: Maximum 139.5 BTU/hr, Battery mode: Maximum 473 BTU/hr |
| Audible Noise | Audible Noise < 47dBA At Front Side 1 Meter |
| High Availability UPS Features | Hot swappable batteries |
| Low Voltage Transfer to Battery Power (Setpoint) | 79 |
| External Battery Pack Compatibility | BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible) |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD |
| Battery Access | Battery access door |
| Input Phase | Single-Phase |
| Input Circuit Breakers | 20A |
| Relative Humidity | 0 to 95%, non-condensing |
| Primary UPS Depth (mm) | 305 |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V |
| UPS Power Module Dimensions (hwd, in.) | 14.2 x 9.2 x 12 |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Primary Form Factor | Tower |
| Recommended Electrical Service | 20A 120V |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| Internal UPS Replacement Battery Cartridge | RBC54 |
| UPS Input Cord Length (ft.) | 8 |
| UPS AC Suppression Response Time | Instantaneous |
| UPS AC Suppression Joule Rating | 480 |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Primary UPS Height (mm) | 361 |
| Undervoltage Correction | Input voltages between 95 and 104 are boosted by 12% |
| Output Voltage Regulation (Line Mode) | -18% +8% |
| Output Capacity (VA) | 2,200 |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Rated input current (Maximum Load) | 16 A |
| AC Mode Efficiency Rating (100% Load) | 0.94 |
| Communications Cable | 2 USB and 2 DB9 cables included |
| Package Includes | SMART 2200VSXL UPS System;USB & DB9 serial cabling;Instruction manual |
| EMI / RFI AC Noise Suppression | Yes |
| Severe Undervoltage Correction | Input voltages between 79 and 94 are boosted by 24% |
| Individually Controllable Load Banks | Yes |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| DC System Voltage (VDC) | 48 |
| Output Capacity (Watts) | 1,600 |
| Communications Interface | Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB |
| Expandable Runtime | Yes |
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
| Nominal Output Voltage(s) Supported | 110 V, 115 V, 120 V |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total) |
| Cooling Method | Fan |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
| Battery Recharge Rate (Included Batteries) | Less than 4 hours from 10% to 90% (typical, full load discharge) |
| Load Management Receptacles | Three switchable single-outlet 5-15R load banks |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Package Quantity | 1 |
