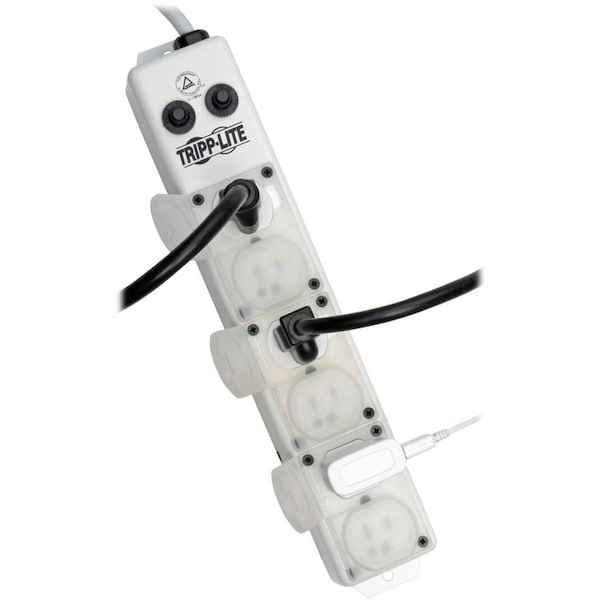

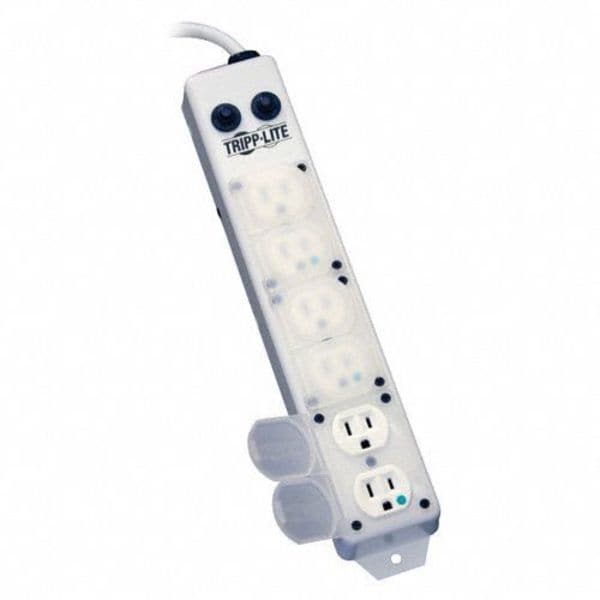

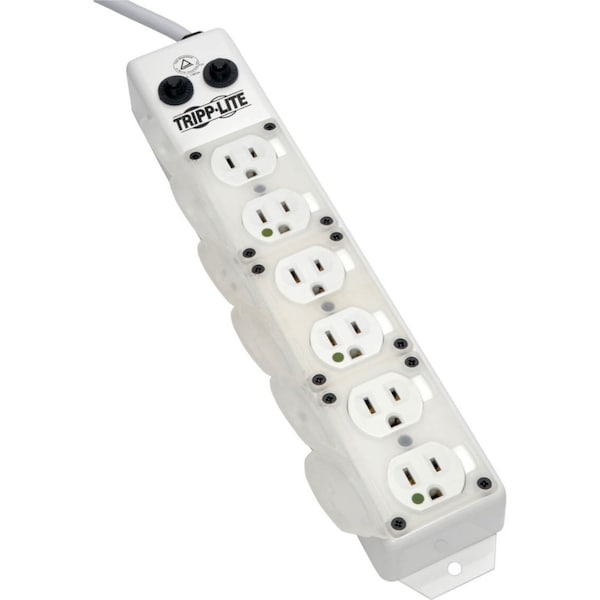

Outlet Strip, 15A, 6 Outlet, 15 ft.
| Item | Medical-Grade Power Strip |
|---|---|
| Number of Outlets | 6 |
| Amps | 15 |
| Voltage | 120VAC |
| Color | White |
| Cord Length | 15 ft |
| Number of Conductors | 3 |
| Gauge/Conductor | 14 ga. |
| Max. Amps | 15 |
| Mounting Style | Keyhole |
| Power Indicator | No |
| Housing Material | Metal |
| NEMA Receptacle Configuration | NEMA 5-15R-HG |
| Wire Size | 14 AWG |
| NEMA Plug Configuration | NEMA 5-15P-HG |
| Medical Facility Use | Patient Care - Only When Permanently Mounted (UL 1363A) |
| Max. Amps - Ext. Cords and Outlet Strips | 15 |
| Cord Length - Ext. Cords and Outlet Strips | 15 ft |
| Number of Power Switches | 0 |
| Medical Grade | Yes |
| Gauge/Conductor - Ext. Cords and Outlet Strips | 4.6667 |
| Length | 13-3/4 in |
| Number of Total Outlets - Ext. Cords and Outlet Strips | 6 |
| Footnotes | 6,12 |
| Width | 1-1/2 in |
| Number of Outlet Rows | 1 |
| Includes | User Manual with Warranty Information |
| Standards | TUV tested to UL 1363A |
| NEMA Plug Configuration - Ext. Cords and Outlet Strips | 5-15P-HG |
| NEC Cord Designation | SJT |
| Height | 2-1/2 in |
| Color - Ext. Cords and Outlet Strips | White |
| Circuit Breaker | 600VAC FD |
| For Use With | Mobile Carts, Instruments and Diagnostic Equipment, AC Power Distribution with Hospital-Grade Receptacles and Plug where Durability and reliability are Required |
| Number of Transformer Outlets | 0 |
| Depth | 1-1/2 in |
| Hz | 50/60 Hz |
| Outlet Center Distance | 1-1/8 in |
| Total Number of Outlets | 6 |
| Plug Configuration | Hospital Grade NEMA 5-15P |
| Receptacle Configuration | Hospital Grade NEMA 5-15R |
| Application | Healthcare Facility |
| Trade Designation | SJT |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 13-3/4 in |
| Features | Anti-Microbial Protected, Integrated Keyhole Mounting Slots |
| Watts | 1800W |
| Outlet Configuration | Single Row of 6 |
| Product Color | White |
| Product Type | Power Strip |
| Package Contents | PS-615-HG-OEM 6 Outlets Power Strip, PS-615-HG-OEM, User manual with warranty information |
| Plug/Connector Type | NEMA 5-15P-HG |
| Receptacles | 6 x NEMA 5-15R-HG |
| Input Voltage | 120 V AC |
| Product Material | Metal |
| Maximum Input Current | 15 A |
| Product Name | PS-615-HG-OEM 6-Outlets Power Strip |
| Maximum Frequency | 60 Hz |
| Built-In Circuit Breaker | Yes |
| Outlets Measurement (Center to Center) | 1.52 in |
| Frequency Compatibility | 50 / 60 Hz |
| Circuit Breaker (amps) | 15 |
| Output Receptacles | 5-15R-HG |
| Input Plug Type | NEMA 5-15P-HG |
| Material of Construction | Metal |
| Mounting Holes or Slots | Yes |
| Outlet Orientation | Single row of 6 |
| Transformer Accommodation | Yes |
| Power Cord Color | White |
| Included Mounting Accessories | Mounting tabs and flanges |
| Antimicrobial | Yes |
| Overload Protection | 2 x 15amp breakers (1 line, 1 neutral) |
| Product Certifications | UL 1363A |
| Switches | No power switch |
| Package Includes | PS-615-HG-OEM UL 1363A Medical-Grade Power Strip with six 15A Hospital-Grade Outlets, Safety Outlet Covers and 15-ft. (4.57 m) Cord;Owner's Manual with maintenance requirements |
| Right-Angle Plug | No |
| Input Plug Features | Hospital Grade Plug |
| Housing Color | White |
| Form Factors Supported | IV poles, mobile carts, crash carts and mobile medical workstations |
| Mounting Details | Includes flanges |
| Product Compliance | NFPA 99: 10.2.3.6 |
| Receptacle Color | White |
| Voltage Compatibility (VAC) | 120 |
| Recommended Electrical Service | 15A 120V |
| Input Cord Length (ft.) | 15 |
| Input Cord Gauge Type | SJT, 14 gauge |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Slot or Hole Mount Measurement (Center to Center) | Distance between end tabs = 330.20mm |
| Unit Dimensions (hwd / in.) | 1.5 x 13.75 x 2.5 |
| Package Quantity | 1 |
