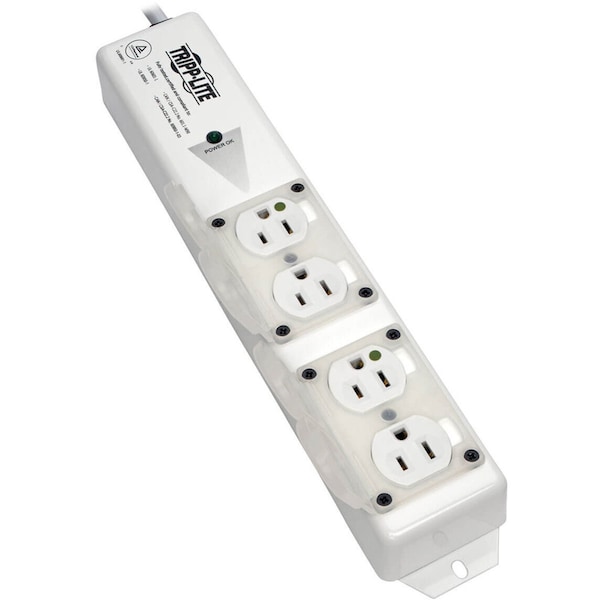

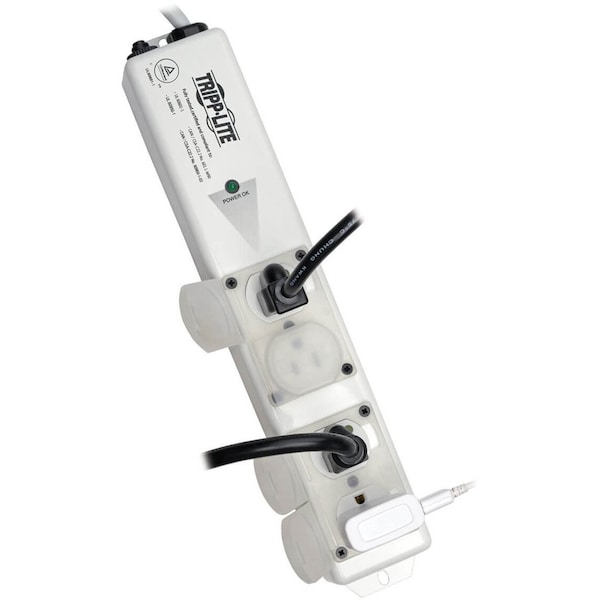

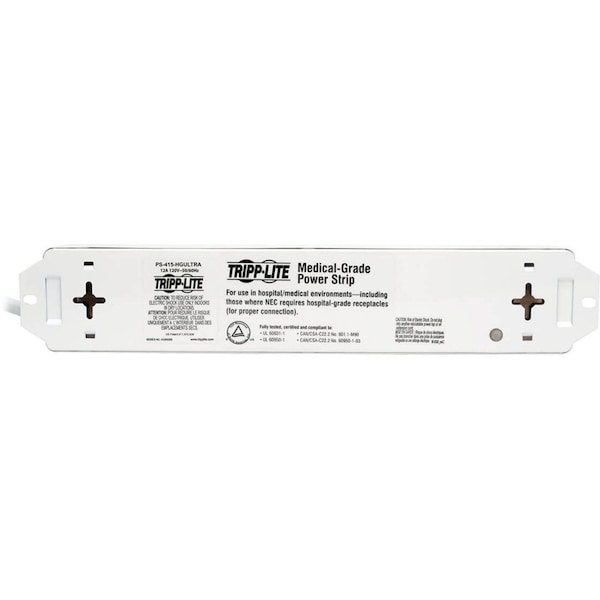

Outlet Strip, 6 ft. Cord L, 1-1/2" H
| Item | Medical Grade Power Strip |
|---|---|
| Number of Outlets | 4 |
| Receptacle Configuration | Hospital Grade NEMA 5-15R |
| Plug Configuration | Hospital Grade NEMA 5-15P |
| Cord Length | 6 ft |
| Color | White |
| Standards | UL 60601-1 |
| For Use With | Industrial, Automotive, Factory and Hardware Environments |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Height | 1-1/2 in |
| Outlet Center Distance | 3-5/8 in |
| Width | 2-1/2 in |
| Voltage | 120VAC |
| Circuit Breaker | No |
| Color - Ext. Cords and Outlet Strips | White |
| Number of Outlet Rows | 1 |
| NEC Cord Designation | SJT |
| Max. Amps - Ext. Cords and Outlet Strips | 15 |
| NEMA Receptacle Configuration | NEMA 5-15R-HG |
| Number of Power Switches | 0 |
| Power Indicator | Yes |
| Medical Grade | Yes |
| Cord Length - Ext. Cords and Outlet Strips | 6 ft |
| Number of Total Outlets - Ext. Cords and Outlet Strips | 4 |
| NEMA Plug Configuration - Ext. Cords and Outlet Strips | 5-15P-HG |
| Mounting Style | Keyhole |
| Gauge/Conductor - Ext. Cords and Outlet Strips | 4.6667 |
| Length | 13-3/4 in |
| Housing Material | Metal |
| NEMA Plug Configuration | NEMA 5-15P-HG |
| Hz | 60 Hz |
| Medical Facility Use | Patient Care (UL 60601-1) |
| Max. Amps | 15 |
| Special Features | Antimicrobial |
| Depth | 2-1/2 in |
| Includes | PS-406-HGULTRA 4-Outlet Power Strip Owner's Manual with Maintenance Requirements |
| Material | Metal |
| Number of Transformer Outlets | 2 |
| Wire Size | 14 AWG |
| Trade Designation | SJT |
| Number of Conductors | 3 |
| Total Number of Outlets | 4 |
| Application | Healthcare Facility |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 13-3/4 in |
| Features | Anti-Microbial Protected, Integrated Keyhole Mounting Slots |
| Green Certification or Other Recognition | RoHS, TÃœV |
| Watts | 1800W |
| Outlet Configuration | Single Row of 4 |
| Form Factor | External |
| Receptacles | 4 x NEMA 5-15R-HG |
| Maximum Input Current | 15 A |
| Product Material | Metal |
| Product Type | Power Strip |
| Maximum Frequency | 60 Hz |
| Input Voltage | 120 V AC |
| Product Name | PS-406-HGULTRA 4-Outlet Power Strip |
| Package Contents | PS-406-HGULTRA 4-Outlet Power Strip, Owner's Manual with Maintenance Requirements |
| Plug/Connector Type | NEMA 5-15P-HG |
| Certifications & Standards | UL Listed Certification, TUV |
| Unit Dimensions (hwd / in.) | 1.5 x 13.75 x 2.5 |
| Recommended Electrical Service | 15A 120V |
| Mounting Holes or Slots | Yes |
| Outlets Measurement (Center to Center) | 3.62 in |
| Right-Angle Plug | No |
| Product Compliance | NFPA 99: 10.2.3.6 |
| Housing Color | White |
| Slot or Hole Mount Measurement (Center to Center) | Distance between keyhole tabs = 261.92mm; Distance between end tabs = 334.01mm |
| Power Cord Color | White |
| Included Mounting Accessories | Mounting tabs and flanges |
| Built-In Circuit Breaker | Yes |
| Receptacle Color | White |
| Input Plug Features | Hospital Grade Plug |
| Output Receptacles | 5-15R-HG |
| Overload Protection | 15A resettable circuit breaker |
| Input Cord Length (ft.) | 6 |
| Transformer Accommodation | Yes |
| Nominal Input Voltage(s) Supported | 120 V AC |
| Material of Construction | Metal |
| Antimicrobial | Yes |
| Circuit Breaker (amps) | 15 |
| Product Certifications | CSA (Canada); CAN/CSA-C22.2 No. 601.1; CAN/CSA-C22.2 No. 601.1-M90 (Canada); CAN/CSA-C22.2 No. 60950-1 (Canada); UL 60950-1; UL 1363; UL 60601-1 |
| Mounting Details | Includes flanges |
| Outlet Orientation | Single row of 4 |
| Switches | No power switch |
| Voltage Compatibility (VAC) | 120 |
| Input Plug Type | NEMA 5-15P-HG |
| Frequency Compatibility | 50 / 60 Hz |
| Package Includes | PS-406-HGULTRA UL 60601-1 Medical-Grade Power Strip;Owner's manual with maintenance requirements |
| Package Quantity | 1 |
