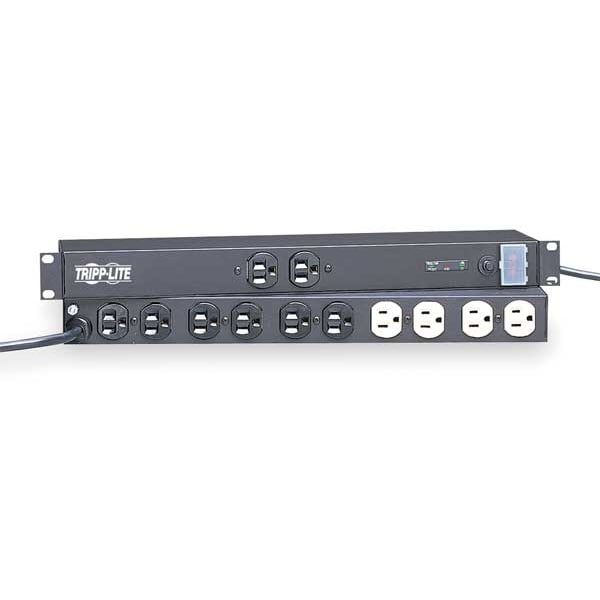

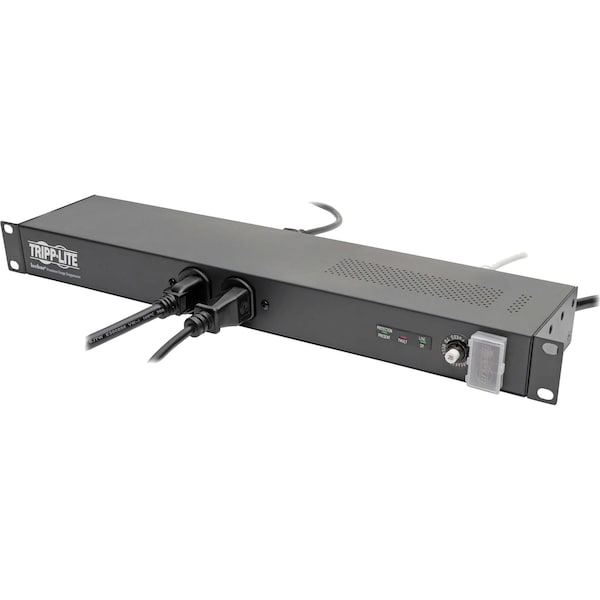

PDU, 120V, 12 Outlet, 15 ft., Black
| Item | Network Server Surge Protector |
|---|---|
| Number of Outlets | 12 |
| Cord Length | 4.57 m |
| Color | Black |
| Standards | ANSI C62.41, Conforms to IEE 587, RoHS Compliant |
| Voltage | 120VAC |
| Circuit Breaker | Yes |
| Receptacle Type | NEMA 5-15R |
| Housing Material | Metal |
| Metered | Non-Metered |
| Mounting Style | Rack |
| Max. Amps | 20 |
| GFCI Protected | No |
| Length | 19 in |
| Power Indicator | Yes |
| Outlet Surge Protection | Yes |
| Width | 4 in |
| Height | 1-3/4 in |
| Phase | Single |
| Plug Type | NEMA 5-20P |
| Special Features | Rated 3840 Joules |
| Outlet Center Distance | 38.9mm Front and 40.65mm Rear |
| Includes | Mounting Brackets |
| NEMA Plug Configuration | NEMA 5-20P |
| Rated Joules | 3840 J |
| Noise Attenuation | 40 to 80 dB |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Coax Surge Protection | No |
| Depth | 4 in |
| Hz | 50/60 Hz |
| Telephone/Fax Surge Protection | No |
| Max. Surge Current | 96 kA |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 19 in |
| Features | Diagnostic LED(s), Integrated Keyhole Mounting Slots, Transparent locking switch cover prevents accidental shutoff, Safe Thermal Fusing |
| Overall Length | 4 in |
| Overall Width | 17-1/2 in |
| Overall Height | 1-3/4 in |
| Watts | 2400W |
| Receptacles | 12 x NEMA 5-20R |
| Maximum Line Current | 20 A |
| Protection Type | Surge |
| Certifications & Standards | UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications |
| Surge Energy Rating | 3840 J |

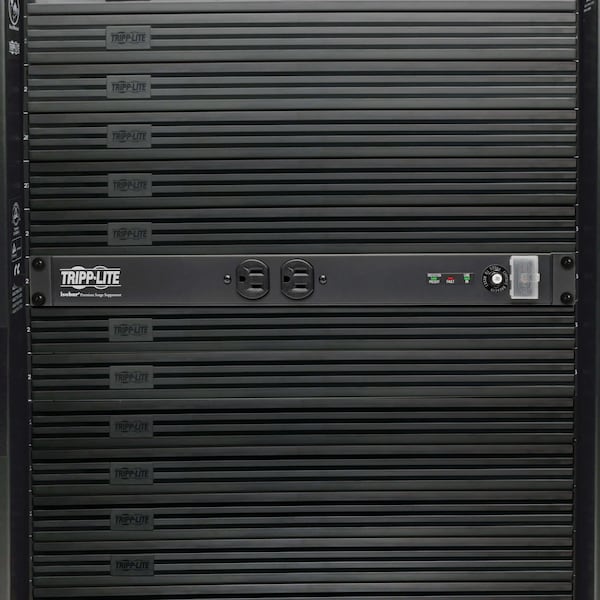

| Additional Information | Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options, Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks), 3840 joules / 60,000 amp network-grade AC surge suppression with EMI/RFI filtering, 12 output receptacles outlets (2 front mounted NEMA 5-15R / 10 rear mounted NEMA 5-20R), 15 foot AC cord with NEMA 5-20P straight-in plug connection, Diagnostic LEDs confirm proper wiring and suppressor operation, Front panel power switch with snap-in cover prevents accidental turn off, 20 amp electrical capacity with circuit breaker, 120VAC, 50/60Hz electrical compatibility, $25,000 Ultimate Lifetime Insurance (USA & Canada Only), Lifetime product warranty |
| Status Indicators | Line fault, Line OK, Protection present |
| Product Name | IBAR12/20ULTRA |
| Input Voltage | 120 V AC |
| Power Cord/Cable Length | 15 ft |
| Compatibility | TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more |
| Package Contents | IBAR12/20ULTRA, IBAR12/20ULTRA Surge Suppressor, Warranty information, Instruction manual |
| Output Voltage | 120 V AC |
| Plug/Connector Type | NEMA 5-20R |
| Built-In Circuit Breaker | Yes |
| Maximum Current | 20 A |
| Distance Between Rear Outlets | 1-5/8 in |
| Distance Between Front Outlets | 1-1/2 in |
| Maximum Input Voltage | 120 V AC |
| Rack Units | 1 |
| Package Quantity | 1 |
