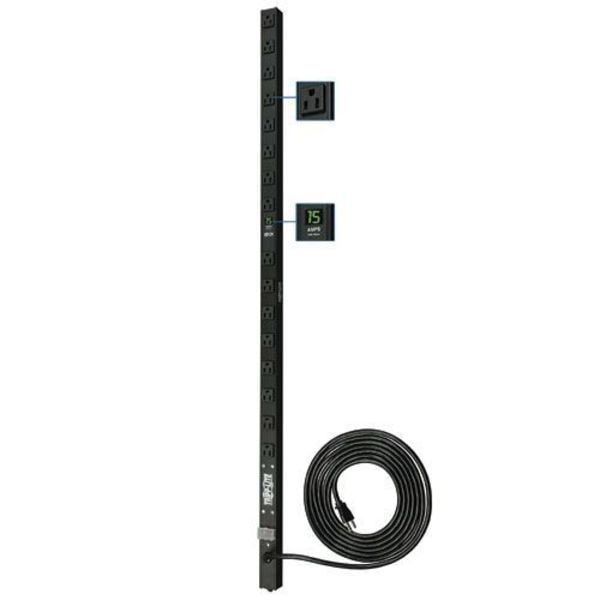

PDU, 15A, 16 Outlet, 15 ft, Silver
| Item | Single-Phase Metered PDU |
|---|---|
| Number of Outlets | 16 |
| Cord Length | 4.57 m |
| Color | Silver |
| Standards | CE, EAC, FCC Part 15 Class A, RoHS Compliant, TAA Compliant |
| Includes | Mounting Hardware, Spare Mounting Buttons |
| GFCI Protected | No |
| Max. Amps | 15 |
| Circuit Breaker | Yes |
| Width | 1-1/2 in |
| Length | 48 in |
| Phase | Single |
| Receptacle Type | NEMA 5-15R |
| Housing Material | Metal |
| Voltage | 120V |
| Special Features | 0U Vertical Rackmount, Convenient and Safe Covered On/Off Switch, Digital Current Monitoring Display |
| Mounting Style | Vertical Rackmount/0U |
| Metered | Non-Metered |
| Height | 3 in |
| Outlet Surge Protection | No |

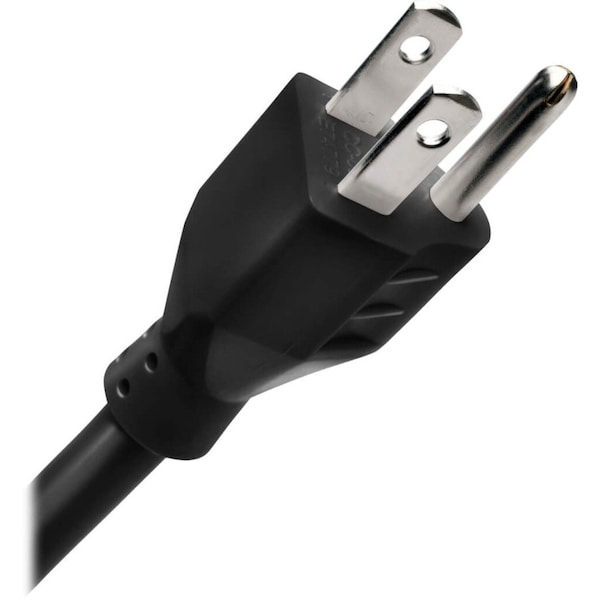

| Plug Type | NEMA 5-15P |
| Power Indicator | Yes |
| Hz | 50/60 Hz |
| NEMA Plug Configuration | NEMA 5-15P |
| Depth | 1-1/2 in |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 48 in |
| Overall Length | 1-5/8 in |
| Features | Covered On/Off Switch |
| Overall Height | 48-1/2 in |
| Overall Width | 1-1/2 in |
| Watts | 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) |
| Output Voltage | 120 V AC |
| Protection Type | Overload Protection |

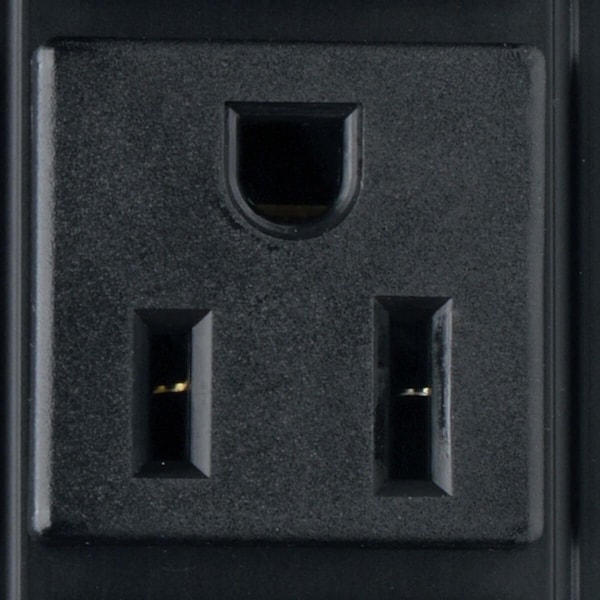

| Receptacle Detail | 16 x NEMA 5-15R |
| Mounting Orientation | Vertical |
| Certifications & Standards | UL60950-1, CAN/CSA C22.2 No. 60950-1-03 |
| Mount Type | Rack-mountable |
| Plug/Connector Type | NEMA 5-15P |
| Package Contents | PDUMV15 PDU Metered 120V 15A 16 Outlet, PDUMV15 Metered Vertical PDU, Mounting hardware, 6 outlet safety covers, Owner's manual with warranty information |
| Product Name | PDUMV15 PDU Metered 120V 15A 16 Outlet |
| Input Voltage | 120 V AC |
| Power Rating (VA) | 1,800 |
| Manufacturers Warranty Length | 2 yr |
| Maximum Input Voltage | 120 V AC |
| Rack Units | Not Applicable |
| Maximum Current | 12 A |
| Maximum Operating Temperature | 104 deg F |
| Minimum Operating Temperature | 32 deg F |
| Built-In Circuit Breaker | Yes |
| Maximum Output Voltage | 120V AC |
| Maximum Input Amps | 12 |
| PDU Plug Type | NEMA 5-15P |
| Form Factors Supported | Vertical (0U) mounting in rack enclosures |
| PDU Input Voltage | 120 |
| Output Capacity Details | 1.44kW (120V) / 12A total capacity; 12A max per outlet |
| Unit Dimensions (hwd / in.) | 48.47 x 1.5 x 1.64 |

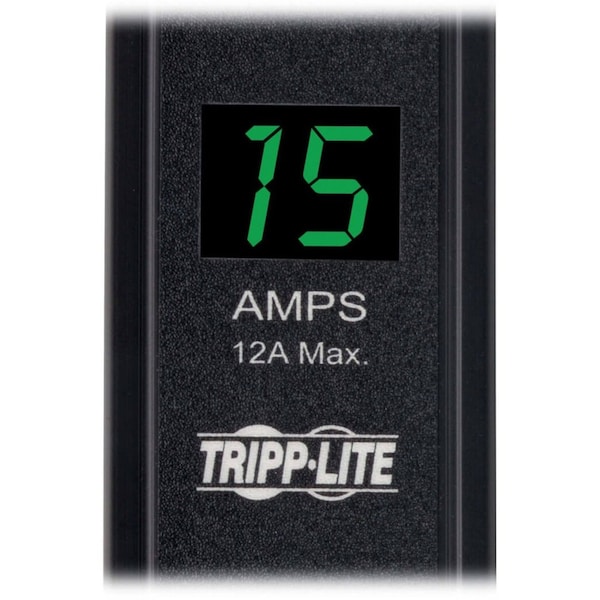

| Front Panel LCD Display | Digital meter reports PDU output current in amps |
| Relative Humidity | 5% to 95% non-condensing |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Overload Protection | 15A circuit breaker |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Operating Elevation (ft.) | 0-10,000 |
| Input Cord Length (ft.) | 15 |
| Input Phase | Single-Phase |
| PDU Type | Local Metered |
| Recommended Electrical Service | Single-phase 15A 120V service |
| Frequency Compatibility | 50 / 60 Hz |

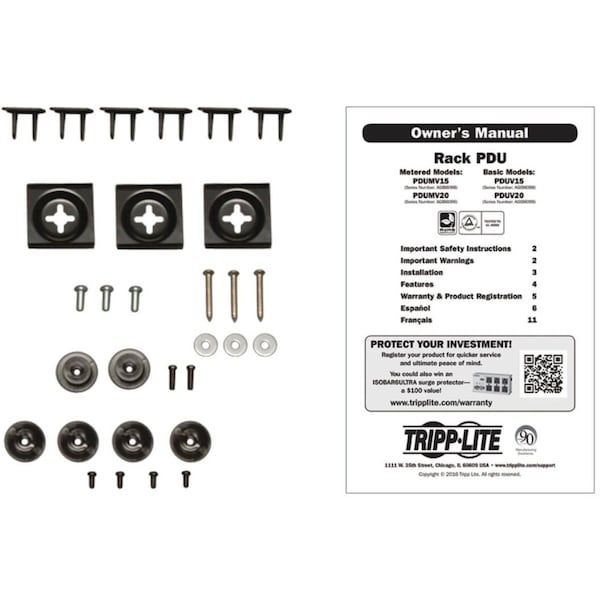

| Package Includes | PDUMV15 Local Metered Vertical PDU;Mounting hardware and spare mounting buttons;Owner's manual with warranty information |
| Switches | Lighted on/off switch with transparent switch cover |
| PDU Form Factor | Vertical |
| Output Nominal Voltage | 120V |
| Output Receptacles | 5-15R |
| Product Certifications | RETIE (Colombia); NOM (Mexico); UL 60950-1 |
| Material of Construction | Metal |
| Package Quantity | 1 |
