PDU, 20A, 10 Outlet, 12 ft, Black
| Item | Single-Phase Metered PDU |
|---|---|
| Number of Outlets | 10 |
| Cord Length | 3.66 m |
| Color | Black |
| Standards | CE, EAC, FCC Part 15 Class A, RoHS Compliant, TAA Compliant |
| GFCI Protected | No |
| Voltage | 208/240V |
| Outlet Surge Protection | No |
| Housing Material | Metal |
| Special Features | Real-Time Local Reporting of Load Level in Amps via Built-in Digital Meter |
| Length | 6-1/2 in |
| Mounting Style | Horizontal Rackmount/1U |
| Circuit Breaker | No |
| Phase | Single |
| Power Indicator | No |
| Width | 17-1/2 in |
| Receptacle Type | (2) C19, (8) C13 |
| Height | 1-3/4 in |

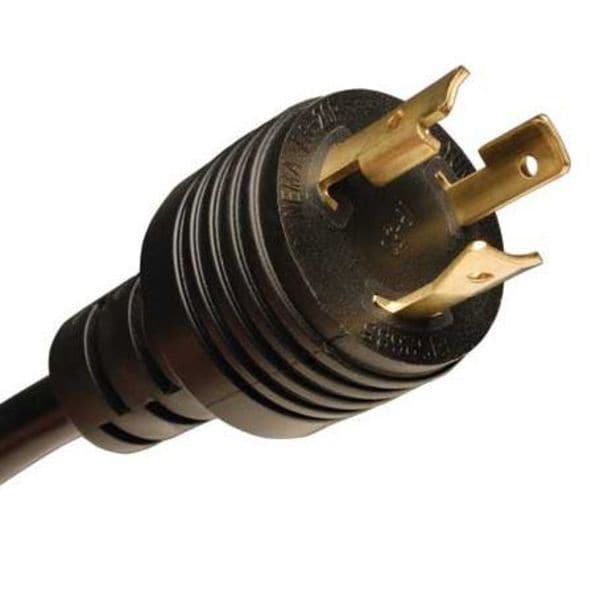

| Plug Type | NEMA L6-20P |
| Includes | 12 ft Power Cord |
| Max. Amps | 20 |
| Metered | Yes |
| Depth | 6-1/2 in |
| Green Environmental Attribute | Yes |
| Hz | 50/60 Hz |
| NEMA Receptacle Configuration | C13, C19 |
| NEMA Plug Configuration | NEMA L6-20P |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 6-1/2 in |
| Overall Width | 6-1/2 in |
| Features | Rear Grounding Lug |
| Overall Height | 1-1/8 in |
| Overall Length | 17-1/2 in |
| Green Certification or Other Recognition | RoHS |
| Mouting Style | Rack-mountable |
| Watts | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) |
| TAA Compliant | Yes |
| Output Voltage | 208 V AC, 230 V AC, 240 V AC |
| Package Contents | Metered PDUMH20HV 10-Outlets PDU, Rackmount Brackets, Cord Retention Brackets |
| Protection Type | Overload Protection |
| Mount Type | Rack-mountable |
| Input Voltage Range | 200 AC to 240 V AC |
| Plug/Connector Type | NEMA L6-20P, IEC 60320 C20 |
| Input Voltage | 230 V AC |
| Product Name | Metered PDUMH20HV 10-Outlets PDU |
| Receptacle Detail | 8 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Product Series | Metered |
| Mounting Orientation | Horizontal |
| Rack Height | 1 U |
| Built-In Circuit Breaker | Yes |
| Minimum Operating Temperature | 32 deg F |
| Maximum Operating Temperature | 104 deg F |
| Maximum Output Voltage | 208/230V AC |
| Maximum Current | 16 A |
| Rack Units | 1 |
| Maximum Input Voltage | 230 V AC |
| Manufacturers Warranty Length | 2 yr |
| Recommended Electrical Service | Single-phase 16/20A 230/208V service |
| Input Cord Length (ft.) | 12 |
| Input Connection Type | C20 inlet |
| PDU Plug Type | IEC-320 C20, NEMA L6-20P |
| PDU Type | Local Metered |
| Maximum Input Amps | 16 |
| PDU Input Voltage | 208, 230 |
| Minimum Required Rack Depth (inches) | 9.5 |
| Output Capacity Details | 3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Input Phase | Single-Phase |
| Frequency Compatibility | 50 / 60 Hz |
| Form Factors Supported | 1U rackmount. Includes mounting accessories for 2-4 post racks |
| Output Receptacles | C13, C19 |
| Product Compliance | CE (Europe); EAC (Belarus, Kazakhstan, Russia); FCC Part 15 Class A (USA); UKCA; Trade Agreements Act (TAA) |
| Product Certifications | IEC 62368-1; RETIE (Colombia); GOST (Russia); NOM (Mexico) |
| Output Nominal Voltage | 208/230V |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Input Cord Details | Includes 12 ft. / 3.6m C19 to C20 power cable and L6-20P plug adapter |
| Operating Elevation (ft.) | 0-10,000 |
| Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 6.5 |
| Grounding | Rear grounding lug |

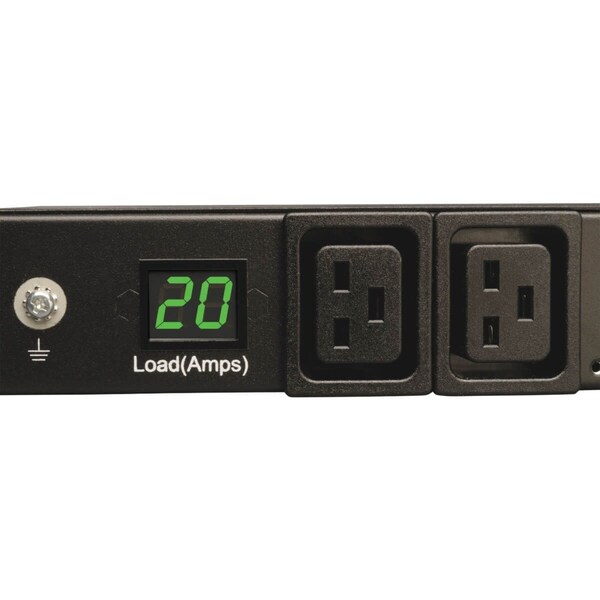

| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Material of Construction | Metal |

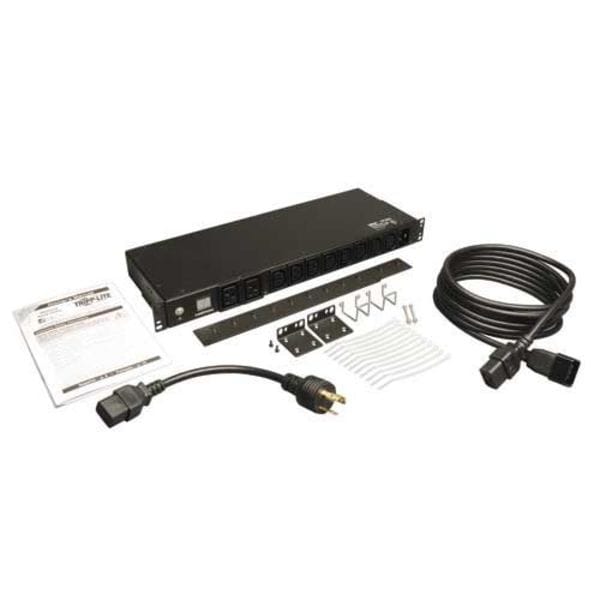

| Package Includes | Rackmount PDU;C19 to L6-20P plug adapter;Rack mounting brackets |
| PDU Form Factor | Horizontal |
| Package Quantity | 1 |
