PDU, 20A, 13 Outlet, 15 ft, Black
| Item | Single-Phase Basic PDU |
|---|---|
| Type | Basic |
| Number of Outlets | 13 |
| Cord Length | 4.57 m |
| Color | Black |
| Standards | CE, EAC, FCC Part 15 Class A, RoHS Compliant, TAA Compliant |
| Includes | Mounting Hardware |
| Length | 4-1/2 in |

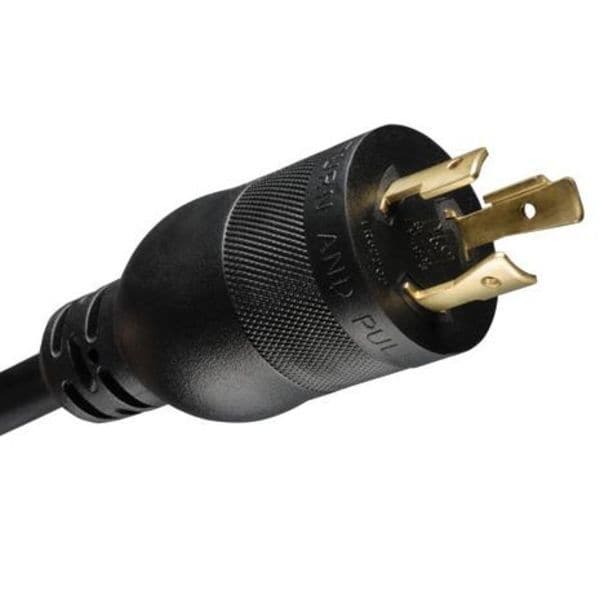

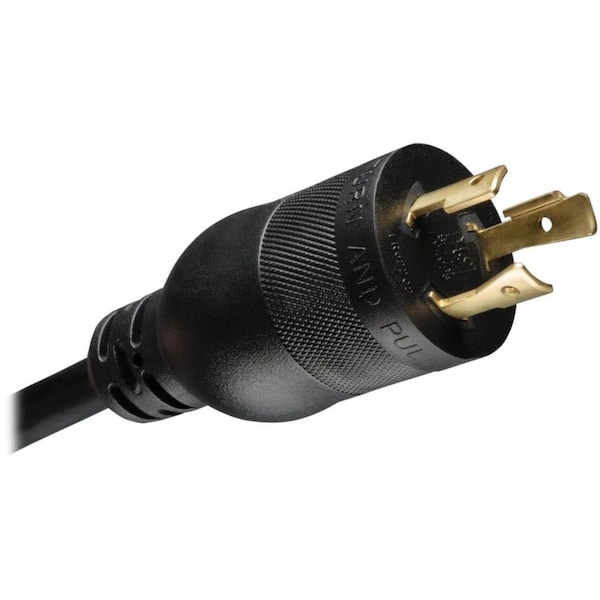

| Plug Type | NEMA L5-20P |
| Width | 17-1/2 in |
| GFCI Protected | No |
| Metered | Non-Metered |
| Height | 1-3/4 in |
| Max. Amps | 20 |
| Outlet Surge Protection | No |
| Receptacle Type | NEMA 5-15/20R |
| Phase | Single |
| Housing Material | Metal |
| Special Features | Detachable Mounting Flanges |
| Voltage | 120VAC |
| Circuit Breaker | No |
| Power Indicator | No |
| Mounting Style | Horizontal Rackmount/1U |
| Outlet Center Distance | 30.2 mm |
| NEMA Plug Configuration | NEMA L5-20P |
| Hz | 50/60 Hz |
| NEMA Receptacle Configuration | NEMA 5-15/20R |
| Frequency | 50/60 Hz |
| Length (Straight Wireway) | 4-1/2 in |
| Overall Height | 1-3/4 in |
| Overall Width | 17-1/2 in |
| Overall Length | 4-1/2 in |
| Features | For Use With Audio/Video and Sound Reinforcement Applications |
| Watts | 2.5kW (127V), 2.4kW (120V), 2.0kW (100V) |
| Mount Type | Rack-mountable |
| Certifications & Standards | UL, cUL |
| Product Name | PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet |
| Plug/Connector Detail | 1 x NEMA L5-20P |
| Input Voltage | 120 V AC |
| PDU Type | Basic |
| Package Contents | PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet, PDU1220T Rackmount Power Strip, Instruction manual and warranty information |
| Output Voltage | 120 V AC |
| Number of Cord/Cable | 1 |
| Compatibility | TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment |
| Receptacle Detail | 13 x NEMA 5-20R |
| Rack Height | 1 U |
| Additional Information | Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - When placed in traditional 1U rackmount installation, attractive all-metal housing offers the appearance of a 1U blanking panel to the front, protecting the 12 rear-facing output receptacles - 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs - 15 foot AC cord NEMAL5-20P twist-lock plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 20 amp electrical capacity with circuit breaker - 120V AC, 50/60Hz electrical compatibility |
| Manufacturers Warranty Length | 5 yr |
| Maximum Current | 20 A |
| Built-In Circuit Breaker | Yes |
| Maximum Operating Temperature | 104 deg F |
| Maximum Input Voltage | 120 V AC |
| Rack Units | Not Applicable |
| Maximum Output Voltage | 120V AC |
| Minimum Operating Temperature | 32 deg F |
| PDU Plug Type | NEMA L5-20P |
| Frequency Compatibility | 50 / 60 Hz |
| Input Cord Length (ft.) | 15 |
| Overload Protection | 20A circuit breaker |
| Output Nominal Voltage | 120V |
| Input Phase | Single-Phase |
| PDU Input Voltage | 120 |
| Output Receptacles | 5-15/20R |
| Outlets Measurement (Center to Center) | 30.2 mm |
| Product Certifications | RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363 |
| Output Capacity Details | 2.4kW (120V) / 20A total capacity; 16A max per 5-15/20R outlet |
| Unit Dimensions (hwd / in.) | 1.75 x 20 x 4.5 |
| Material of Construction | Metal |
| Maximum Input Amps | 20 |
| Operating Elevation (ft.) | 0-10,000 |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Recommended Electrical Service | Single-phase 20A 120V service |
| Switches | No power switch |
| PDU Form Factor | Horizontal |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Grounding | Grounding lug |
| Package Includes | PDU1220T 2.4kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual |
| Relative Humidity | 5% to 95% non-condensing |
| Form Factors Supported | 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported |
| Minimum Required Rack Depth (inches) | 9.5 |
| Package Quantity | 1 |
