PDU, 3-Ph, ATS, 8.6kW, 48 C13, 6 C19, 0U
| Item | 3-Phase Vertical PDU Strip |
|---|---|
| Number of Outlets | 54 |
| Voltage | 208V |
| Cord Length | 0.76 m |
| Number of Conductors | 7 |
| Max. Amps | 35 |
| Mounting Style | Vertical Rackmount/0U |
| Housing Material | Metal |
| NEMA Receptacle Configuration | C13, C19 |
| Height | 70 in |
| Width | 2.2 in |
| Hz | 50/60 Hz |
| Includes | 7 Conductor Input Plug |
| Depth | 2.2 in |
| Phase | 3 |
| Standards | UL60950-1, CSA, NOM, FCC Class A |
| Frequency | 50/60 Hz |
| Watts | 12.6kW |
| Input Voltage Range | 200 AC to 240 V AC |
| Product Type | PDU |
| Power Rating (Watt) | 12.6 kW |
| Input Current | 35 A |
| Input Voltage | 230 V AC |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 230 V AC, 240 V AC, 200 V AC, 220 V AC, 208 V AC |
| Product Name | PDU3V20D354B 54-Oultet PDU |
| Receptacle Detail | 48 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Rack Height | 0 U |
| Output Nominal Voltage | 200; 208; 220; 230; 240 |
| Form Factors Supported | Vertical rackmount installation supported with toolless mounting in button-mount compatible racks |
| Accessories (Included) | Mounting hardware |
| Input Cord Length (ft.) | 2.5 |
| PDU Form Factor | Vertical |
| Maximum Input Amps | 35 |
| Package Includes | PDU3V20D354B 8.6/12.6kW 3-Phase Vertical PDU Outlet Strip |
| Operating Temperature Range | 0 to 50C (32 to 122F) |
| Frequency Compatibility | 50 / 60 Hz |
| Operating Elevation (ft.) | 0-10,000 |

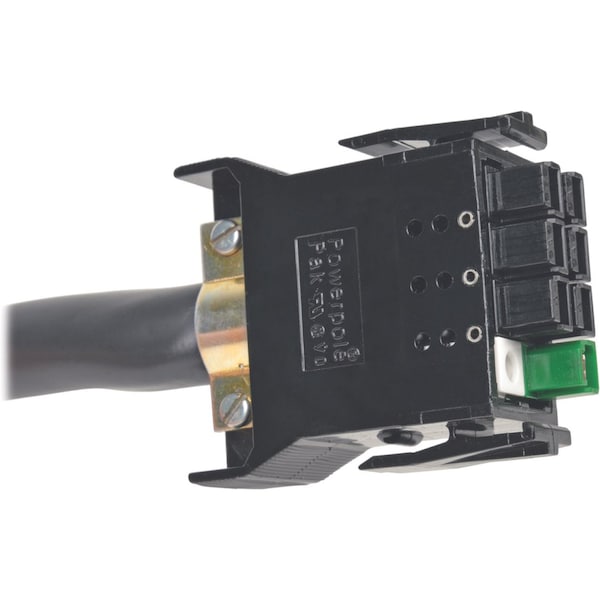

| Input Cord Details | Includes 7 conductor input plug for use with compatible Tripp Lite ATS PDU products only |
| Relative Humidity | 5-95% non-condensing |
| Accessory Type | 0U Strip for 3-Phase ATS PDU |
| Material of Construction | Metal |
| Input Phase | 3-Phase |
| Output Receptacles | C13, C19 |
| Unit Dimensions (hwd / in.) | 70 x 2.2 x 2.22 |

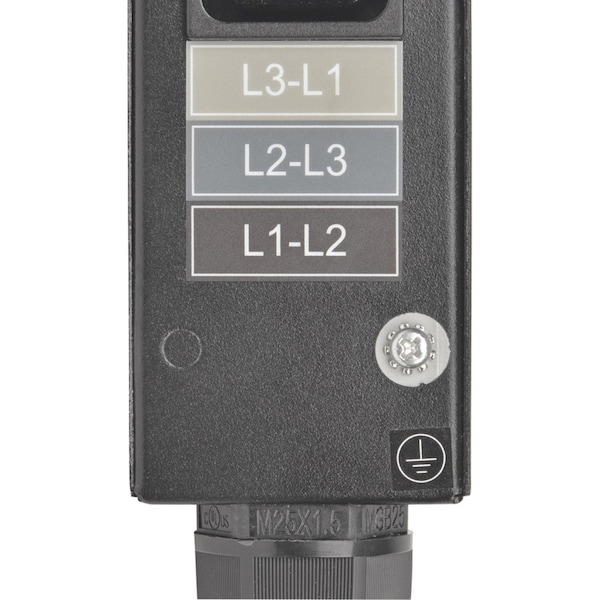

| Output Capacity Details | Supports up to 12.6kW total output; 20A max per output phase (L1-L2, L2-L3, L3-L1) when used with 35A max 208V input ATS models (such as PDU350AT6H50); Supports up to 8.6kW total output; 13.9A max per output phase (L1-L2, L2-L3, L3-L1) when used with 24A max 208V input ATS models (such as PDU330AT6L2130, PDU330AT6L1530 and PDU330AT6L15); All configurations: 16A max per C19 outlet, 12A max per C13 outlet |
| Storage Temperature Range | -15C to 60C (5 to 140F) |
| Package Quantity | 1 |
