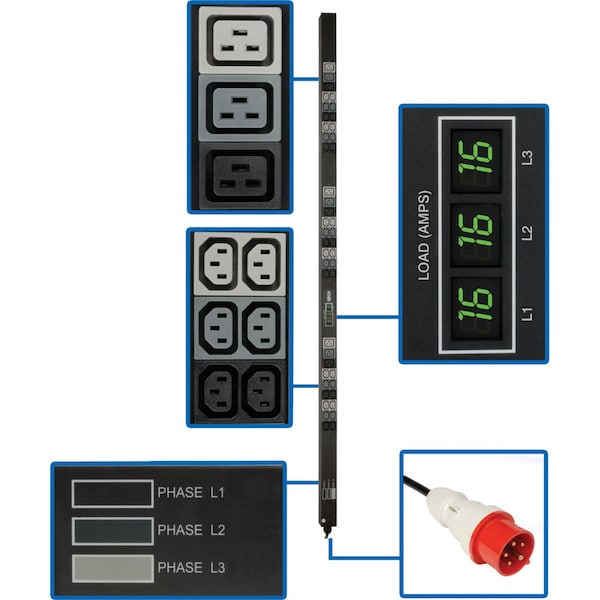

PDU, 3-Ph, Metered, 11.5kW, 36 C13, 9 C19, 0U
| Item | 3-Phase Metered PDU |
|---|---|
| Number of Outlets | 45 |
| Cord Length | 1.83 m |
| Standards | UL, CSA, NOM, CE (EU), Class A, TAA Compliant |
| Metered | Yes |
| Voltage | 400/230V |
| Depth | 1.9 in |
| Width | 2.2 in |
| Height | 70 in |
| NEMA Receptacle Configuration | C13, C19 |
| Mounting Style | Vertical Rackmount/0U |
| Includes | Mounting Brackets |
| Hz | 50/60 Hz |
| Max. Amps | 16 |
| Phase | 3 |
| Housing Material | Metal |
| NEMA Plug Configuration | IEC-309 16/20A RED (3P+N+E) |
| Frequency | 50/60 Hz |
| Features | Set of 3 Digital Meters |
| Watts | 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V) |
| Plug/Connector Type | IEC 60309 16A |
| Product Name | Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU |
| Mounting Orientation | Vertical |
| Package Contents | Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU, Cord Retention Brackets, Mounting Brackets |
| Input Voltage Range | 380 AC to 415 V AC |
| Power Rating (VA) | 11,500 |
| Output Voltage | 220 V AC, 230 V AC, 240 V AC |
| Product Series | Metered |
| Receptacle Detail | 9 x IEC 60320 C19, 36 x IEC 60320 C13 |
| Product Type | PDU |
| Mount Type | Rack-mountable |
| TAA Compliant | Yes |
| Maximum Input Amps | 16 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Package Includes | Local Metered rackmount PDU with pre-installed mounting buttons;Cord retention brackets;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Output Receptacles | C13, C19 |
| Output Capacity Details | 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A max (10A CE) per C13 outlet |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Operating Elevation (ft.) | 0-10,000 |
| PDU Input Voltage | 360, 380, 400, 415 |
| Material of Construction | Metal |
| Unit Dimensions (hwd / in.) | 70 x 2.2 x 1.93 |
| Input Phase | 3-Phase |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Recommended Electrical Service | Three-phase 16A 360-415V service |
| Product Certifications | IEC 62368-1; RETIE (Colombia); NOM (Mexico); UL 62368-1 |
| PDU Type | Local Metered |
| PDU Form Factor | Vertical |
| Reported Load Segments | Supports local monitoring of current for each output phase (16A balanced max per output load banks L1, L2 and L3); Outlets are color-coded and labeled for easy phase and load bank identification; L1-N feeds black outlets; L2-N feeds dark-gray outlets; L3-N feeds light-gray outlets |
| Front Panel LCD Display | Set of 3 digital meters report per-phase output current in amps (L1, L2, L3) |
| Output Nominal Voltage | 208-240V |
| Frequency Compatibility | 50 / 60 Hz |
| Input Cord Length (ft.) | 6 |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| PDU Plug Type | IEC-309 16/20A RED |
| Package Quantity | 1 |
