PDU, 3-Ph, Metered, 14.4kW, C13/19, L6-30R, 0U
| Item | 3-Phase Metered PDU |
|---|---|
| Number of Outlets | 45 |
| Cord Length | 1.83 m |
| Standards | UL60950-1, NOM, Class A, TAA Compliant |
| Height | 70 in |
| Max. Amps | 40 |
| Includes | Mounting Brackets |
| Depth | 2.2 in |
| Phase | 3 |
| Width | 2.7 in |
| NEMA Receptacle Configuration | C13, C19, NEMA L6-30R |
| Voltage | 208V |
| Hz | 50/60 Hz |
| Circuit Breaker | Yes |

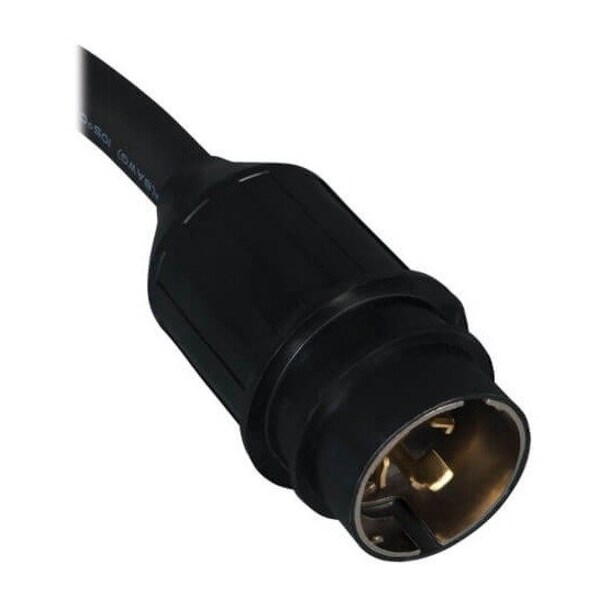

| NEMA Plug Configuration | HUBBELL CS8365C 50A |
| Housing Material | Metal |
| Mounting Style | Vertical Rackmount/0U |
| Metered | Yes |
| Frequency | 50/60 Hz |
| Features | Set of 3 Digital Meters |
| Watts | 14.4kW (208V) |
| Input Voltage | 230 V AC |
| Product Name | Metered PDU3MV6H50A 45-Outlets PDU |
| Plug/Connector Type | Hubbell CS8365C |
| Protection Type | Overload Protection |
| Product Series | Metered |
| TAA Compliant | Yes |
| Package Contents | Metered PDU3MV6H50A 45-Outlets PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual |
| Mount Type | Rack-mountable |
| Output Voltage | 208 V AC |

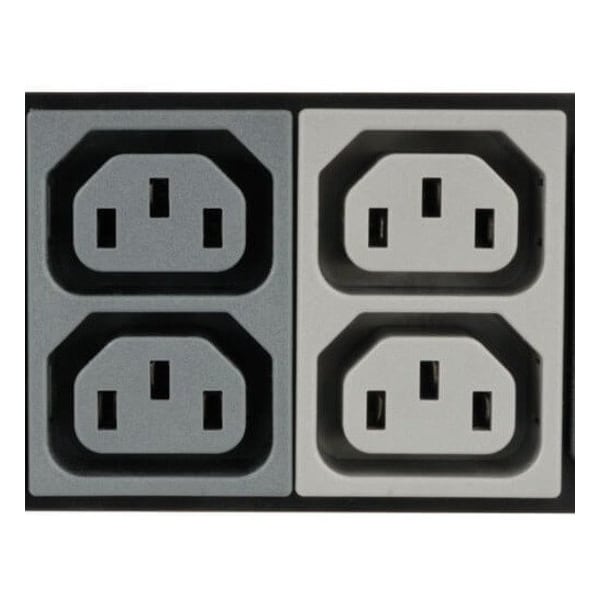

| Receptacle Detail | 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA L6-30R |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 14.4 kW |
| Product Type | PDU |
| Output Receptacles | C13, C19, L6-30R |
| Reported Load Segments | Supports local monitoring of current for each output phase combination (30A max: L1-L2; 20A max: L2-L3 & L3-L1); Outlets are color-coded and labeled for easy phase and load bank identification; L1-L2 feeds black outlets; L2-L3 feeds dark-gray outlets; L3-L1 feeds light-gray outlets |
| Operating Elevation (ft.) | 0-10,000 |
| Product Certifications | RETIE (Colombia); NOM (Mexico); UL 62368-1 |

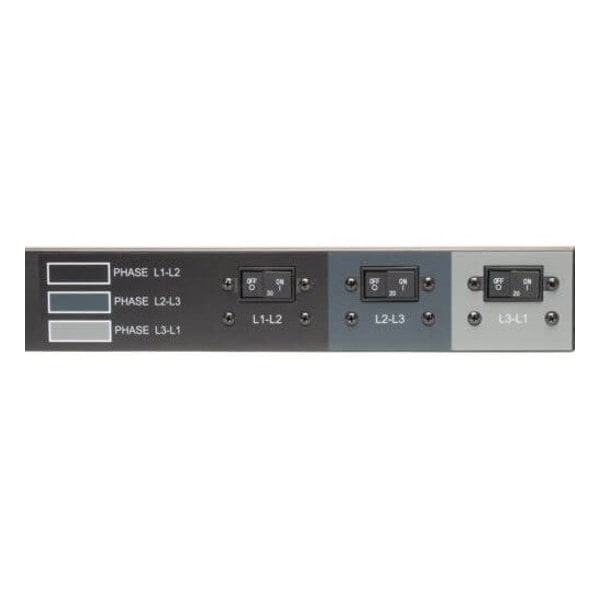

| Overload Protection | Three circuit breakers protect each outlet bank (30A: L1-L2; 20A: L2-L3; 20A: L3-L1) |
| PDU Input Voltage | 208 |
| Storage Temperature Range | -22° to 140°F (-30° to 60°C) |
| Maximum Input Amps | 40 |
| PDU Type | Local Metered |
| Recommended Electrical Service | Three-phase 50A 208V service |

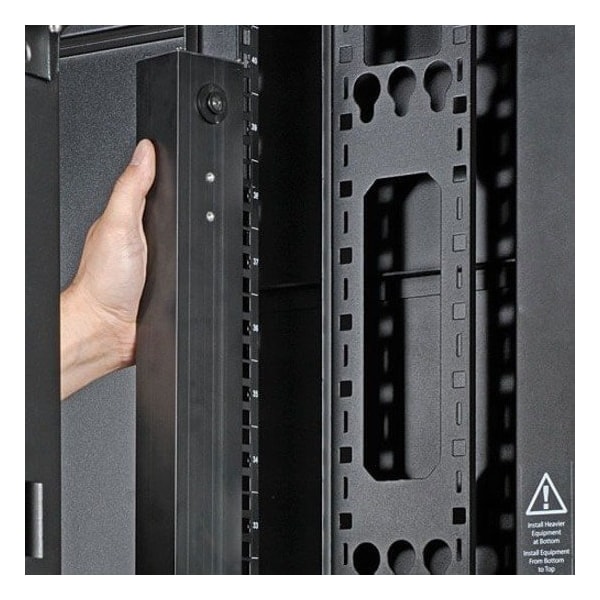

| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |

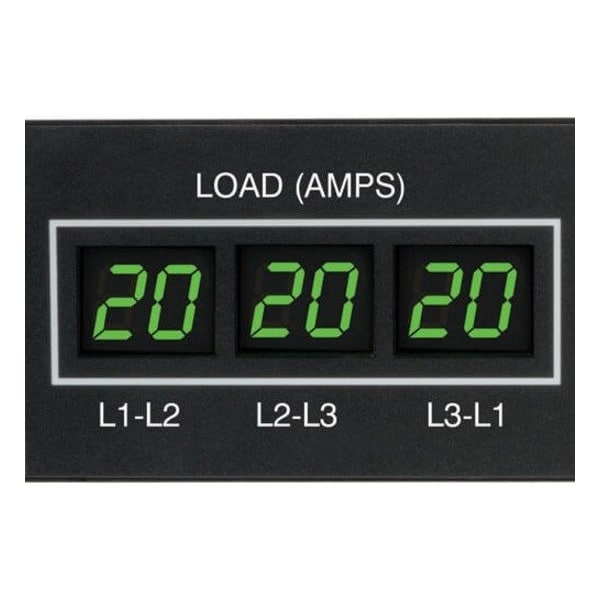

| Front Panel LCD Display | Set of 3 digital current meters report current in amps for each output phase |
| Input Phase | 3-Phase |
| Output Nominal Voltage | 208V |
| Output Capacity Details | 14.4kW (208V) total capacity; 20A max output phases L2-L3 & L3-L1; 30A max output phase L1-L2; 24A max per L6-30R outlet; 16A max per C19 outlet; 12A max per C13 outlet |
| Unit Dimensions (hwd / in.) | 70 x 2.2 x 2.65 |
| Input Cord Length (ft.) | 6 |
| PDU Form Factor | Vertical |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Frequency Compatibility | 50 / 60 Hz |
| PDU Plug Type | HUBBELL CS8365C 50A |
| Material of Construction | Metal |
| Package Includes | Local Metered PDU with pre-installed mounting buttons;Cord retention brackets;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Relative Humidity | 5% to 95% non-condensing |
| Package Quantity | 1 |
