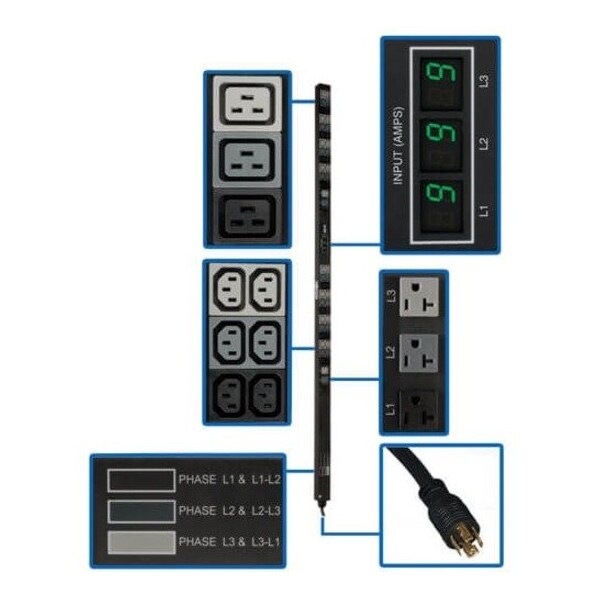

PDU, 3-Ph, Metered, 5.7kW, C13/19, 5-15/20, 0U
| Item | 3-Phase Metered PDU |
|---|---|
| Number of Outlets | 48 |
| Cord Length | 1.83 m |
| Standards | UL60950-1, NOM, Class A, TAA Compliant |
| Hz | 50/60 Hz |
| Voltage | 208V |
| Metered | Yes |
| Housing Material | Metal |
| NEMA Plug Configuration | NEMA L21-20P |
| NEMA Receptacle Configuration | C13, C19, NEMA 5-15/20R |
| Mounting Style | Vertical Rackmount/0U |
| Height | 70 in |
| Includes | Mounting Brackets |
| Phase | 3 |
| Depth | 2.2 in |
| Width | 1.9 in |
| Max. Amps | 16 |
| Frequency | 50/60 Hz |
| Features | Set of 3 Digital Meters |
| Watts | 5.7kW (208/120V) |
| Package Contents | Metered Rackmount PDU, Cord Retention Brackets, Rack Mounting Brackets, User Manual |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC, 208 V AC |
| Mounting Orientation | Vertical |

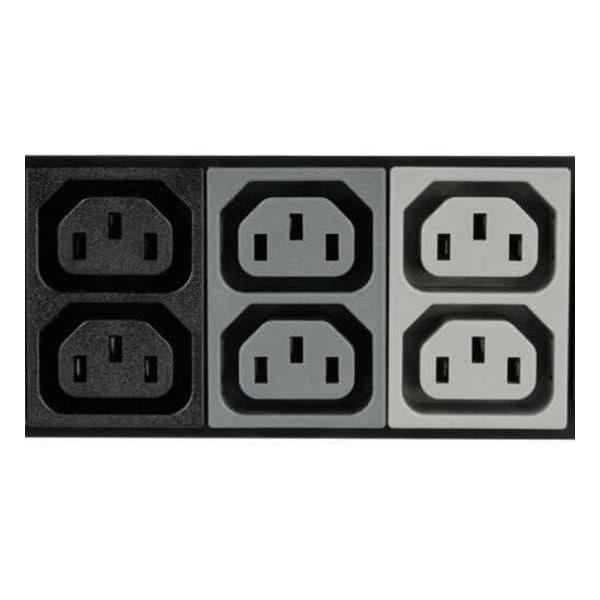

| Receptacle Detail | 6 x NEMA 5-15/20R, 36 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Product Type | PDU |
| Product Series | Metered |
| Mount Type | Rack-mountable |
| Plug/Connector Type | NEMA L21-20P |
| Product Name | 3-Phase Metered PDU |
| Power Rating (Watt) | 5,700 W |
| TAA Compliant | Yes |
| Product Certifications | RETIE (Colombia); NOM (Mexico); UL 62368-1 |

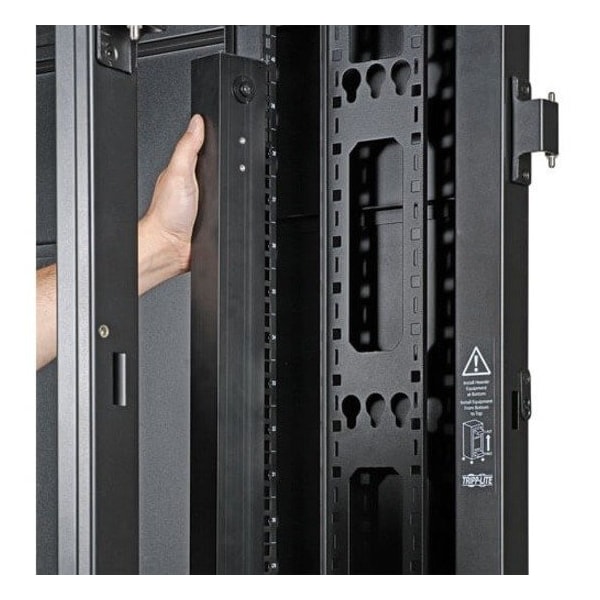

| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |

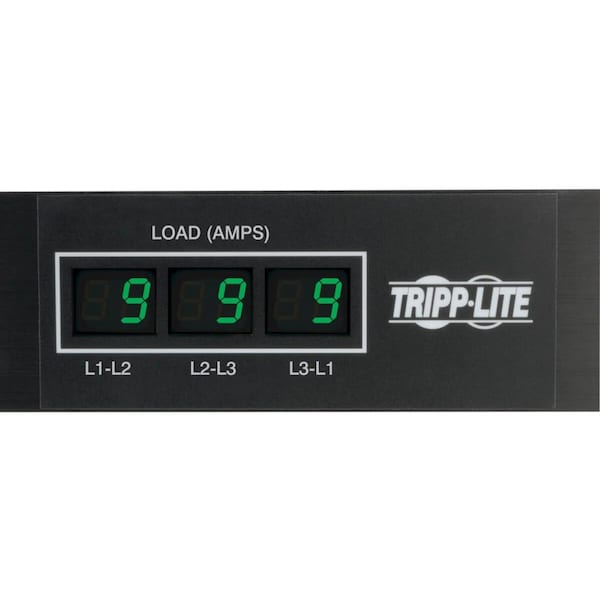

| Front Panel LCD Display | Set of 3 digital current meters report input current per phase |
| Output Receptacles | C13, C19, 5-15/20R |
| Input Cord Length (ft.) | 6 |
| Package Includes | Local Metered Rackmount PDU with pre-installed mounting buttons;Cord retention brackets;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Recommended Electrical Service | Three-phase 20A 208V service |
| Output Receptacle Details | 5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output |
| Operating Elevation (ft.) | 0-10,000 |
| PDU Type | Local Metered |
| Material of Construction | Metal |
| Maximum Input Amps | 16 |
| Input Phase | 3-Phase |
| PDU Input Voltage | 208 |

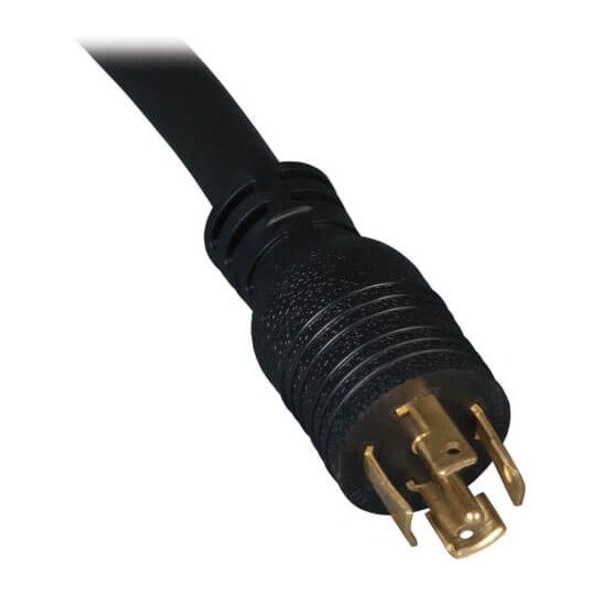

| PDU Plug Type | NEMA L21-20P |
| Output Nominal Voltage | 208/120V |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |

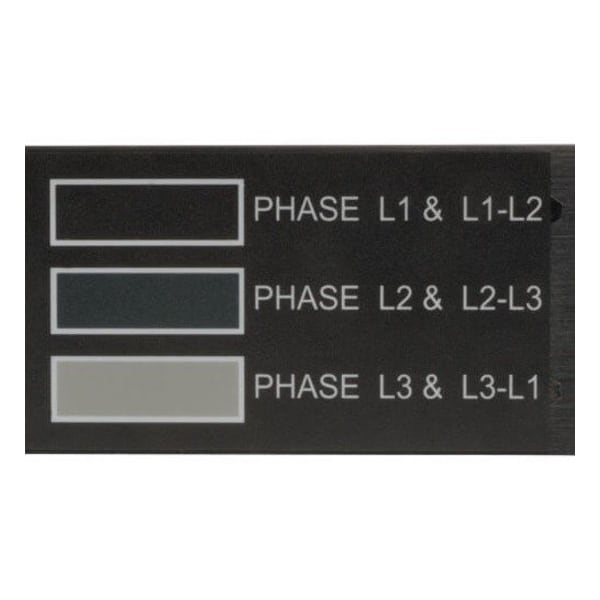

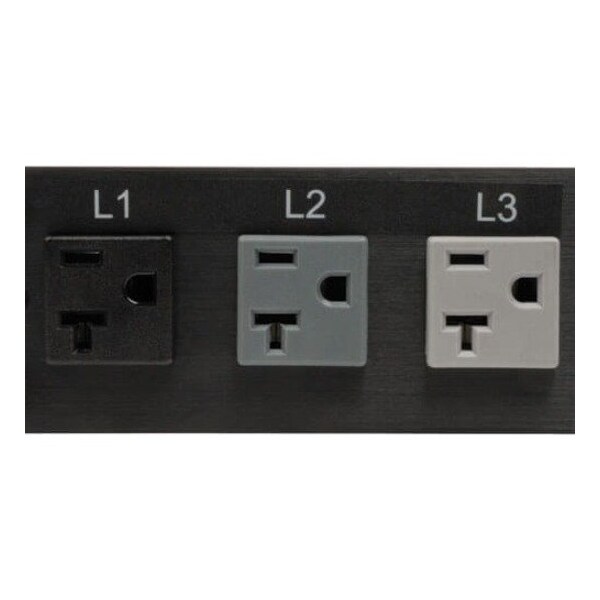

| Reported Load Segments | Supports monitoring of input current per phase (9.2A balanced max. per L1, L2 and L3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets; L2-L3 feeds dark-gray C13/C19 outlets; L3-L1 feeds light-gray C13/C19 outlets; L1-N feeds black 5-20R outlets; L2-N feeds dark-gray 5-20R outlets; L3-N feeds light-gray 5-20R outlets |
| Unit Dimensions (hwd / in.) | 70 x 2.2 x 1.93 |
| PDU Form Factor | Vertical |
| Frequency Compatibility | 50 / 60 Hz |
| Storage Temperature Range | -22° to 140°F (-30° to 60°C) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Output Capacity Details | 5.7kW (208/120V) total capacity; 9.2A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3) |
| Package Quantity | 1 |
