PDU, 3-Ph, Monitored, 10kW 3, 42 C13, 6C19, 0U
| Item | 3-Phase Monitored PDU |
|---|---|
| Number of Outlets | 48 |
| Cord Length | 1.83 m |
| Standards | TAAUL60950-1 (USA) CAN60950-1 (Canada)NOM (Mexico), Class A (Emissions) |
| NEMA Plug Configuration | NEMA L15-30P |
| Green Environmental Attribute | Yes |
| Circuit Breaker | Yes |
| NEMA Receptacle Configuration | C13, C19 |
| Height | 70 in |
| Depth | 2.9 in |
| Housing Material | Metal |
| Power Indicator | Yes |
| Max. Amps | 24 |
| Width | 2.2 in |
| Voltage | 208/240V |
| Includes | Monitored rackmount PDU with Pre-installed Mounting ButtonsSpare Installation Buttons (2 9mm / 4 6mm)Rack Mounting BracketsOwner's Manual |
| Mounting Style | Vertical Rackmount/0U |
| Frequency | 50/60 Hz |
| Mouting Style | Rack-mountable |
| Green Certification or Other Recognition | RoHS |
| Receptacle Detail | 42 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Product Type | PDU |
| Protection Type | Overload Protection |

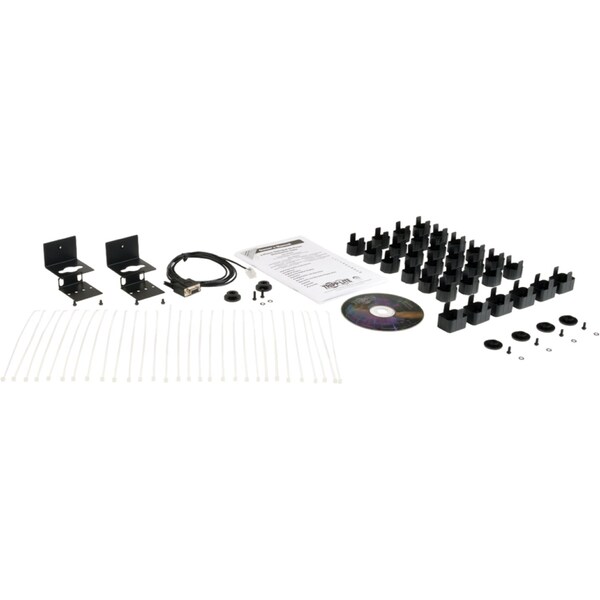

| Package Contents | Monitored rackmount PDU with Pre-installed Mounting Buttons, Spare Installation Buttons (2 9mm / 4 6mm), Rack Mounting Brackets, Owner's Manual |
| Input Voltage | 230 V AC |
| Power Rating (Watt) | 10 kW |
| PDU Type | Monitored |
| Mounting Orientation | Vertical |
| Rack Height | 0 U |

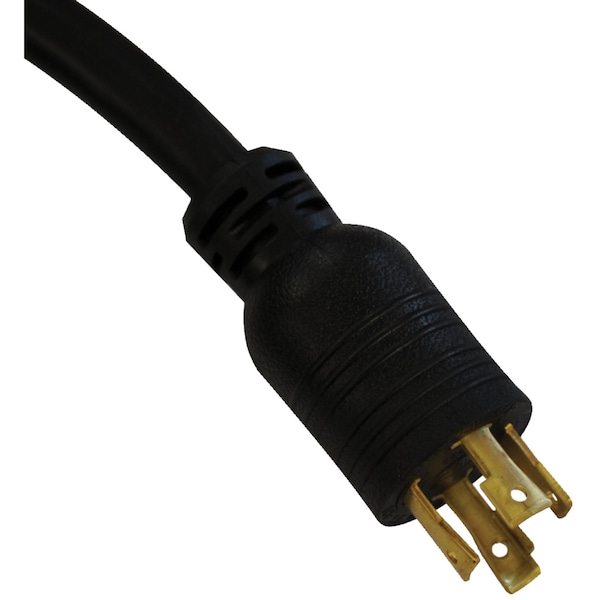

| Plug/Connector Type | NEMA L15-30P |
| Certifications & Standards | TAA, UL60950-1 (USA) CAN60950-1 (Canada), NOM (Mexico), , Class A (Emissions) |
| Product Name | Monitored rackmount PDU with Pre-installed Mounting Buttons |
| Output Voltage | 230 V AC, 240 V AC, 208 V AC, 200 V AC, 220 V AC |
| TAA Compliant | Yes |
| Input Current | 30 A |
| Mount Type | Rack-mountable |
| Output Capacity Details | 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks |

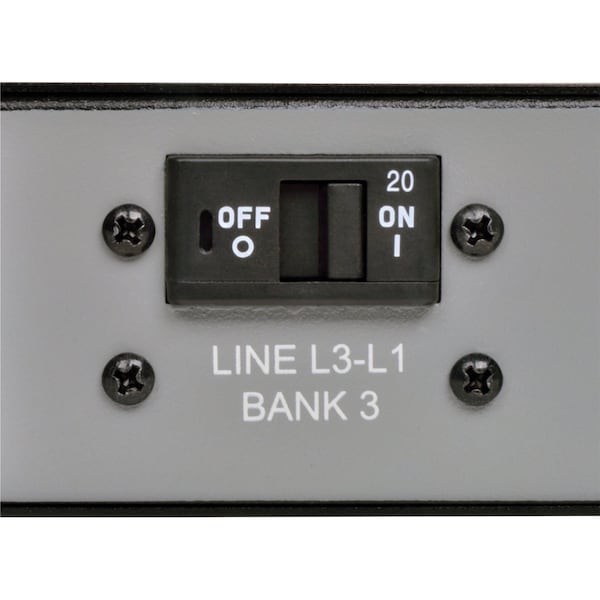

| Overload Protection | 3 20A circuit breakers, one per output load bank |
| Package Includes | Monitored rackmount PDU with pre-installed mounting buttons;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Output Nominal Voltage | 200; 208; 240 |
| PDU Form Factor | Vertical |
| Material of Construction | Metal |
| Operating Temperature Range | 32 to 122F (0C to 50C) |
| Maximum Input Amps | 24 |

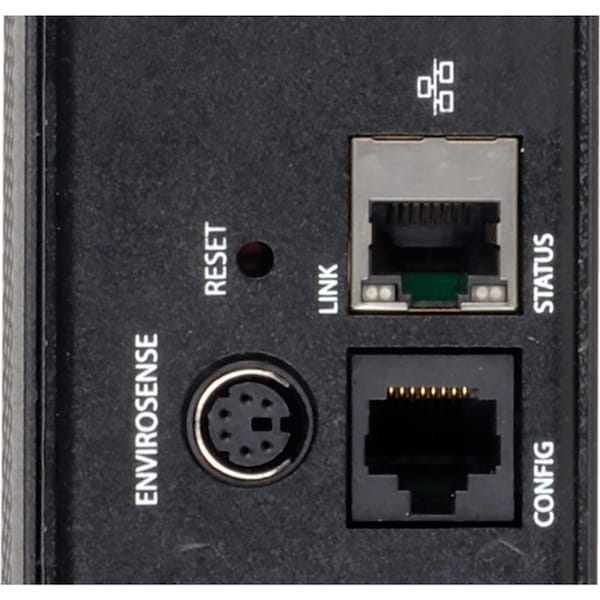

| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Relative Humidity | 5 to 95% (non condensing) |
| Operating Elevation (ft.) | 0-10,000 |
| Input Phase | 3-Phase |
| Recommended Electrical Service | 30A 208/240V with L15-30R outlet |
| Voltage Measurement Accuracy (Volts) | +/-1% |
| Frequency Compatibility | 50 / 60 Hz |
| PDU Plug Type | NEMA L15-30P |
| Output Receptacles | C13, C19 |
| Current Measurement Accuracy (Amps) | +/-1% |
| Input Cord Length (ft.) | 6 |
| Storage Temperature Range | 5 to 140 F |
| Power Measurement Accuracy (Watts) | +/-1% |
| Switches | Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement |

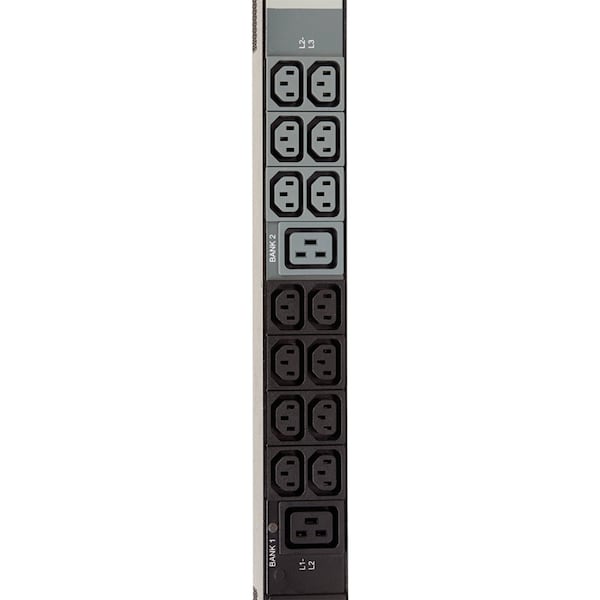

| Reported Load Segments | Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3) |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.86 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |

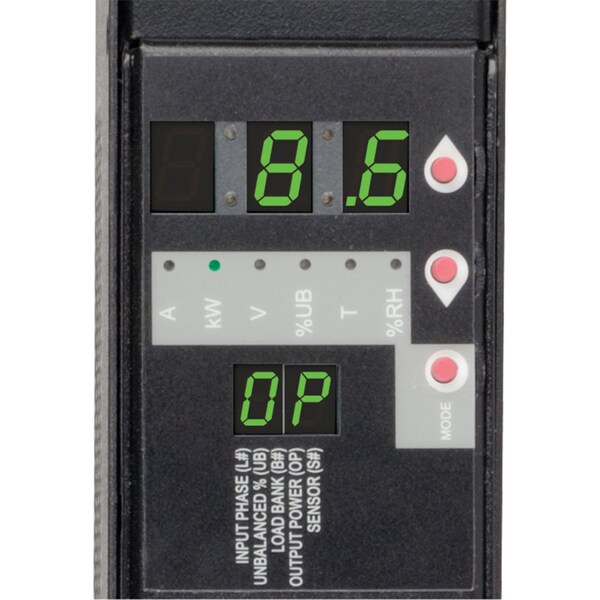

| Front Panel LCD Display | Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP) |
| Front Panel LEDs | Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip) |
| Package Quantity | 1 |
