PDU, 3-Ph, Monitored, 18.7kW, 36 C13, 0U
| Item | 3-Phase Monitored PDU |
|---|---|
| Number of Outlets | 36 |
| Cord Length | 1.83 m |
| NEMA Plug Configuration | IEC-309 60A BLUE (3P+E) |
| Mounting Style | Vertical Rackmount/0U |
| Power Indicator | Yes |
| Width | 2.2 in |
| Depth | 2-1/2 in |
| Housing Material | Metal |
| Max. Amps | 45 |
| Voltage | 200/208/240V |
| Height | 70 in |
| NEMA Receptacle Configuration | C13 |
| Frequency | 50/60 Hz |
| Power Rating (Watt) | 18.7 kW |
| Product Series | Monitored |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Mounting Orientation | Vertical |
| Input Voltage | 230 V AC |
| Package Contents | Monitored Rackmount PDU with Pre-Installed Mounting Buttons , 36x C13/C14 Plug-lock cable retention sleeves, Spare installation buttons (2 9mm / 4 6mm), Rack mounting brackets, Owner's manual |
| Product Name | Monitored Rackmount PDU with Pre-Installed Mounting Buttons |
| PDU Type | Monitored |
| Mount Type | Rack-mountable |
| Input Voltage Range | 200 AC to 240 V AC |

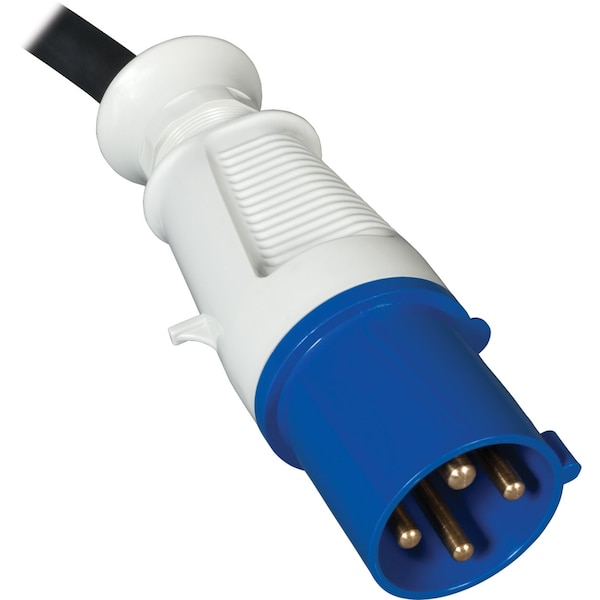

| Plug/Connector Type | IEC 60309 60A BLUE |
| Product Type | PDU |
| Rack Height | 0 U |
| Input Current | 45 A |
| Relative Humidity | 5 to 95% (non condensing) |
| Output Capacity Details | 18.7kW (240V), 17.9kW (230V), 17.1 (220V), 16.2 (208V), 15.6kW (200V) total capacity; 26A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 12A max per C13 outlet |
| PDU Plug Type | IEC-309 60A BLUE |
| Voltage Measurement Accuracy (Volts) | +/-1% |

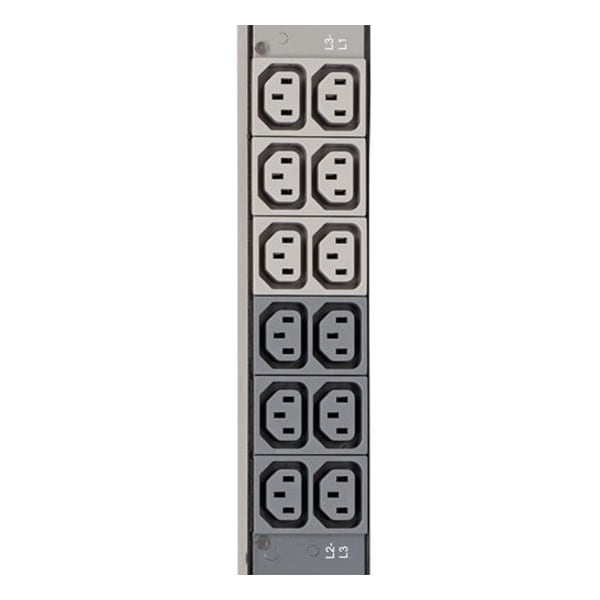

| Reported Load Segments | Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1 & B4); L2-L3 feeds dark-gray outlets (B2 & B5); L3-L1 feeds light-gray outlets (B3 & B6) |

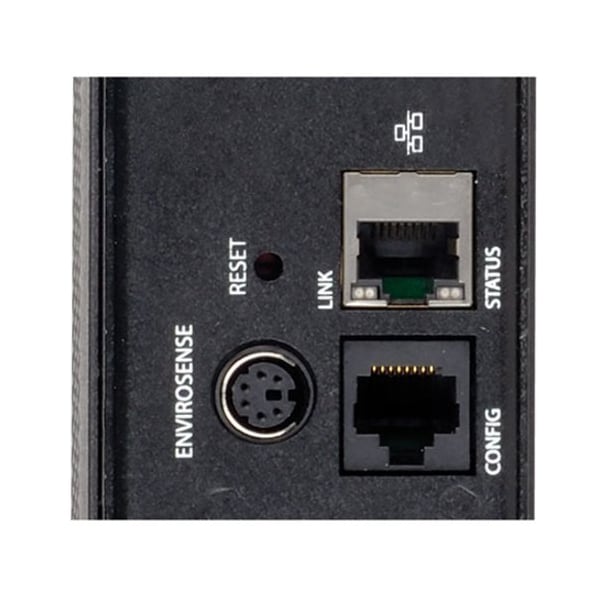

| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Front Panel LEDs | Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B6) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip) |
| Output Nominal Voltage | 200; 208; 240 |
| PDU Form Factor | Vertical |
| Material of Construction | Metal |
| Input Phase | 3-Phase |
| Maximum Input Amps | 45 |
| Operating Elevation (ft.) | 0-10,000 |
| Output Receptacles | C13 |
| Storage Temperature Range | 5 to 140 F |
| Power Measurement Accuracy (Watts) | +/-1% |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Recommended Electrical Service | 60A 208/240V with IEC309 60A Blue (3P+E) outlet |
| Input Cord Length (ft.) | 6 |

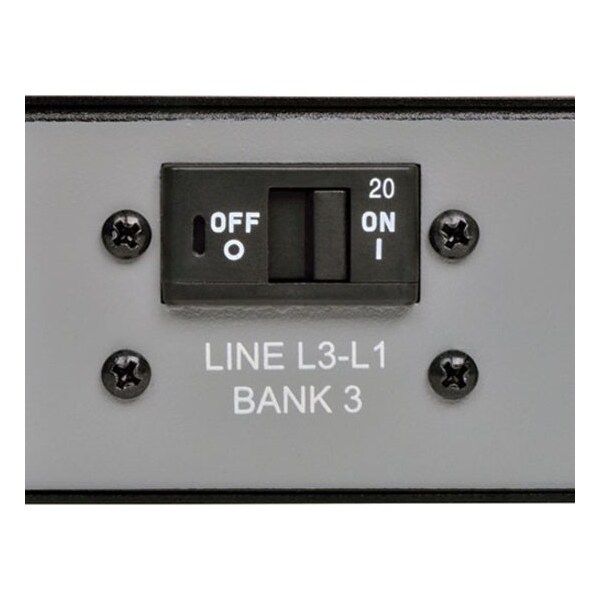

| Overload Protection | 6 20A circuit breakers, 1 per outlet bank |
| Current Measurement Accuracy (Amps) | +/-1% |

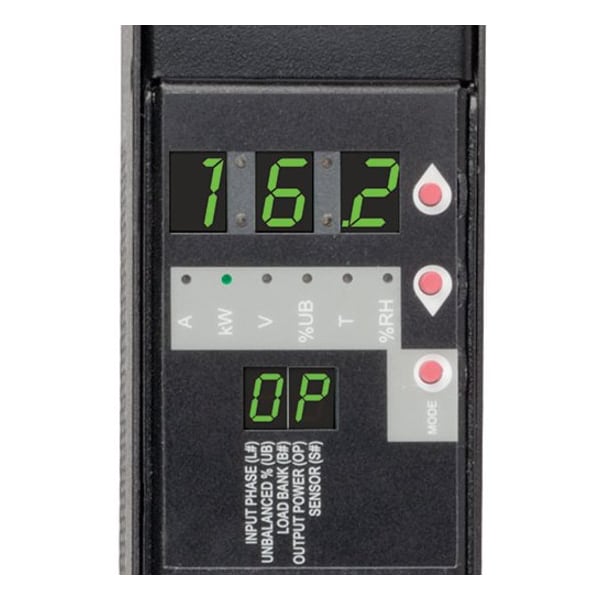

| Front Panel LCD Display | Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP) |
| Operating Temperature Range | 32 to 122F (0C to 50C) |
| Switches | Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement |
| Frequency Compatibility | 50 / 60 Hz |
| Package Includes | Monitored rackmount PDU with pre-installed mounting buttons;36 C13/C14 Plug-lock cable retention sleeves;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.49 |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| SNMP Compatibility | Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems |
| Package Quantity | 1 |
