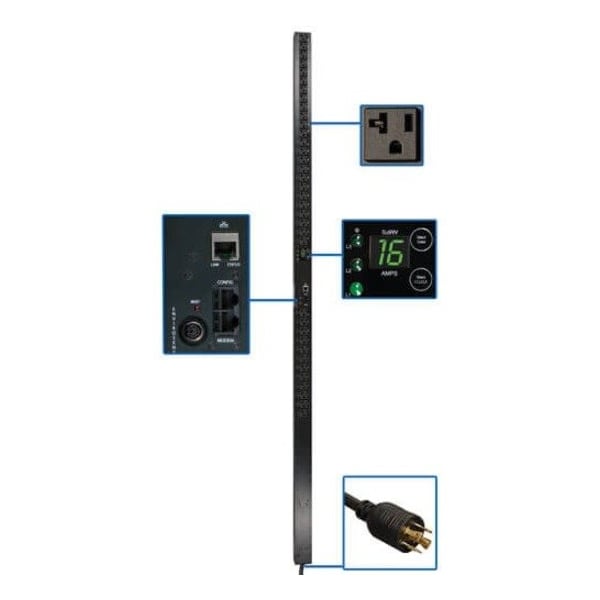

PDU, 3-Ph, Monitored, 5.7kW, 36 5-15/20R, 0U
| Item | 3-Phase Monitored PDU |
|---|---|
| Type | Monitored |
| Number of Outlets | 36 |
| Cord Length | 3.05 m |
| Standards | UL60950-1, NOM, Class A, TAA Compliant |
| Width | 2.2 in |

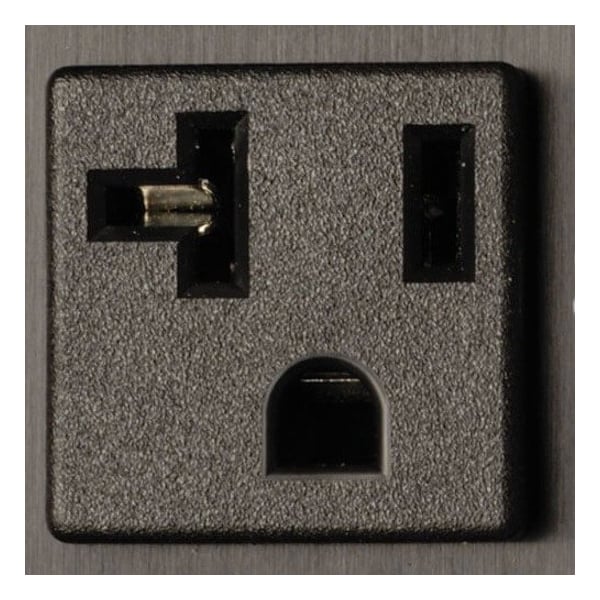

| NEMA Receptacle Configuration | NEMA 5-15/20R |
| Hz | 50/60 Hz |
| Max. Amps | 16 |
| Housing Material | Metal |
| Voltage | 208V |
| Height | 70 in |
| Metered | Yes |
| Phase | 3 |
| Depth | 3.3 in |
| Power Indicator | Yes |

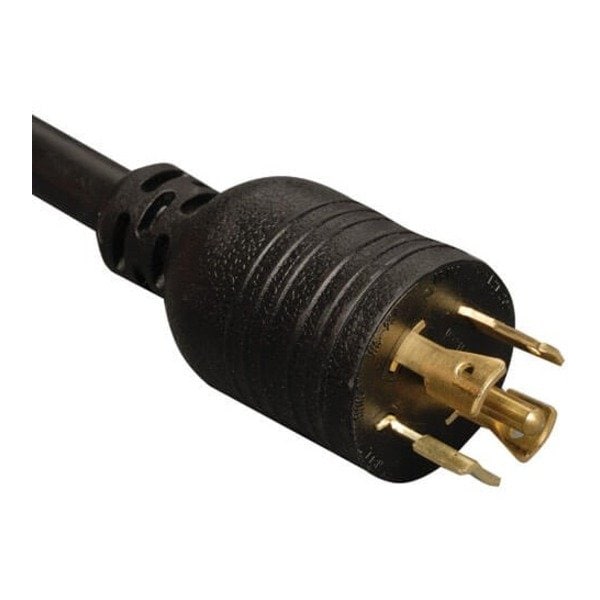

| NEMA Plug Configuration | NEMA L21-20P |
| Includes | Mounting Brackets |
| Mounting Style | Vertical Rackmount/0U |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Watts | 5.7kW (120V) |
| Product Type | PDU |
| Package Contents | Monitored PDU3VN10L2120LV 36-Outlets 5.7kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual |
| TAA Compliant | Yes |
| PDU Type | Monitored |
| Product Name | Monitored PDU3VN10L2120LV 36-Outlets 5.7kW PDU |
| Product Series | Monitored |
| Output Voltage | 120 V AC |
| Mount Type | Rack-mountable |
| Input Voltage | 230 V AC |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Detail | 36 x NEMA 5-15/20R |
| Power Rating (Watt) | 5,700 W |
| Mounting Orientation | Vertical |
| Current Measurement Accuracy (Amps) | +/-1% |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Maximum Input Amps | 16 |
| Package Includes | Monitored rackmount PDU with pre-installed mounting buttons;Cord retention brackets;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Reported Load Segments | Supports local monitoring of current for each output phase (16A max per L1, L2, L3); BANK "L1" is powered by L1-N; BANK "L2" is powered by L2-N; BANK "L3" is powered by L3-N |
| Recommended Electrical Service | Three-phase 20A 208V service |
| Power Measurement Accuracy (Watts) | +/-1% |
| Operating Elevation (ft.) | 0-10,000 |
| PDU Plug Type | NEMA L21-20P |
| Material of Construction | Metal |
| Input Phase | 3-Phase |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Output Capacity Details | 5.7kW (120V) total capacity / 16A max per output phase (L1, L2, L3); 16A max per outlet |
| Frequency Compatibility | 50 / 60 Hz |
| Switches | SELECT switch advances the digital display and LED to report power consumption for load segments L1, L2 and L3; Press and hold the SELECT switch to rotate the digital display 90 degrees for overhead power input; Press and hold the SCROLL IP button to scroll the configured IP address |

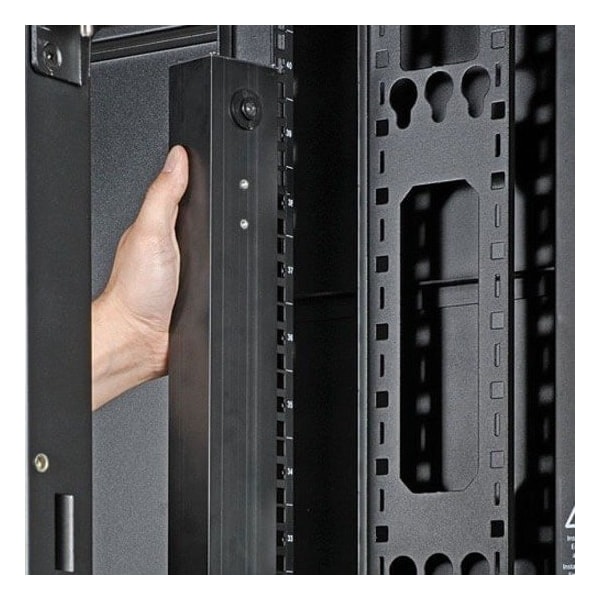

| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Unit Dimensions (hwd / in.) | 70 x 1.75 x 2.2 |
| Voltage Measurement Accuracy (Volts) | +/-1% |
| Front Panel LCD Display | Digital display reports output load level in amps separately for each output phase; Can also be used to scroll the configured IP address |
| High Availability PDU Features | Remote Network Notifications |
| Input Cord Length (ft.) | 10 |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Product Certifications | NOM (Mexico); UL 60950-1 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| PDU Form Factor | Vertical |
| Output Nominal Voltage | 120V |
| Output Receptacles | 5-15/20R |
| Relative Humidity | 5% to 95% non-condensing |
| PDU Input Voltage | 208 |

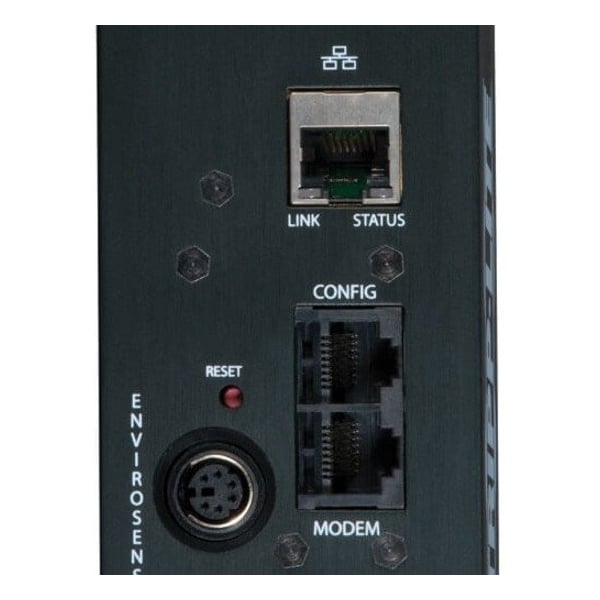

| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Front Panel LEDs | Set of 3 LEDs (L1, L2, L3) indicate the output load segment the digital current display is reporting |
| Package Quantity | 1 |
