PDU, 3-Ph, Monitored, 8.6kW, C13/19, 5-15R, 0U
| Item | 3-Phase Monitored PDU |
|---|---|
| Number of Outlets | 45 |
| Cord Length | 0.91 m |
| Max. Amps | 24 |
| Width | 2.2 in |
| Housing Material | Metal |
| Height | 70 in |
| Phase | Three Phase |

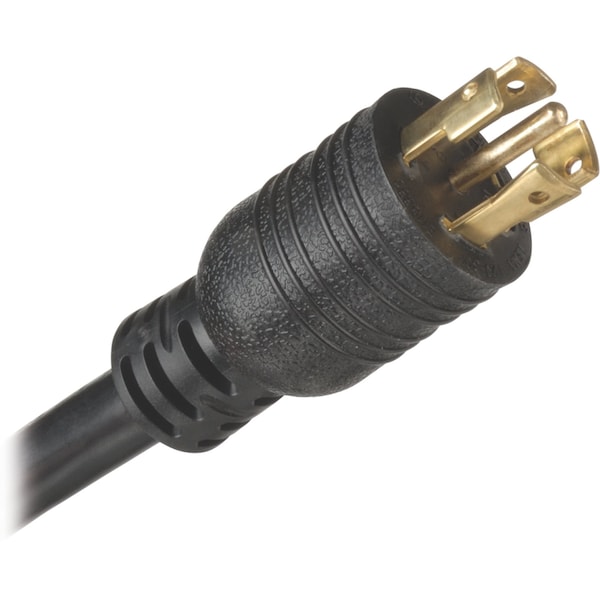

| NEMA Plug Configuration | NEMA L21-30P |
| Depth | 3.3 in |
| NEMA Receptacle Configuration | NEMA 5-15/20R, NEMA C13; C19 |
| Voltage | 208V |
| Power Indicator | Yes |
| Mounting Style | Vertical Rackmount/0U |
| Frequency | 50/60 Hz |
| Power Rating (Watt) | 8,600 W |
| Product Type | PDU |
| Package Contents | Monitored PDU3VN3L2130 36-Outlets 8.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual |
| Receptacle Detail | 6 x IEC 60320 C19, 3 x NEMA 5-15/20R, 36 x IEC 60320 C13 |
| Output Voltage | 208 V AC |
| Product Name | Monitored PDU3VN3L2130 45-Outlets 8.6kW PDU |
| Mounting Orientation | Vertical |
| Input Voltage | 230 V AC |
| PDU Type | Monitored |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L21-30P |
| Mount Type | Rack-mountable |
| Product Series | Monitored |
| Output Receptacles | C13, C19, 5-15/20R |
| PDU Plug Type | NEMA L21-30P |
| Current Measurement Accuracy (Amps) | +/-1% |
| Output Receptacle Details | 5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Output Nominal Voltage | 120; 208 |
| Front Panel LEDs | Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); 3 additional multi-color LEDs offer power availability information for each pair of output load banks (Bank 1&4 / Bank 2&5 / Bank 3&6): GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip) |
| PDU Form Factor | Vertical |
| Material of Construction | Metal |

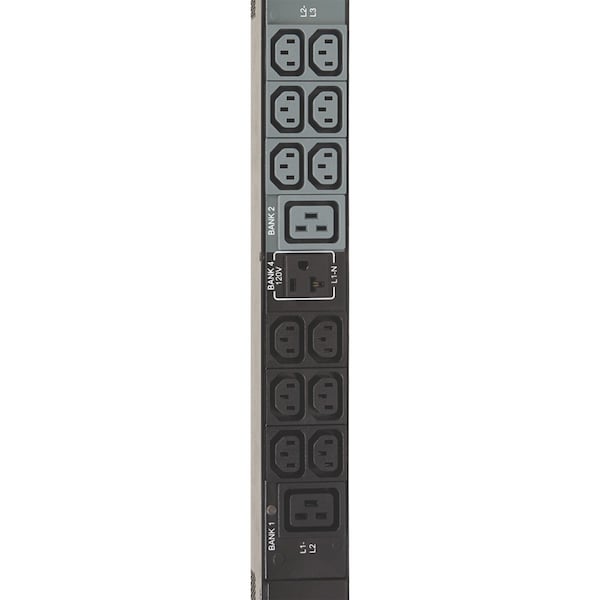

| Reported Load Segments | Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6) |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Power Measurement Accuracy (Watts) | +/-1% |
| Storage Temperature Range | -15°C to +50°C (+5°F to +122°F) |
| Input Phase | 3-Phase |

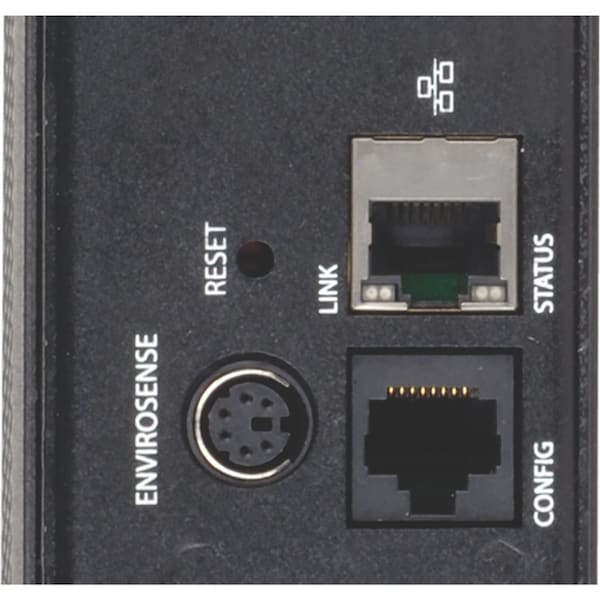

| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.52 |
| Relative Humidity | 5 to 95% (non condensing) |
| Maximum Input Amps | 24 |

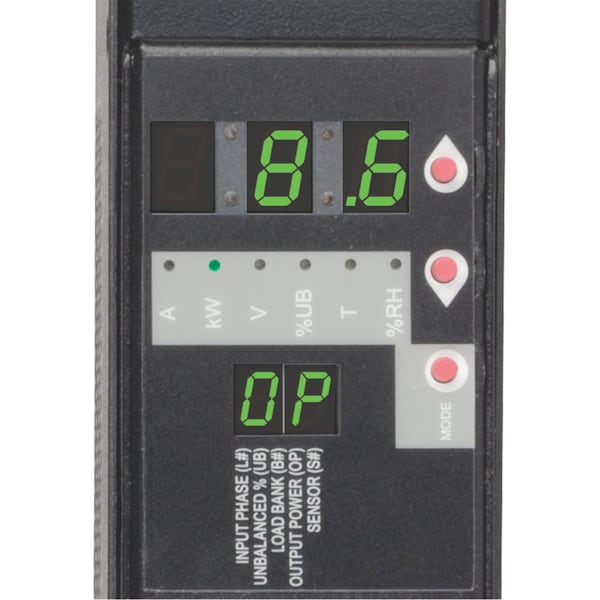

| Front Panel LCD Display | Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP) |
| Frequency Compatibility | 50 / 60 Hz |

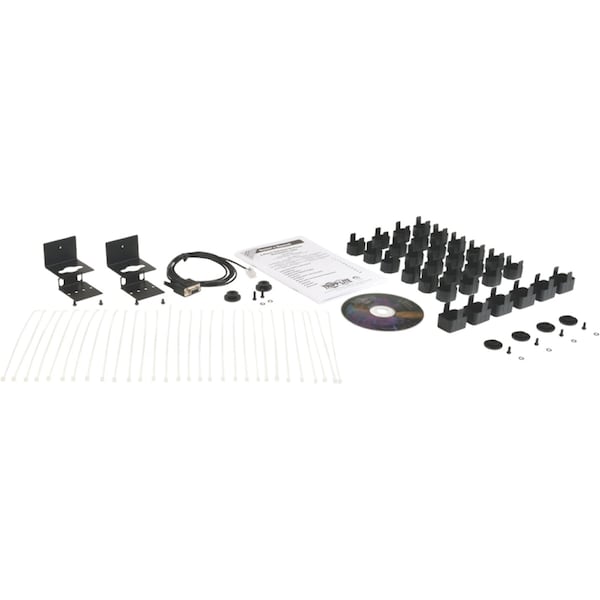

| Package Includes | PDU3VN3L2130 8.6kW 208/120V 3-Phase Monitored PDU, 3 ft. cord;(36) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;(3) NEMA 5-15/20R plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual |
| Output Capacity Details | 8.6kW (208V) total capacity; 13.9A max per output phase (L1-L2, L2-L3, L3-L1), 12A max per C13 outlet |
| Switches | Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement |
| Recommended Electrical Service | 30A 208V with L21-30R outlet |
| Input Cord Details | Cord length specifications are nominal and subject to manufacturing variance |
| Voltage Measurement Accuracy (Volts) | +/-1% |
| Operating Elevation (ft.) | 0-10,000 |

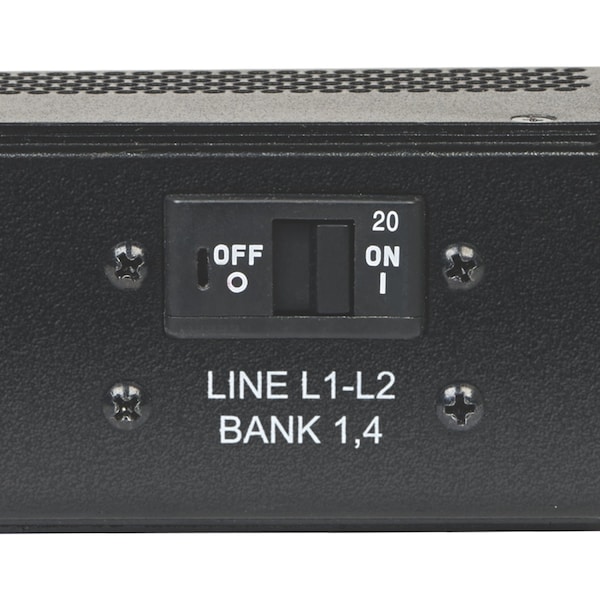

| Overload Protection | 3 20A circuit breakers, one per output load bank |
| Input Cord Length (ft.) | 3 |
| Package Quantity | 1 |
